Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat belt shoulder belt guide loop. Refer to SEAT BELT SYSTEM  in Seat Belts.
  2. Use the J 38778.

    Important: Use care to not brake the locating tabs on the quarter trim when removing the back body pillar trim.

  3. Remove the back body pillar trim from the vehicle.

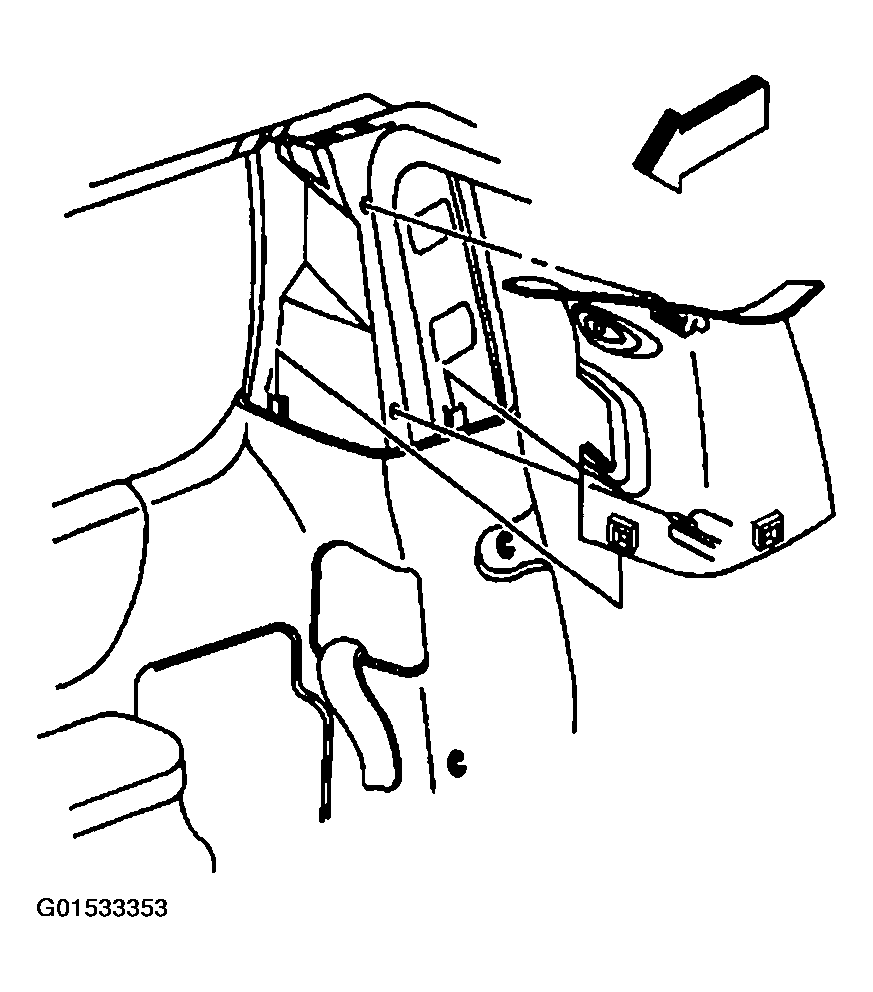

    Fig 1: Removing Back Body Pillar Trim From Vehicle (Rear Corner Upper)
    G01533353Courtesy of GENERAL MOTORS CORP.
