Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door sill plate. Refer to DOOR SILL PLATE REPLACEMENT (DOOR)   or DOOR SILL PLATE REPLACEMENT (SLIDING DOOR)   .
  2. Remove the side door sill plate. Refer to DOOR SILL PLATE REPLACEMENT (DOOR)   or DOOR SILL PLATE REPLACEMENT (SLIDING DOOR)   .
  3. Remove the body pillar upper trim panel. Refer to GARNISH MOLDING REPLACEMENT - UPPER PILLAR   .
  4. Remove the body pillar lower trim panel retainers using the J 38778.
  5. Remove the body pillar lower trim panel from the vehicle.

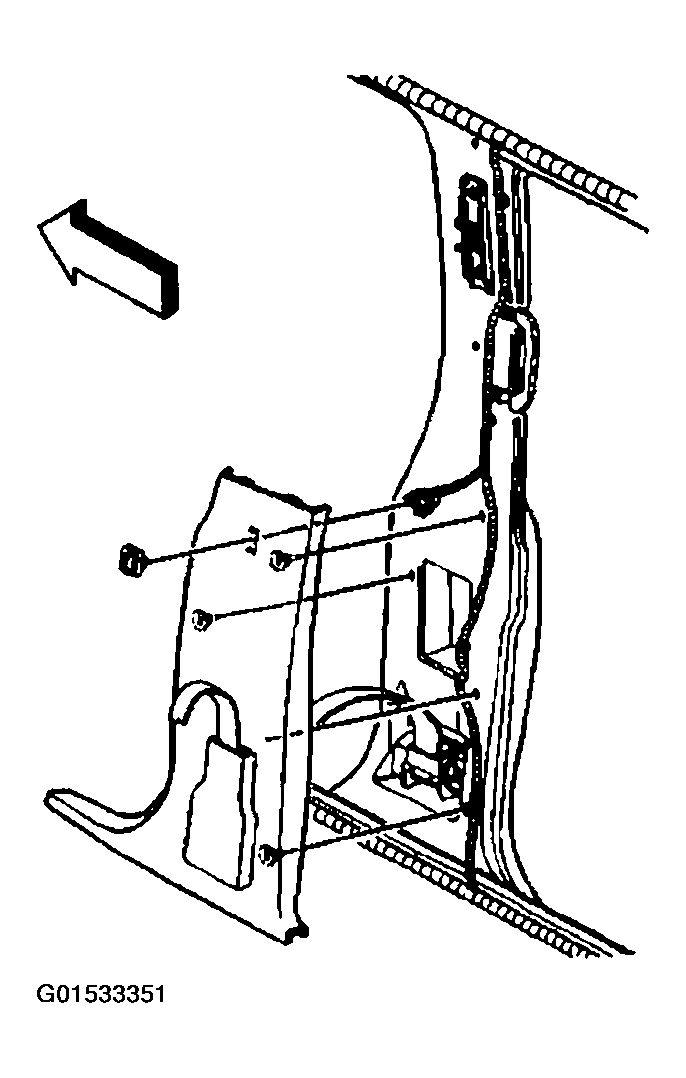

    Fig 1: Removing Body Pillar Lower Trim Panel From Vehicle
    G01533351Courtesy of GENERAL MOTORS CORP.
