Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the body pillar lower trim panel from the vehicle.
  2. Install the body pillar lower trim panel retainers by aligning the retainers with the holes and pushing in on the retainers to secure.
  3. Install the body pillar upper trim panel. Refer to GARNISH MOLDING REPLACEMENT - UPPER PILLAR   .
  4. Install the side door sill plate. Refer to DOOR SILL PLATE REPLACEMENT (DOOR)   or DOOR SILL PLATE REPLACEMENT (SLIDING DOOR)   .
  5. Install the side door sill plate. Refer to DOOR SILL PLATE REPLACEMENT (DOOR)   or DOOR SILL PLATE REPLACEMENT (SLIDING DOOR)   .
  6. Install door opening seals to edges of body pillar lower trim panel.

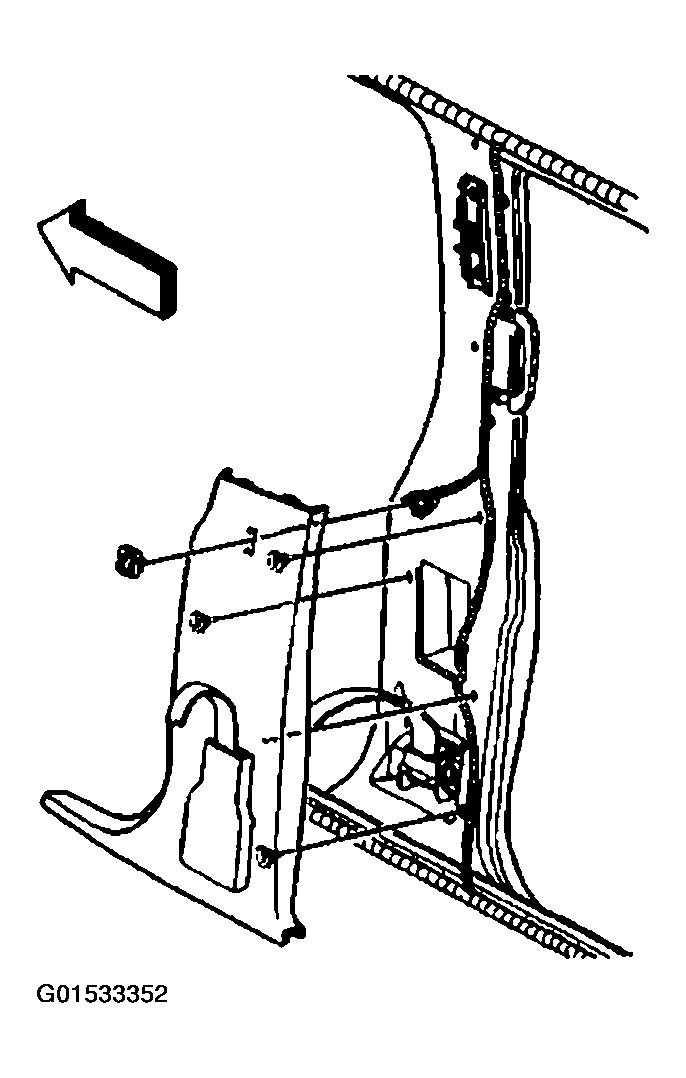

    Fig 1: Installing Body Pillar Lower Trim Panel To Vehicle
    G01533352Courtesy of GENERAL MOTORS CORP.
