Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat belt shoulder belt guide loop. Refer to SEAT BELT SYSTEM  in Seat Belts.
  2. Remove the body pillar upper trim panel retainers using the J 38778.
  3. Remove the body pillar upper trim panel by pulling the panel from the locator tabs.

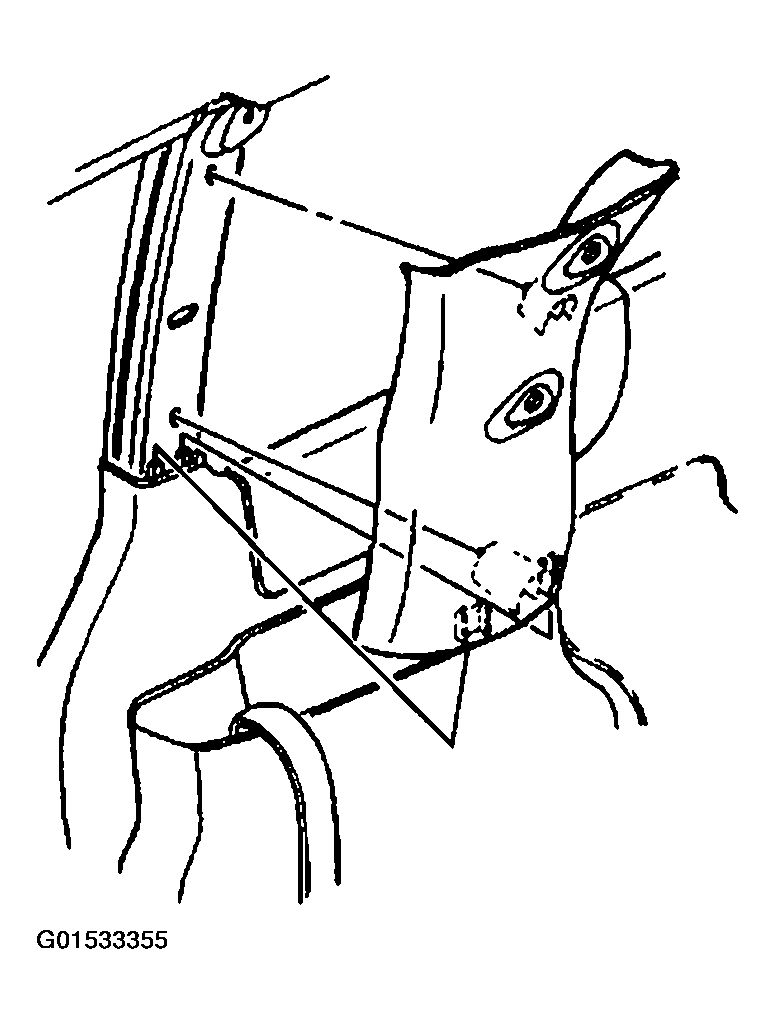

    Fig 1: Removing Body Pillar Upper Trim Panel (Body Side Rear Upper)
    G01533355Courtesy of GENERAL MOTORS CORP.
