Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the locator tabs on the body pillar upper trim panel with rear quarter trim panel.
  2. Align the body pillar trim panel retainers with the holes and push to secure the panel to the vehicle.
  3. Install the seat belt shoulder belt guide loop. Refer to SEAT BELT SYSTEM  in Seat Belts.

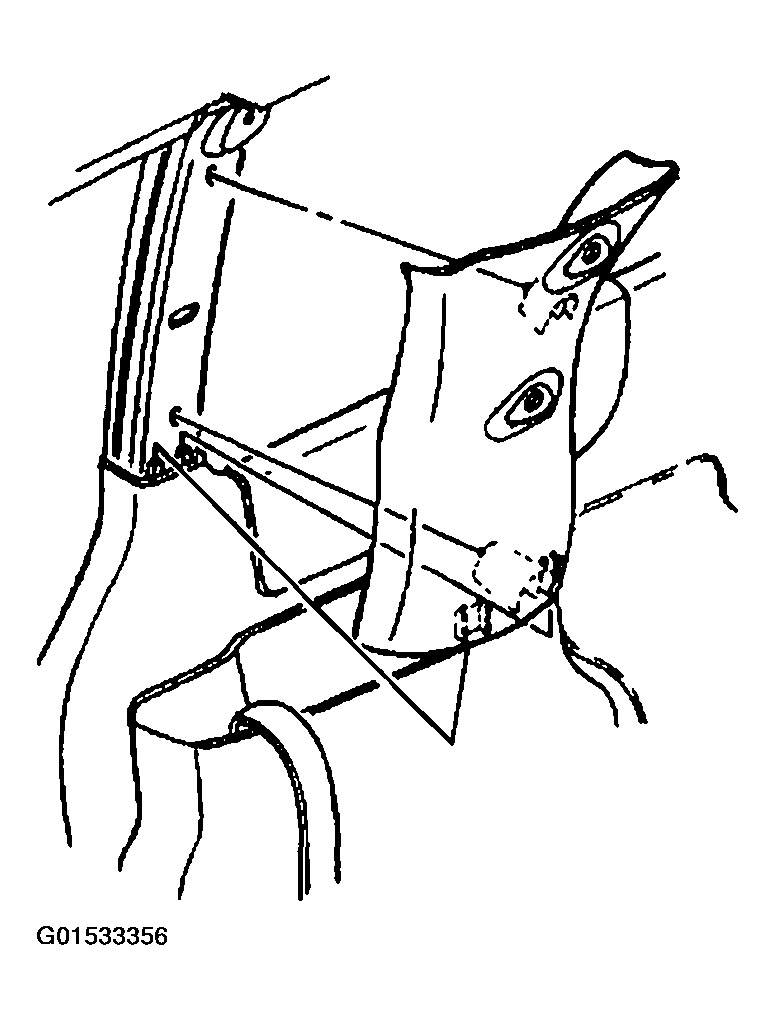

    Fig 1: Installing Body Pillar Upper Trim Panel (Body Side Rear Upper)
    G01533356Courtesy of GENERAL MOTORS CORP.
