Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the overhead console bracket to the roof.
  2. Install the overhead console bracket to the roof until secure.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the screws to the overhead console bracket.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  4. Install the overhead console. Refer to CONSOLE REPLACEMENT - OVERHEAD (SINGLE)   or CONSOLE REPLACEMENT - OVERHEAD (DUAL)   or CONSOLE REPLACEMENT - OVERHEAD (CF5)   .

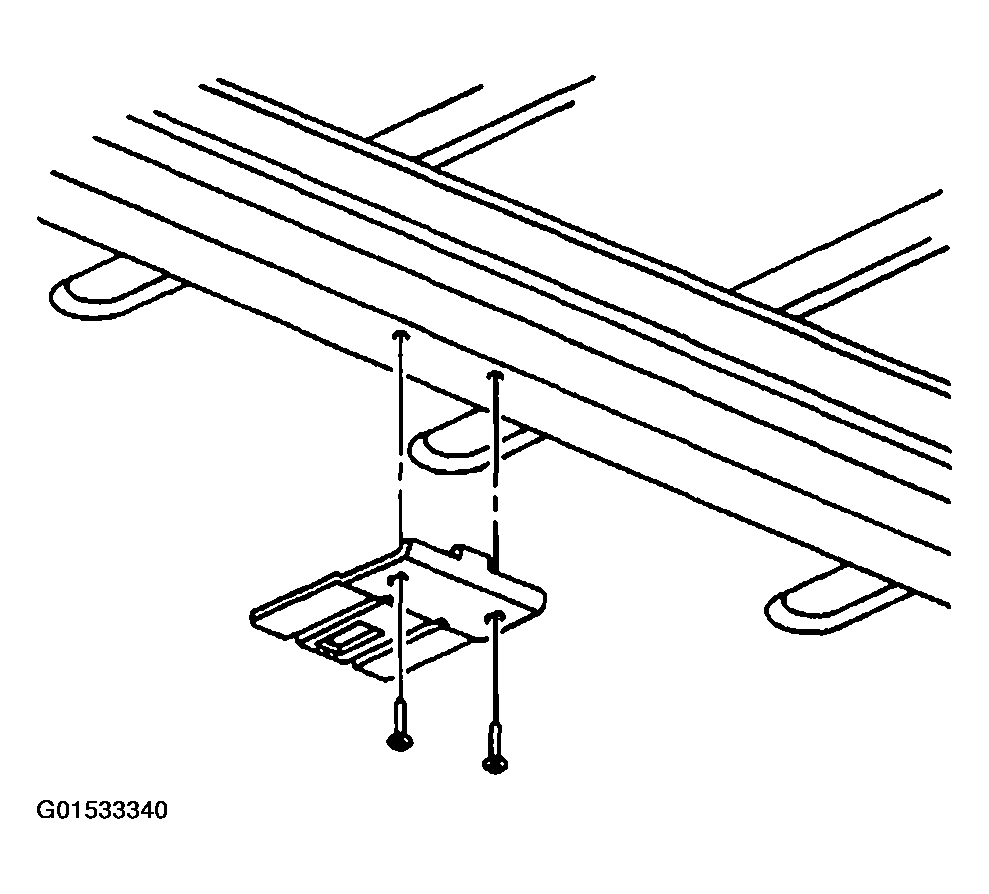

    Fig 1: Installing Overhead Console Bracket To Roof (Single Storage)
    G01533340Courtesy of GENERAL MOTORS CORP.
