Remove Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the overhead console. Refer to CONSOLE REPLACEMENT - OVERHEAD (SINGLE)   or CONSOLE REPLACEMENT - OVERHEAD (DUAL)   or CONSOLE REPLACEMENT - OVERHEAD (CF5)   .
  2. Remove the screws from the overhead console bracket.
  3. Remove the overhead console bracket from the roof.

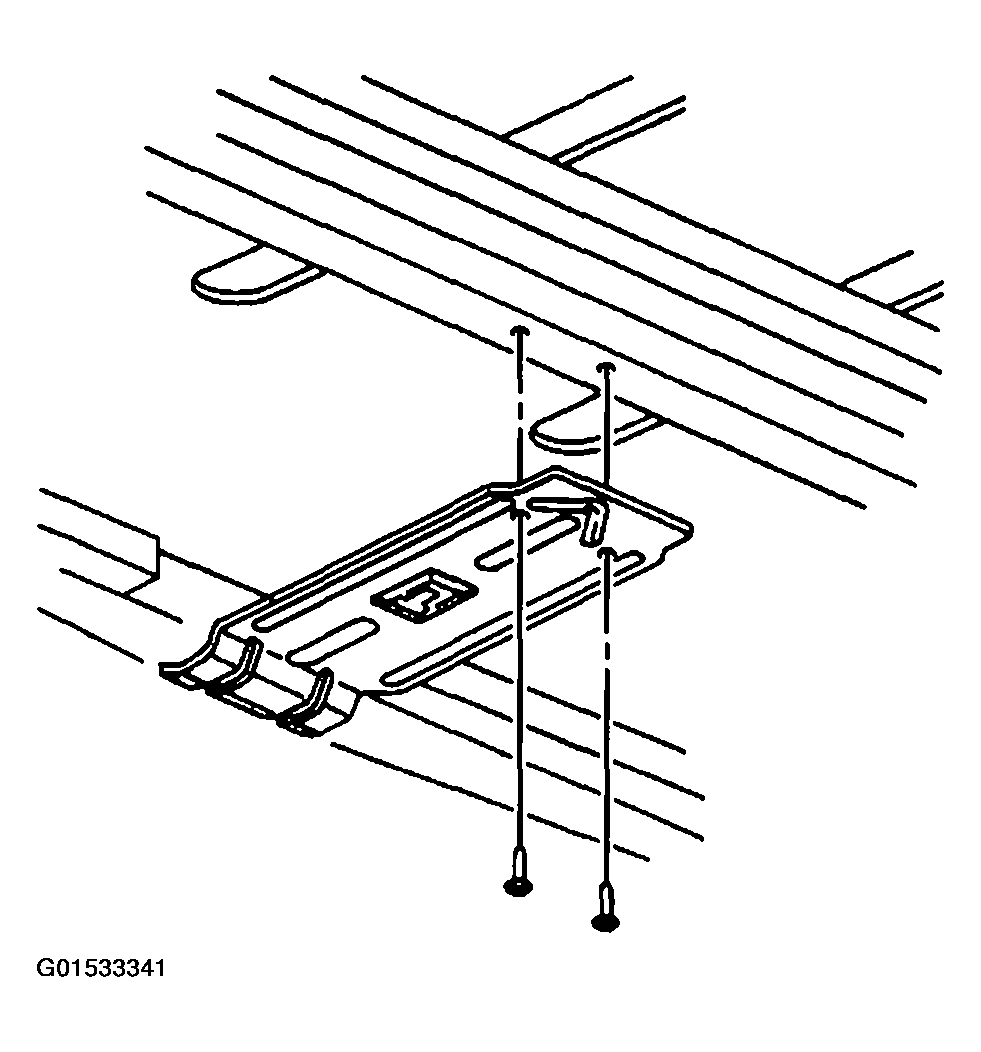

    Fig 1: Removing Overhead Console Bracket From Roof (Dual Storage)
    G01533341Courtesy of GENERAL MOTORS CORP.
