Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a small, flat-bladed tool between the interior lamp/multifunction switch/reading lamp housing and the overhead console.
  2. Press inward and down in order to release the interior lamp/multifunction switch/reading lamp housing from the overhead console.

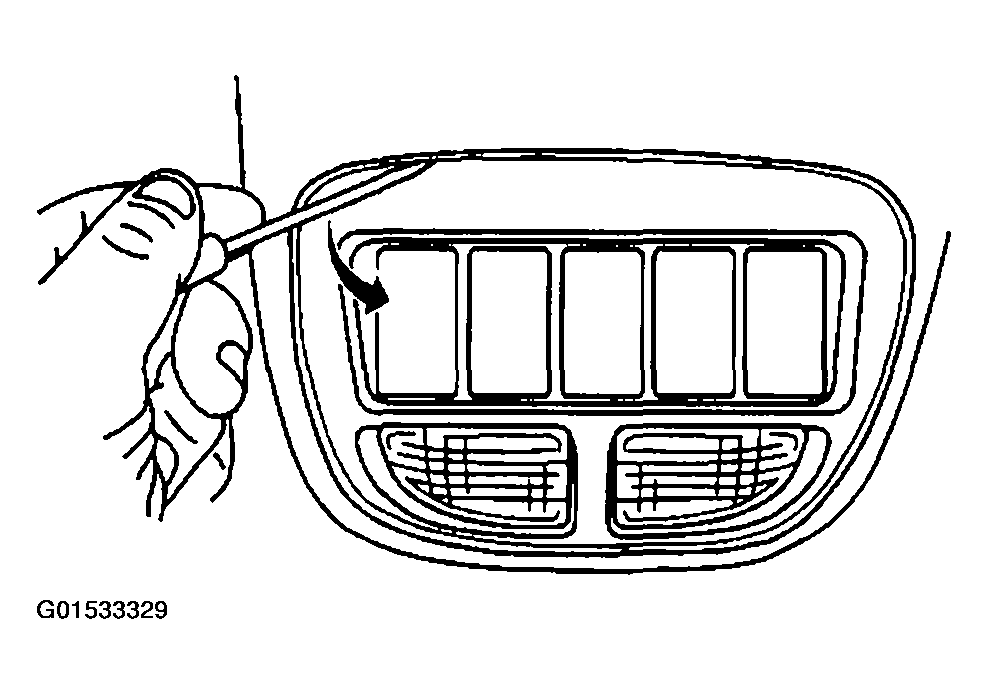

    Fig 1: Inserting Flat-Bladed Tool Between Interior Lamp/Multifunction Switch And Overhead Console (Dual)
    G01533329Courtesy of GENERAL MOTORS CORP.
  3. Remove the interior lamp/multifunction switch/reading lamp housing from the overhead console.
  4. Disconnect the electrical connectors from the interior lamp/multifunction switch.
    Fig 2: Disconnecting Electrical Connectors From Interior Lamp/Multifunction Switch (Overhead Console - Dual)
    G01533330Courtesy of GENERAL MOTORS CORP.
  5. Remove the screw from the front of the overhead console.
  6. Open the rear storage compartment in the overhead console in order to access the rear screws.
  7. Remove the screws from the rear of the front overhead console.
  8. Remove the overhead console from the headliner.
  9. Remove the driver information center. Refer to DRIVER INFORMATION CENTER REPLACEMENT  in instrument Panel, Gauges and Console.

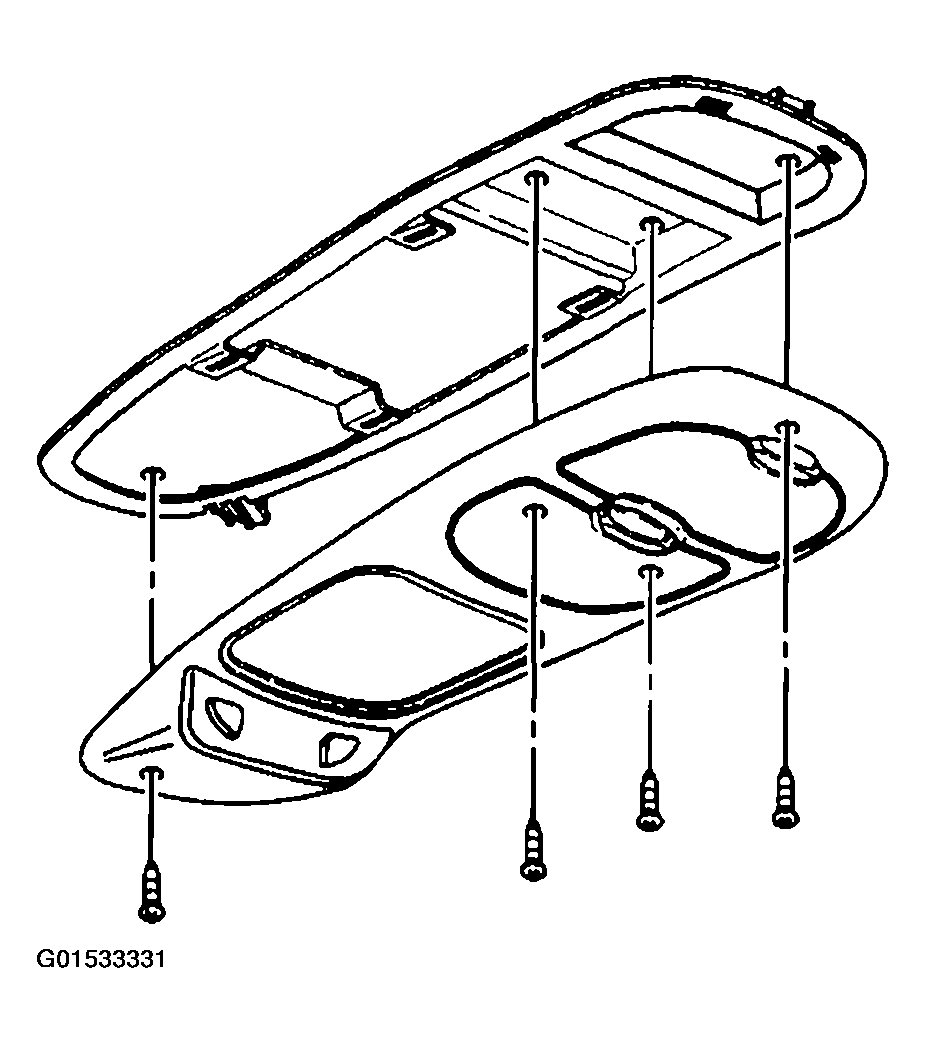

    Fig 3: Removing Overhead Console From Headliner (Overhead Console - Dual)
    G01533331Courtesy of GENERAL MOTORS CORP.
