Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the drive information center. Refer to DRIVER INFORMATION CENTER REPLACEMENT  in Instruction Panel, Gages and Console.
  2. Align the overhead console to the headliner.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the screw to the front of the overhead console.

    Tighten

    Tighten the screw to 2N.m (18 lb in).

  4. Open the rear storage compartment in the overhead console in order to access the holes for the rear mounting screws.
  5. Install the screws to the rear of the overhead console.

    Tighten

    Tighten the screw to N.m (18 ln in).

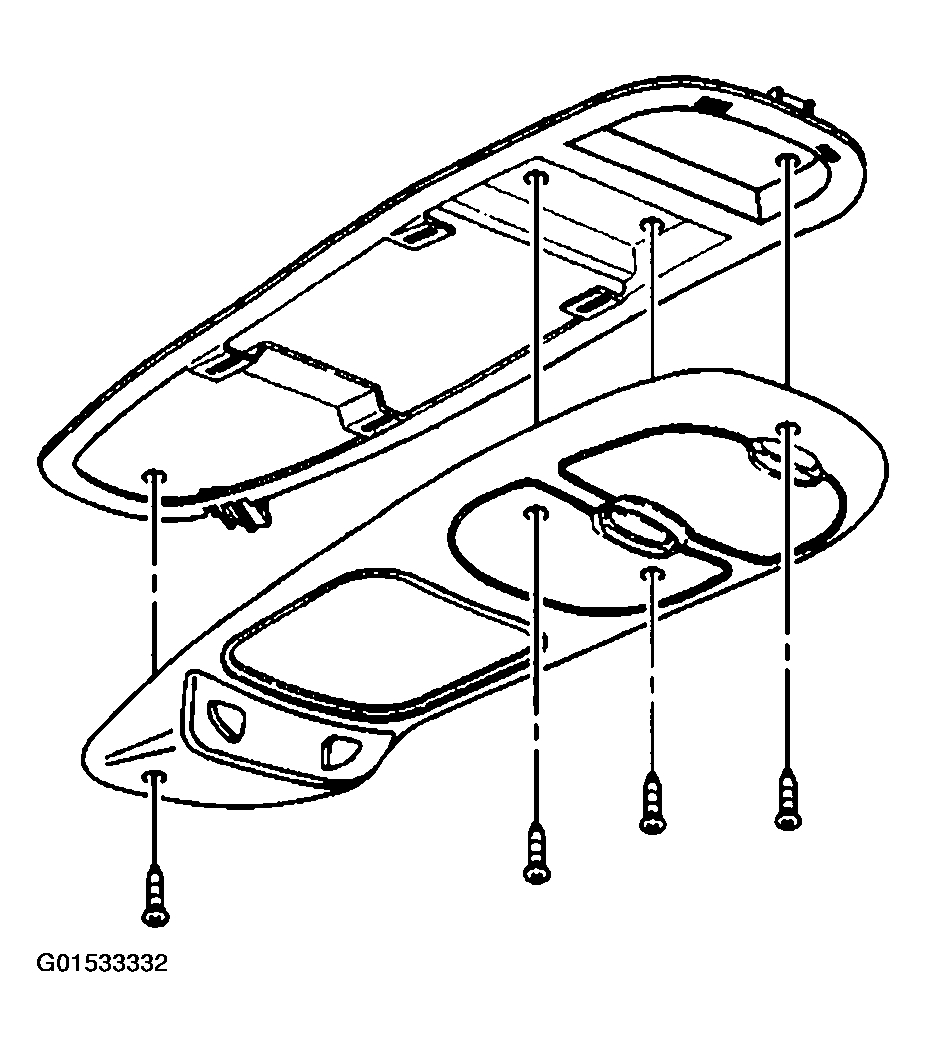

    Fig 1: Installing Overhead Console To Headliner (Overhead Console - Dual)
    G01533332Courtesy of GENERAL MOTORS CORP.
  6. Connect the electrical connectors to the interior lamp/multifunction switch.
  7. Align the retaining tabs on the interior lamp/multifunction switch/reading lamp housing with the overhead console.
  8. Press up on the interior lamp/multifunction switch/reading lamp housing in order to install the housing into the overhead console.
    Fig 2: Connecting Electrical Connectors To Interior Lamp/Multifunction Switch (Overhead Console - Dual)
    G01533333Courtesy of GENERAL MOTORS CORP.
