Remove Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a small, flat-bladed tool between the interior lamp/multifunction switch/reading lamp housing and the overhead console.
  2. Press inward and down in order to release the interior lamp/multifunction switch/reading lamp housing from the overhead console.

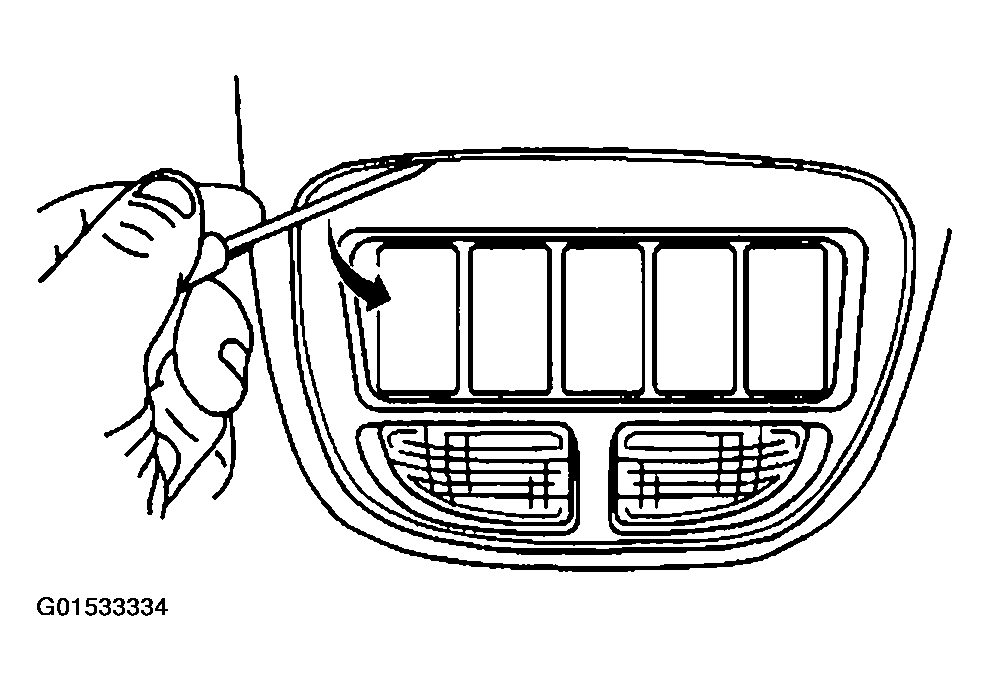

    Fig 1: Inserting Flat-Bladed Tool Between Interior Lamp/Multifunction Switch And Overhead Console (CF5)
    G01533334Courtesy of GENERAL MOTORS CORP.
  3. Remove the interior lamp/multifunction switch/reading lamp housing from the overhead console.
  4. Disconnect the electrical connectors from the interior lamp/multifunction switch.
    Fig 2: Disconnecting Electrical Connectors From Interior Lamp/Multifunction Switch (Overhead Console - CF5)
    G01533335Courtesy of GENERAL MOTORS CORP.
  5. Use a flat-bladed tool in order to unsnap the retainers from the overhead console bracket.
  6. Remove the overhead console from the headliner.

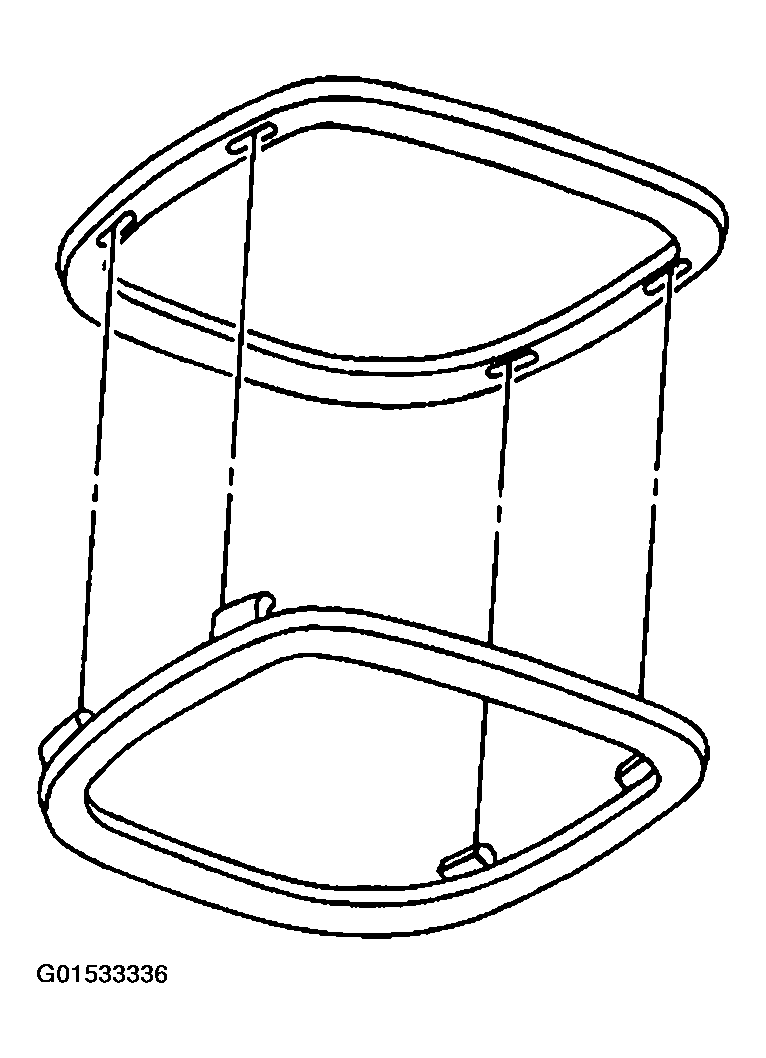

    Fig 3: Removing Overhead Console From Headliner (Overhead Console - CF5)
    G01533336Courtesy of GENERAL MOTORS CORP.
