Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the overhead console to the headliner.
  2. Install the overhead console retainers into the overhead console bracket.

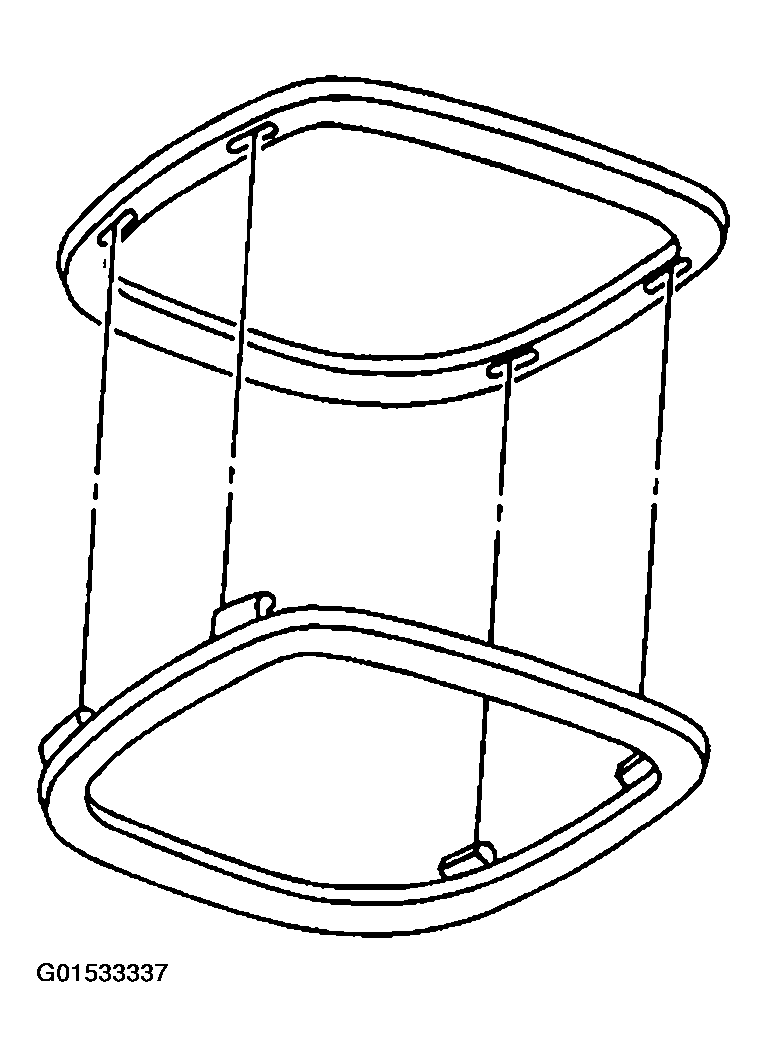

    Fig 1: Installing Overhead Console To Headliner (Overhead Console - CF5)
    G01533337Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector to the interior lamp/multifunction switch.
  4. Align the retaining tabs on the interior lamp/multifunction switch/reading lamp housing with the overhead console.
  5. Press up on the interior lamp/multifunction switch/reading lamp housing in order to install the housing into the overhead console.
    Fig 2: Connecting Electrical Connectors To Interior Lamp/Multifunction Switch (Overhead Console - CF5)
    G01533338Courtesy of GENERAL MOTORS CORP.
