Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seats. Refer to SEAT REPLACEMENT - REAR  in Seats.
  2. Remove the locking clips from the bezel using a curved pick tool.
  3. Remove the anchor plate bezel (1) from the floor.

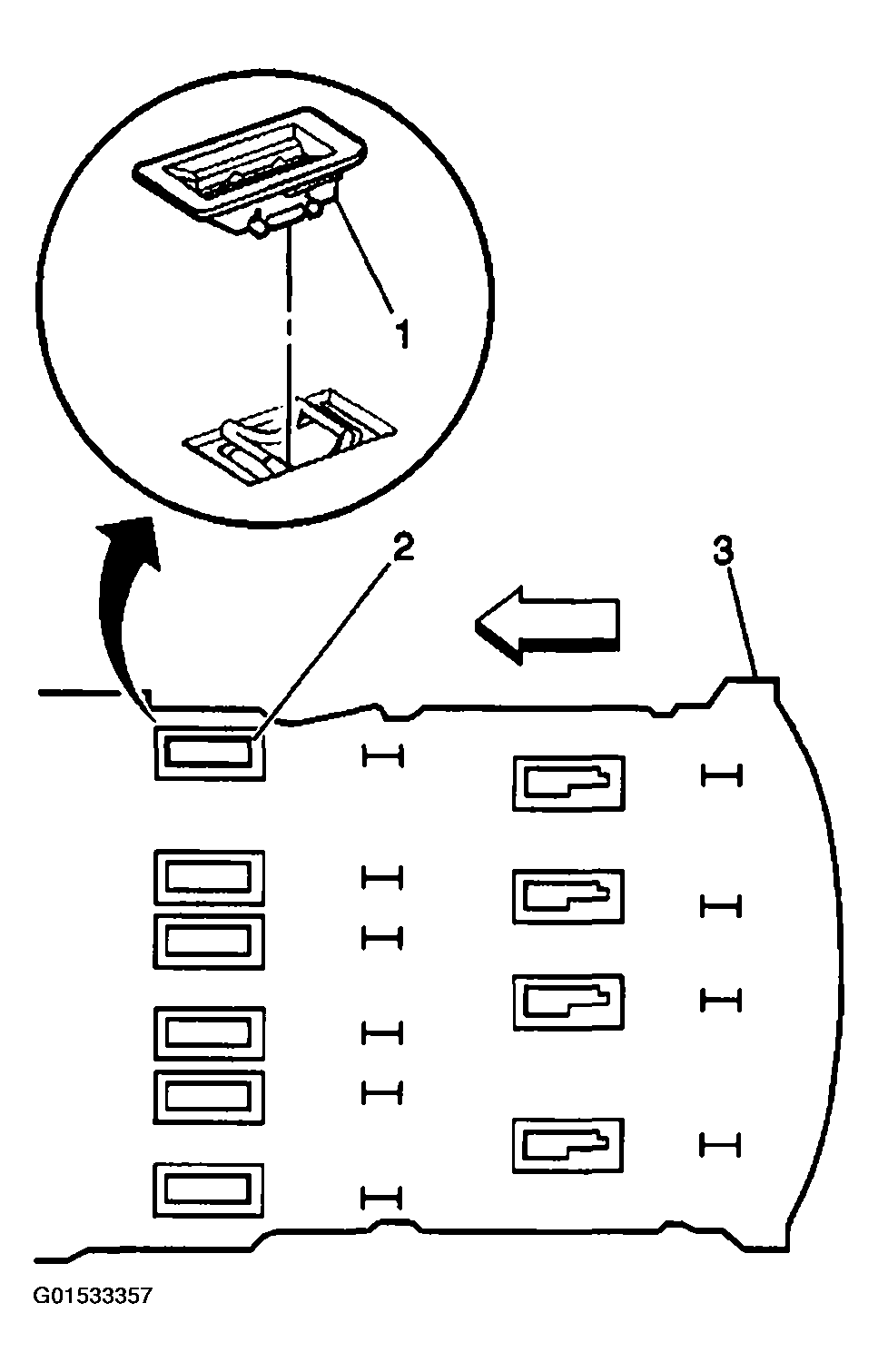

    Fig 1: Removing Anchor Plate Bezel From Floor
    G01533357Courtesy of GENERAL MOTORS CORP.
