Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seats. Refer to SEAT REPLACEMENT - BUCKET  in Seats.
  2. Remove the rear seats. Refer to SEAT REPLACEMENT - REAR  in Seats.
  3. Remove the anchor plate bezels. Refer to CARPET TRIM PLATE REPLACEMENT REAR FLOOR   .
  4. Remove the convenience net retainers from the floor.
  5. Remove the left and the right front door sill plates. Refer to DOOR SILL PLATE REPLACEMENT (DOOR)   or DOOR SILL PLATE REPLACEMENT (SLIDING DOOR)   .
  6. Remove the sliding door sill plate. Refer to DOOR SILL PLATE REPLACEMENT (DOOR)   or DOOR SILL PLATE REPLACEMENT (SLIDING DOOR)   .
  7. Remove the rear liftgate sill plate. Refer to INTERIOR TRIM .
  8. Remove the center floor console. Refer to INSTRUMENT PANEL, GAGES, AND CONSOLE  in Instrument Panel, Gages and console.
  9. Remove the left trim panel and remove the right trim panel from the side center pillar. Refer to GARNISH MOLDING REPLACEMENT - BODY SIDE REAR UPPER   .
  10. Remove the lower I/P cowl panels. Refer to TRIM PANEL REPLACEMENT - COWL SIDE   .
  11. Remove the left and the right quarter trim. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER   .
  12. Remove the carpet (2) from the vehicle.

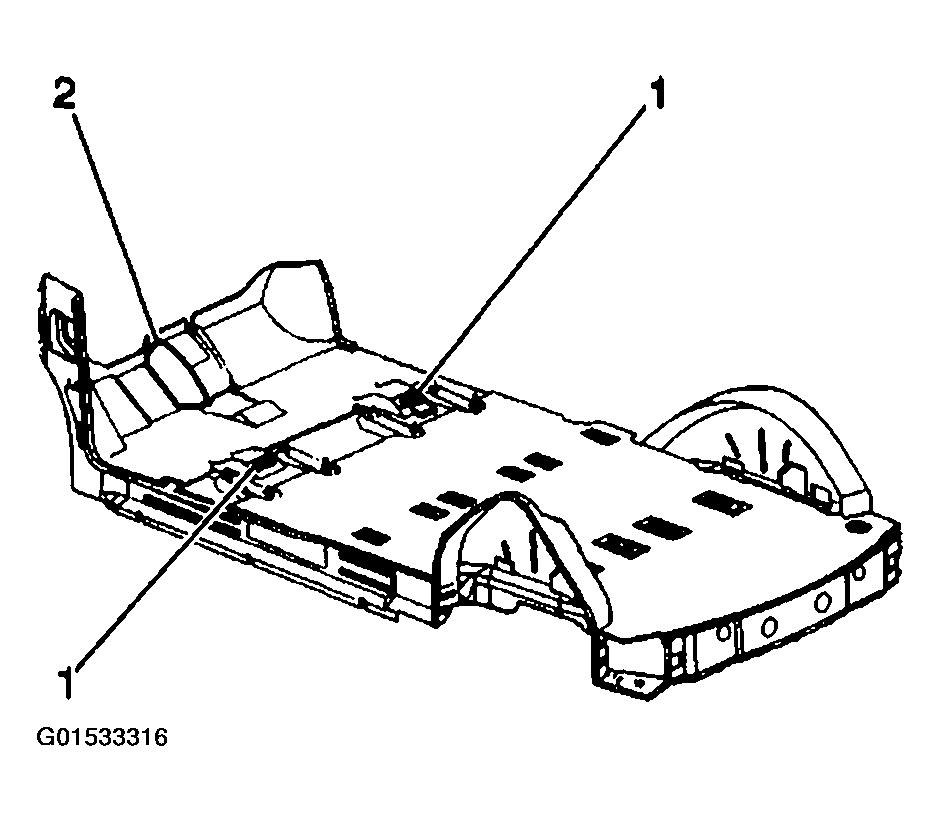

    Fig 1: Removing Carpet From Vehicle
    G01533316Courtesy of GENERAL MOTORS CORP.
