Installation Procedure
WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
In order to avoid personal injury or vehicle damage when you repair or replace the carpet, use the same thickness and material size as the original installation. Always return the carpet to the original location.

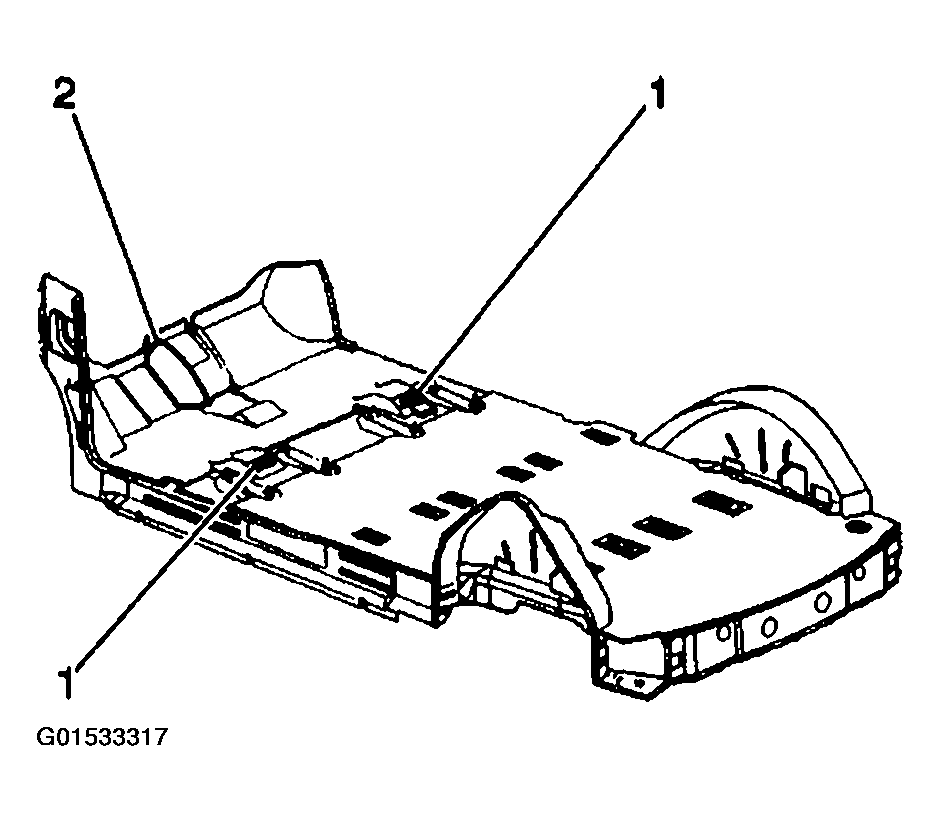

- Install the carpet (2) to the vehicle
- Install the left and the right quarter trim. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER .
- Install the lower I/P cowl panels. Refer to TRIM PANEL REPLACEMENT - COWL SIDE .
- Install the left trim panel and install the right trim panel to the side center pillar. Refer to GARNISH MOLDING REPLACEMENT - BODY SIDE REAR UPPER .
- Install the center floor console. Refer to INSTRUMENT PANEL, GAGES, AND CONSOLE in Instrument Panel, Gages and Console.
- Install the rear liftgate sill plate. Refer to DOOR SILL PLATE REPLACEMENT - LIFT GATE .
- Install the sliding door sill plate. Refer to DOOR SILL PLATE REPLACEMENT (DOOR) or DOOR SILL PLATE REPLACEMENT (SLIDING DOOR) .
- Install the left and the right front door sill plates. Refer to DOOR SILL PLATE REPLACEMENT (DOOR) or DOOR SILL PLATE REPLACEMENT (SLIDING DOOR) .
- Install the convenience net retainers to the floor, if equipped.
- Install the anchor plate bezels. Refer to INTERIOR TRIM
- Install the rear seats. Refer to SEAT REPLACEMENT - REAR in Seats.
- Install the front seats. Refer to SEAT REPLACEMENT - BUCKET in Seats.
