Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the power outlet.
  2. Install the trim panel.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the screws on the plate securing the cover of the panel assembly.

    Tighten

    Tighten the screws to 2.5 N.m (22 lb in).

  4. Install the cover on the hinges and close the cover.

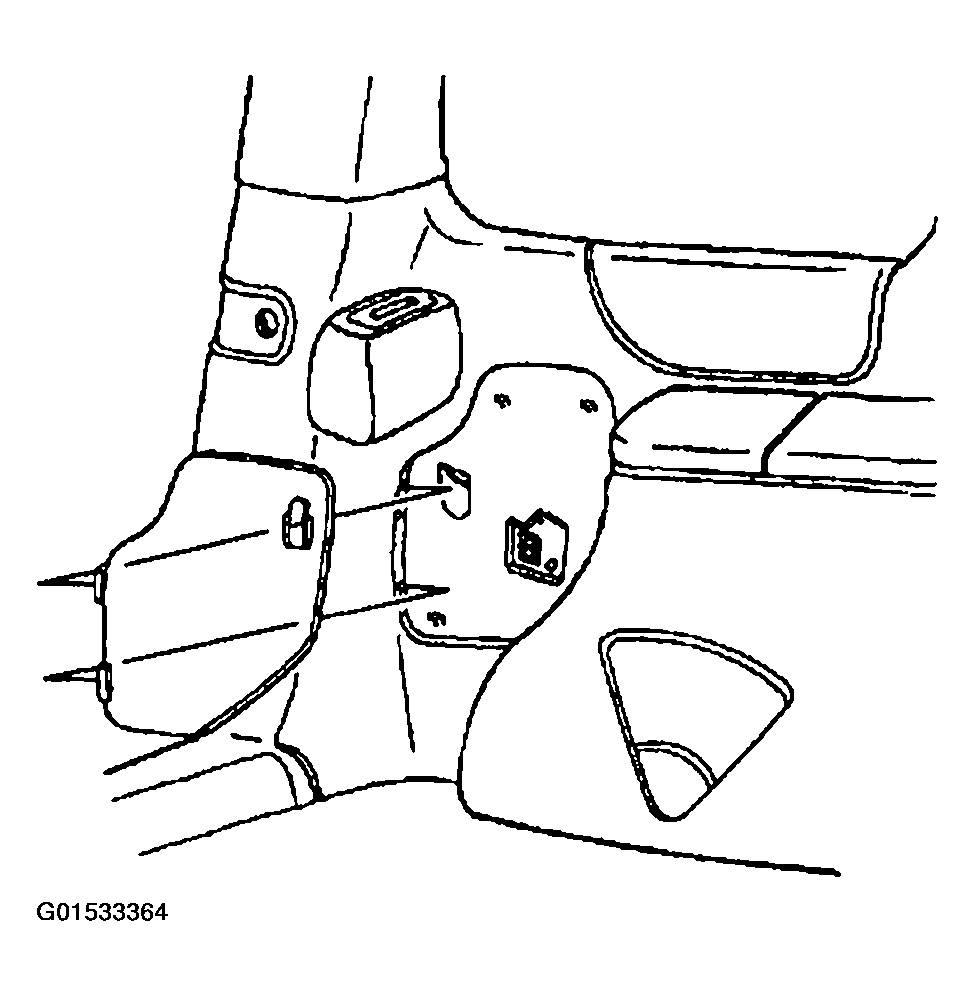

    Fig 1: Installing Rear Accessory Panel Plate
    G01533364Courtesy of GENERAL MOTORS CORP.
