Schematic and Routing Diagrams

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

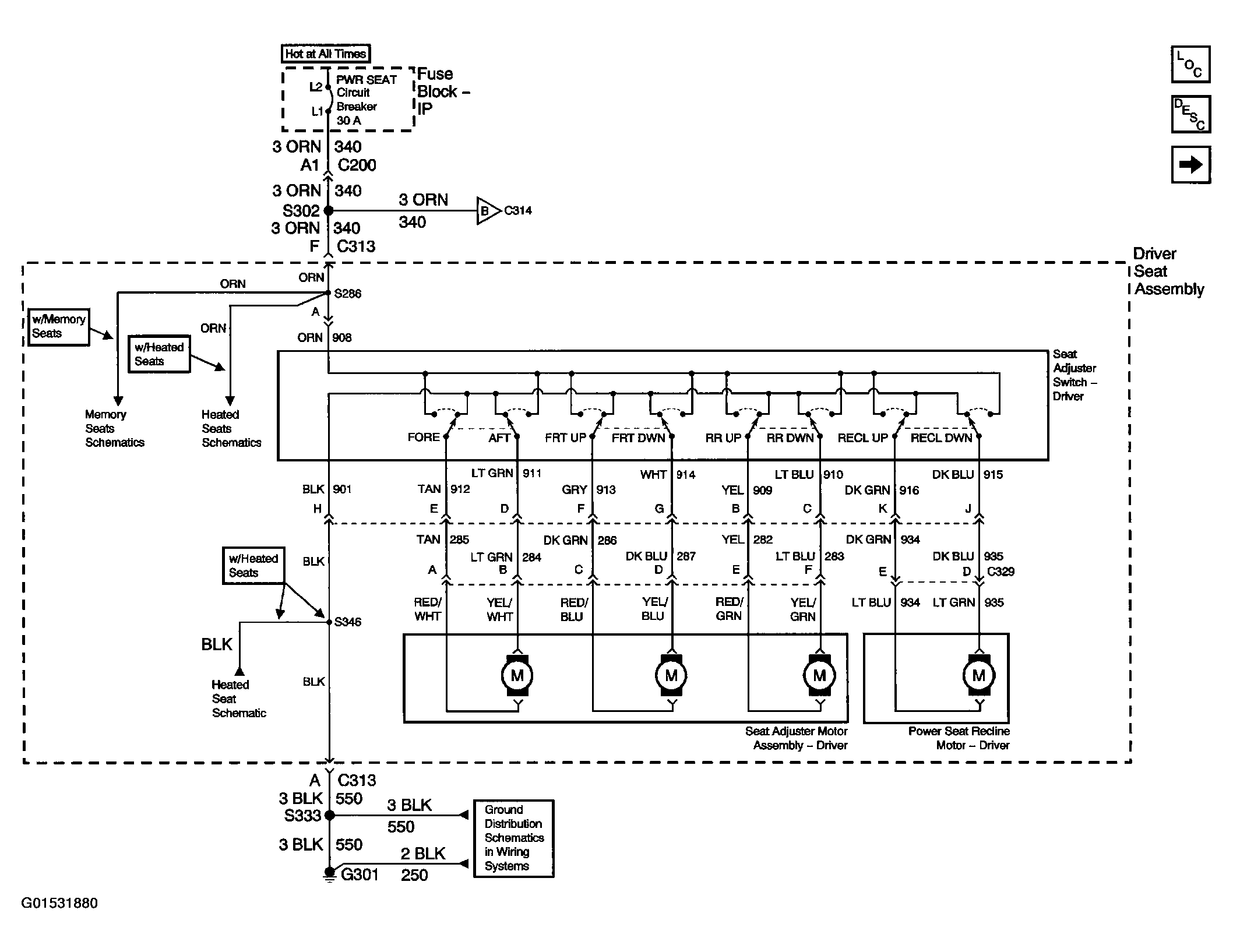

Fig 1: Power Seats Schematic (Driver Side Power Seat, Ground, And Switches)

Courtesy of GENERAL MOTORS CORP.

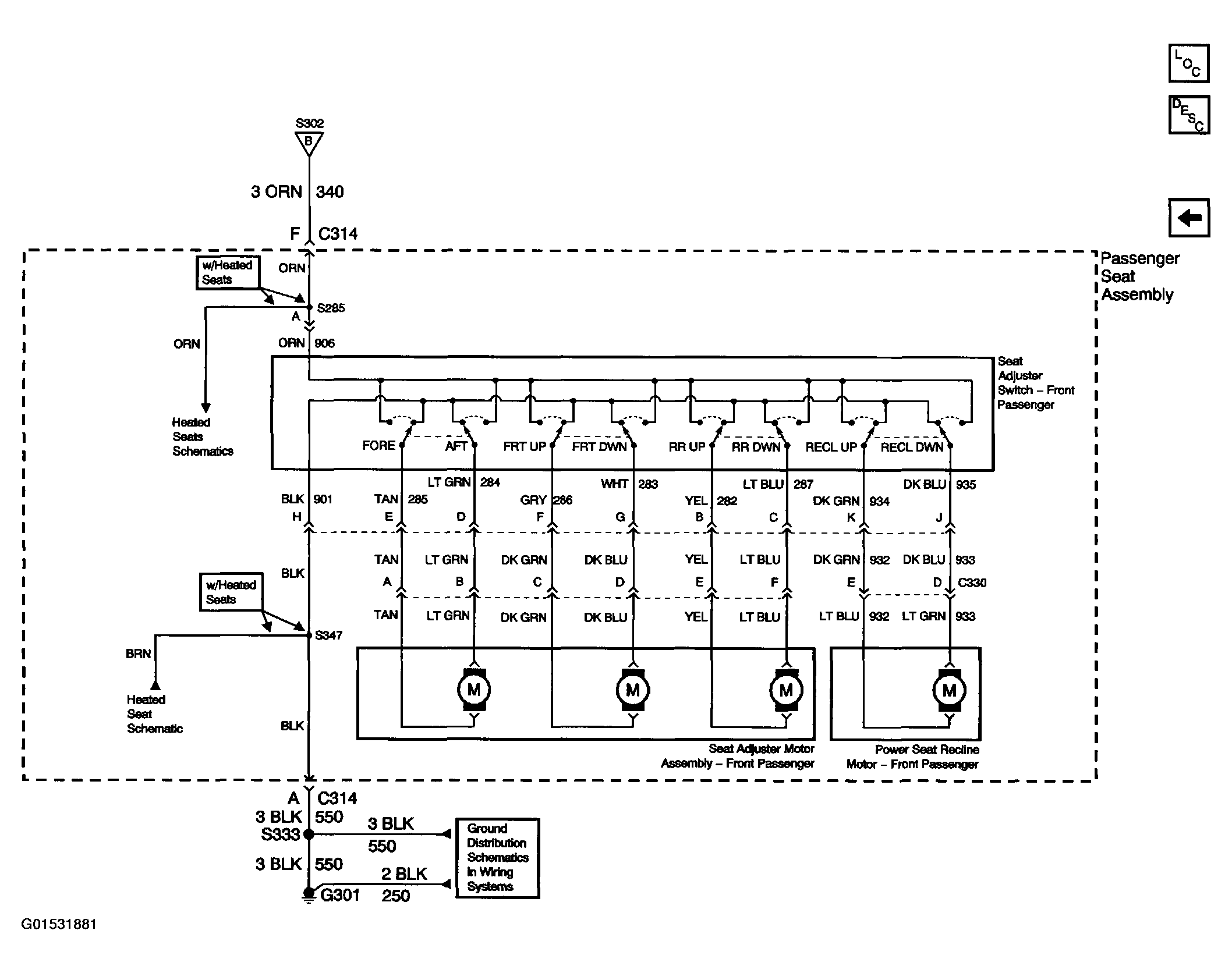

Fig 2: Power Seats Schematic (Passenger Side Power Seat, Ground & Switches)

Courtesy of GENERAL MOTORS CORP.

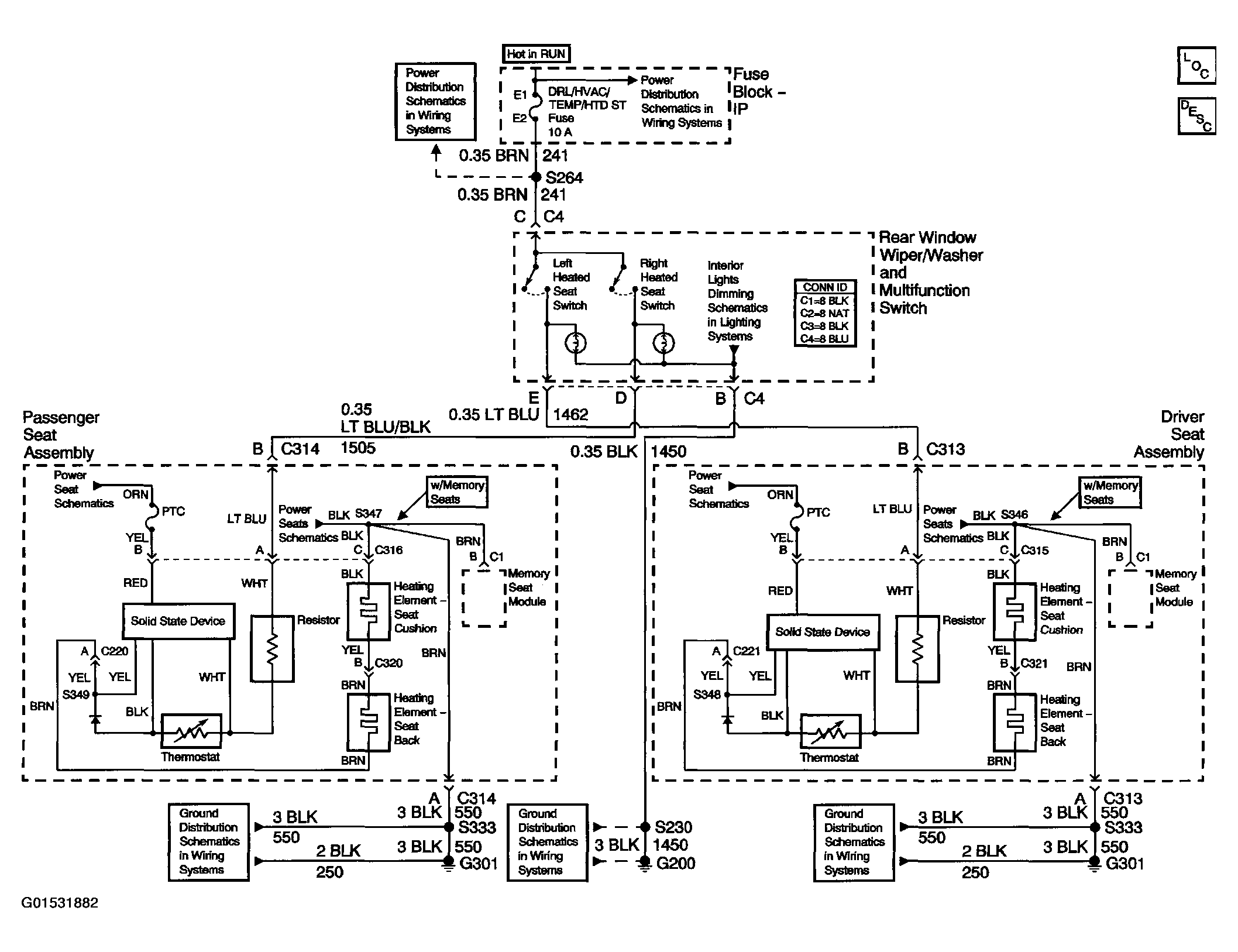

Fig 3: Heated Seats Schematic

Courtesy of GENERAL MOTORS CORP.

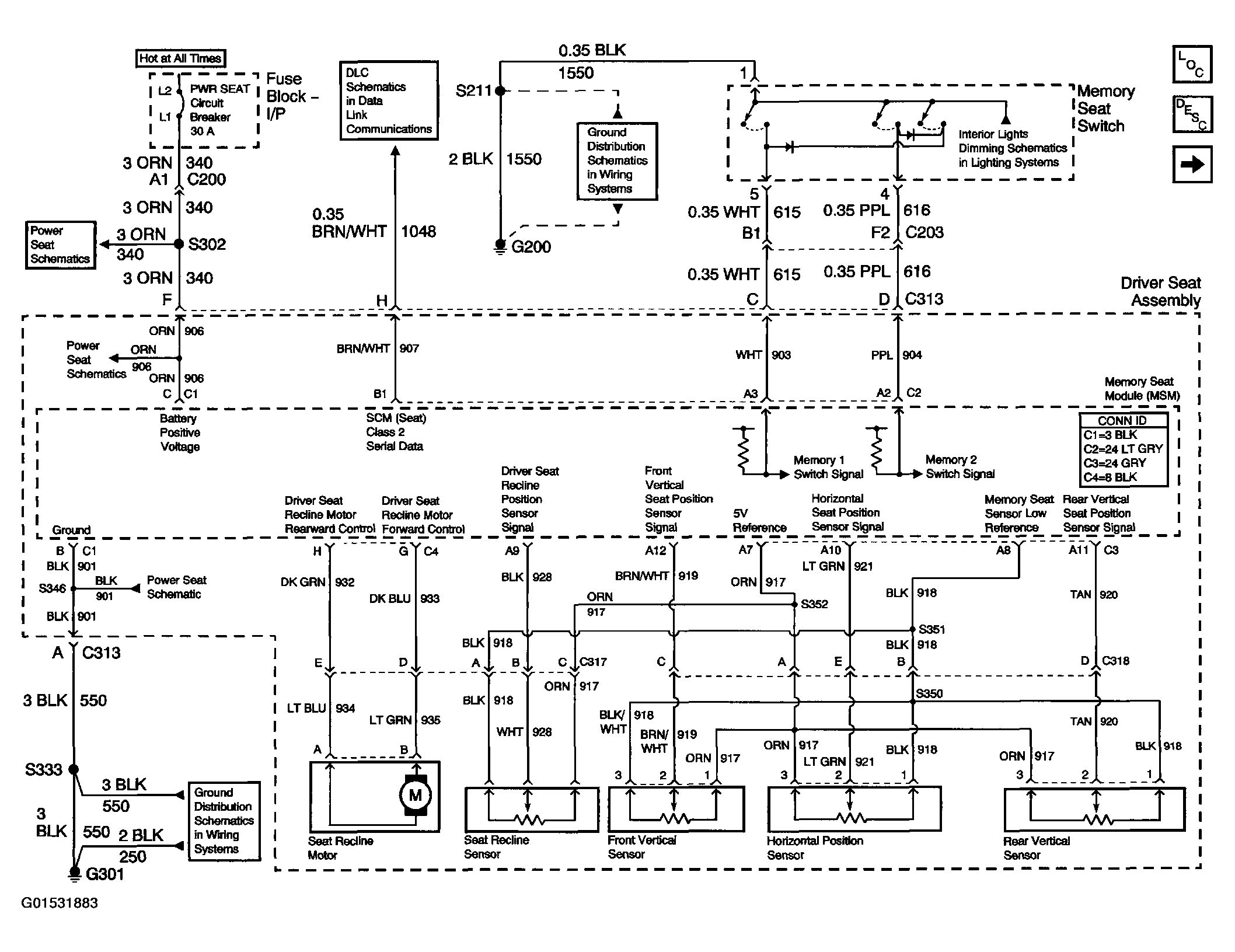

Fig 4: Memory Seats Schematic Diagram (Ground, Memory Seat Switch & Memory Seat Module)

Courtesy of GENERAL MOTORS CORP.

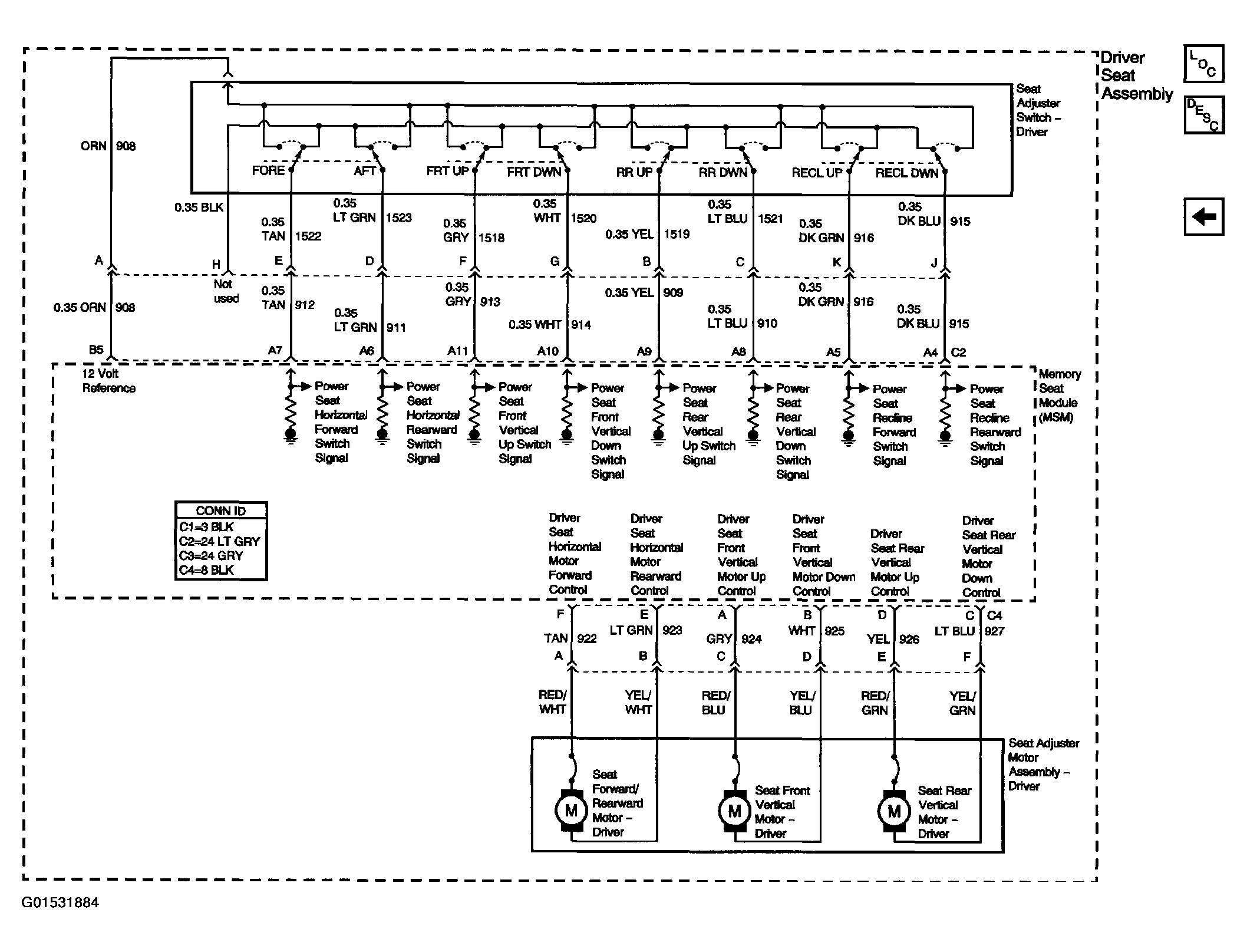

Fig 5: Memory Seats Schematic Diagram (Memory Seat Module & Seat Horizontal Motor)

Courtesy of GENERAL MOTORS CORP.
