Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the storage tray (3).
  2. Depress the tab located inside of the storage tray (3) near the rear in the center.
  3. Pull the storage tray (3) forward until the storage tray has disengaged from the tracks (2).

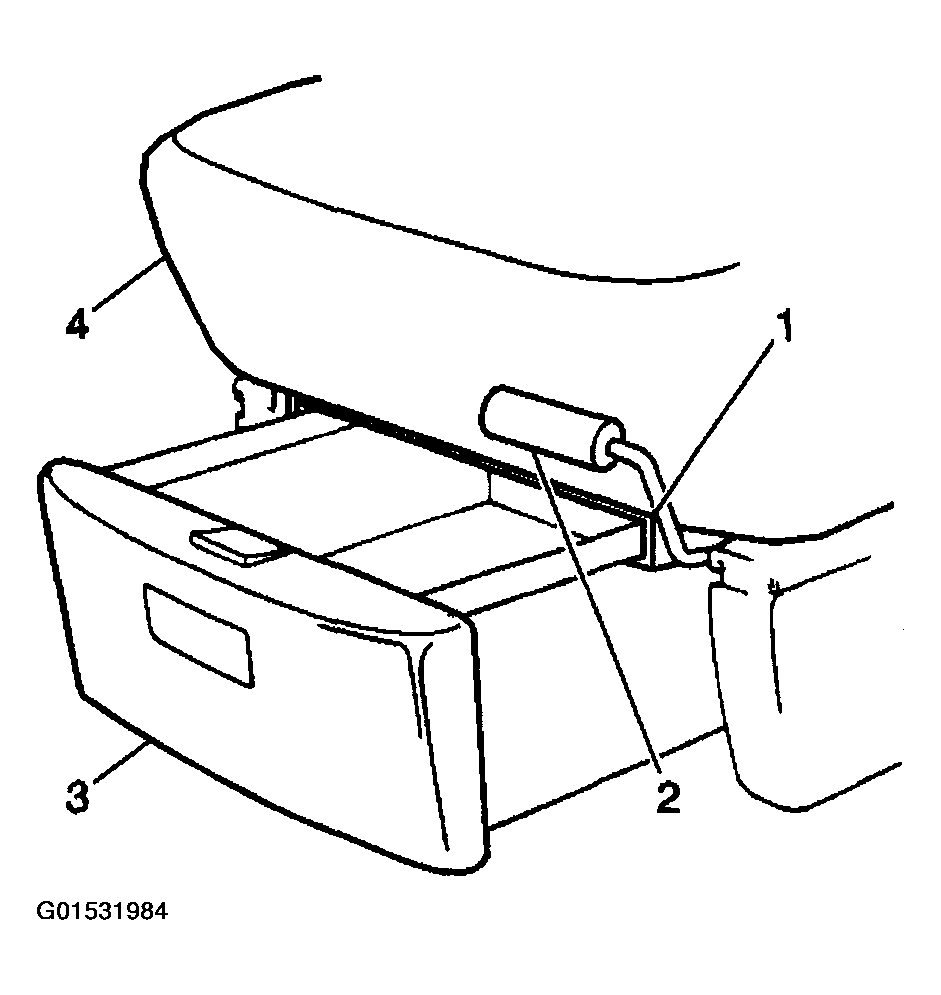

    Fig 1: Removing Front Seat Right Storage Tray
    G01531984Courtesy of GENERAL MOTORS CORP.
