Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat. Refer to SEAT REPLACEMENT - REAR   .
  2. Remove the seat riser bolts.
  3. Remove the seat riser from the seat cushion.

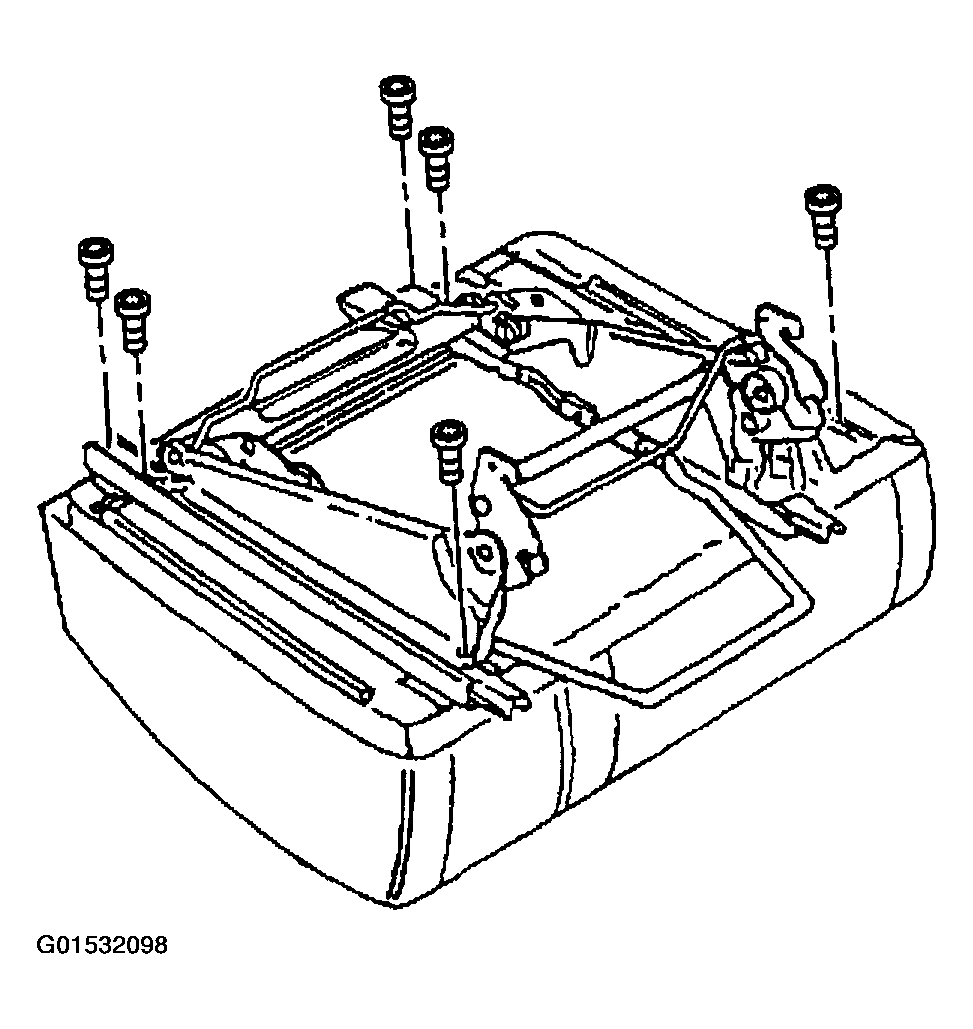

    Fig 1: Removing rear Seat Riser From Seat Cushion
    G01532098Courtesy of GENERAL MOTORS CORP.
