Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat. Refer to SEAT REPLACEMENT - REAR   .

    Important:  Each rear seat riser has a specific lock-out pin location, depending on the seat configuration. Note the location of the lock-out pins before removing, in order to properly reinstall the lock-out pins on the seat riser.

  2. Remove the lock-out pins from the front legs of the seat riser.

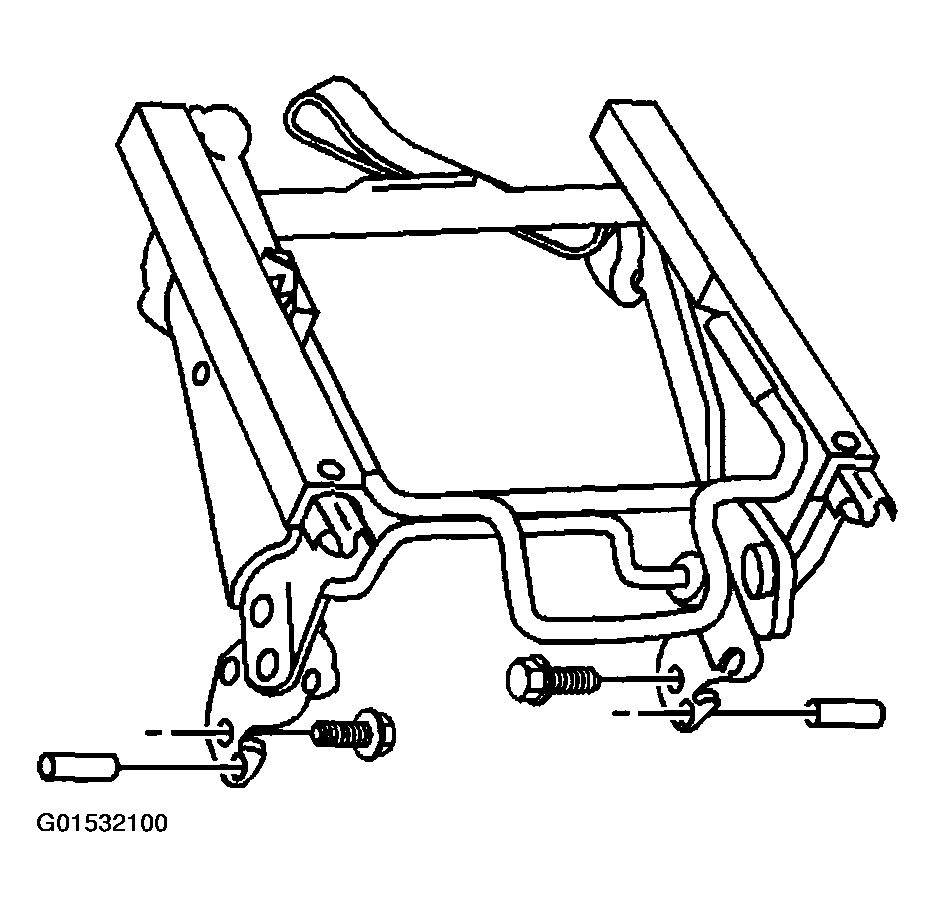

    Fig 1: Removing Seat Riser Lock-Out Pin
    G01532100Courtesy of GENERAL MOTORS CORP.
