Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lock-out pins to the front legs of the seat riser.
  2. Install the rear seat. Refer to SEAT REPLACEMENT - REAR   .

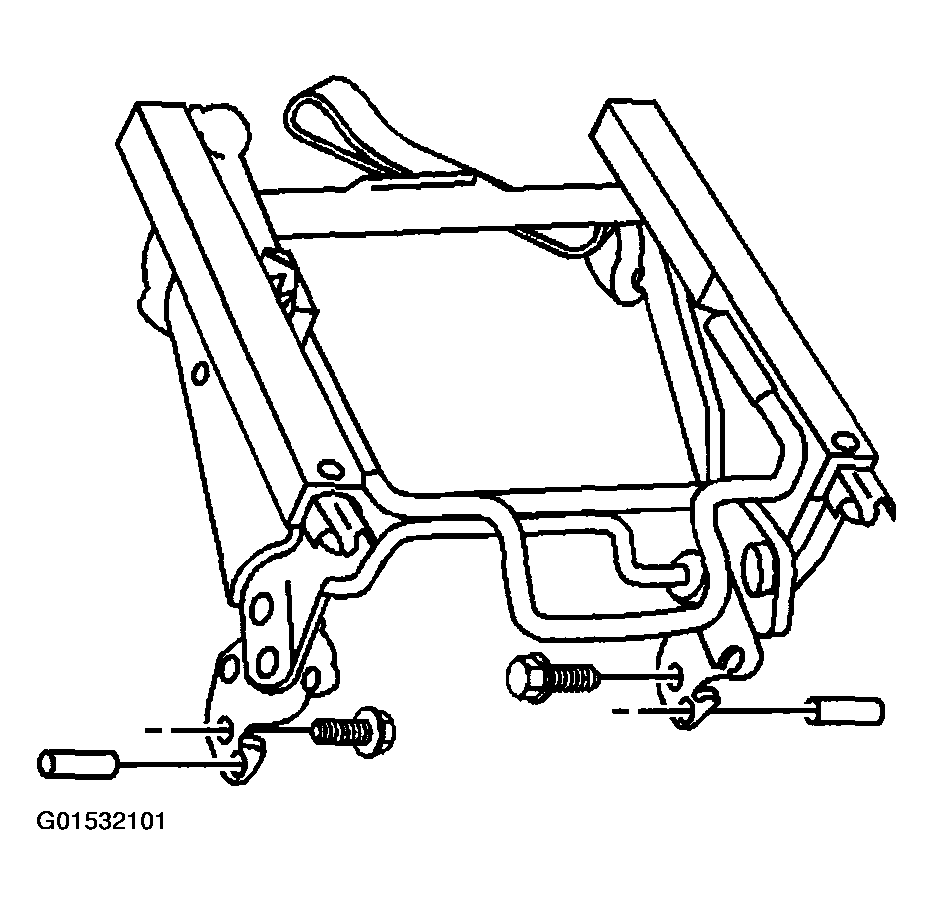

    Fig 1: Installing Seat Riser Lock-Out Pin
    G01532101Courtesy of GENERAL MOTORS CORP.
