Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat. Refer to SEAT REPLACEMENT - BUCKET   .
  2. Turn the front seat upside down on a clean, flat surface.
  3. Reach under and unfasten the front seat cushion support from the bottom of the front seat cushion frame.
  4. Remove the cushion support from the front seat.

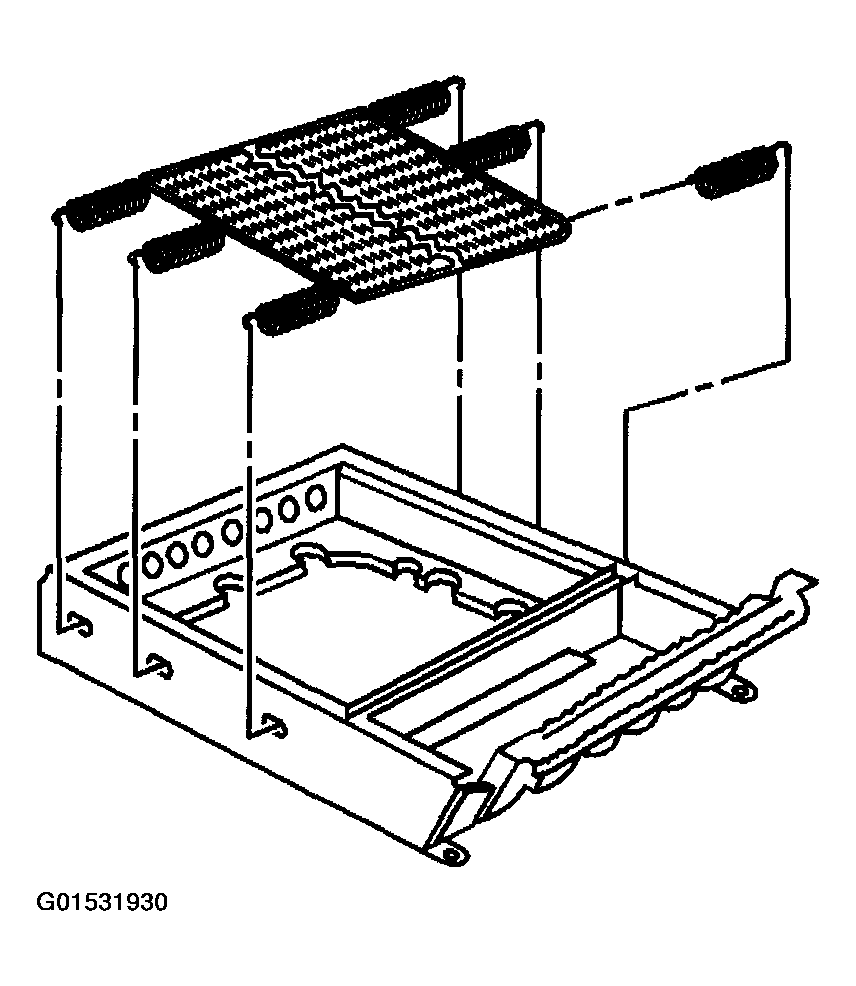

    Fig 1: Removing Cushion Support From Front Seat
    G01531930Courtesy of GENERAL MOTORS CORP.
