Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cushion support to the front seat.
  2. Reach under and fasten the front seat cushion support to the bottom of the front seat cushion frame.
  3. Install the front seat. Refer to SEAT REPLACEMENT - BUCKET   .

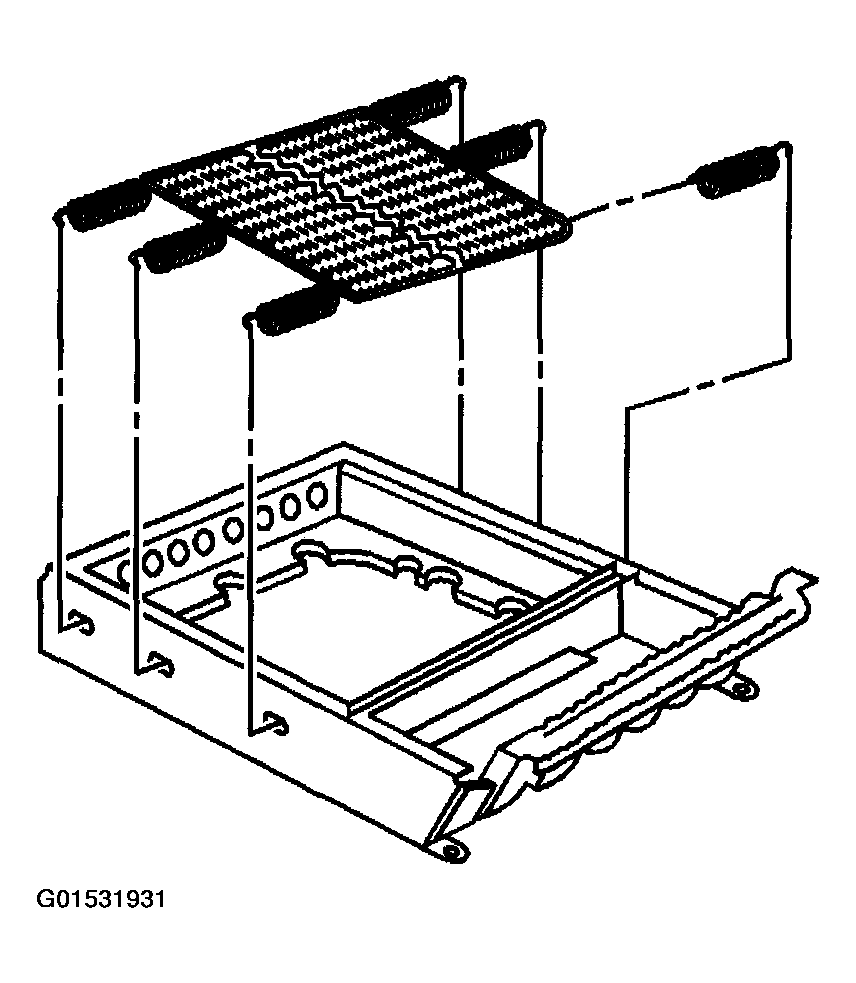

    Fig 1: Installing Cushion Support To Front Seat
    G01531931Courtesy of GENERAL MOTORS CORP.
