Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the second row bucket seat. Refer to SEAT REPLACEMENT - REAR   .
  2. Remove the finish covers. Refer to SEAT TRIM REPLACEMENT - SIDE   .
  3. Remove the seat riser. Refer to SEAT RISER REPLACEMENT - REAR   .
  4. Remove the rear seat adjuster. Refer to SEAT ADJUSTER REPLACEMENT - REAR   .

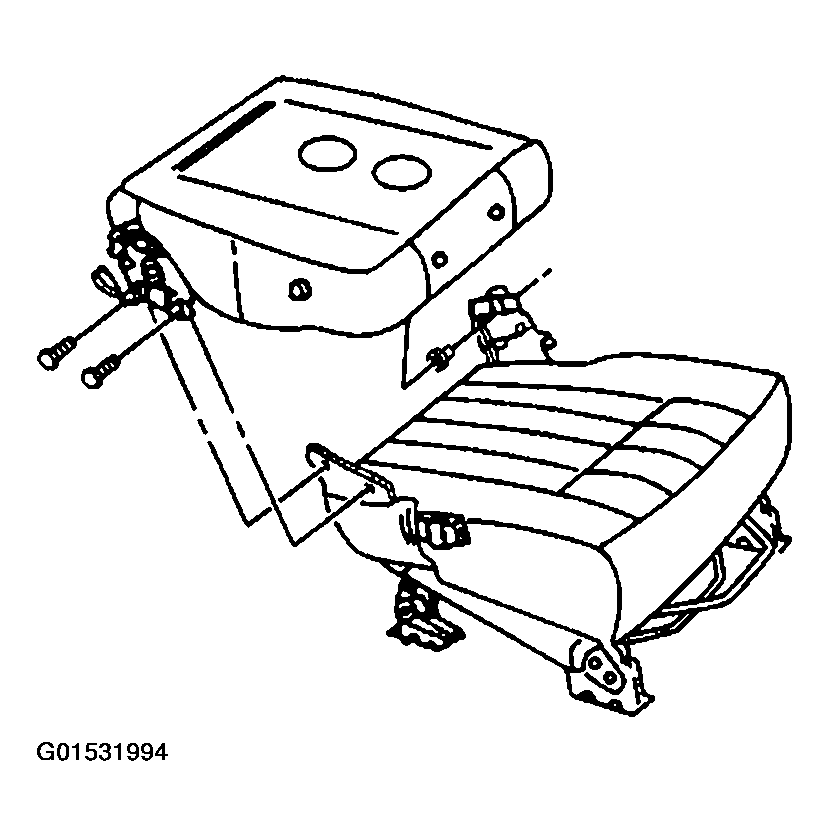

  5. Remove the recliner bolts.
  6. Separate the rear seat cushion from the rear seat back.
    Fig 1: Separating Rear Seat Cushion From Rear Seat Back (AL4 - Rear Bucket)
    G01531994Courtesy of GENERAL MOTORS CORP.

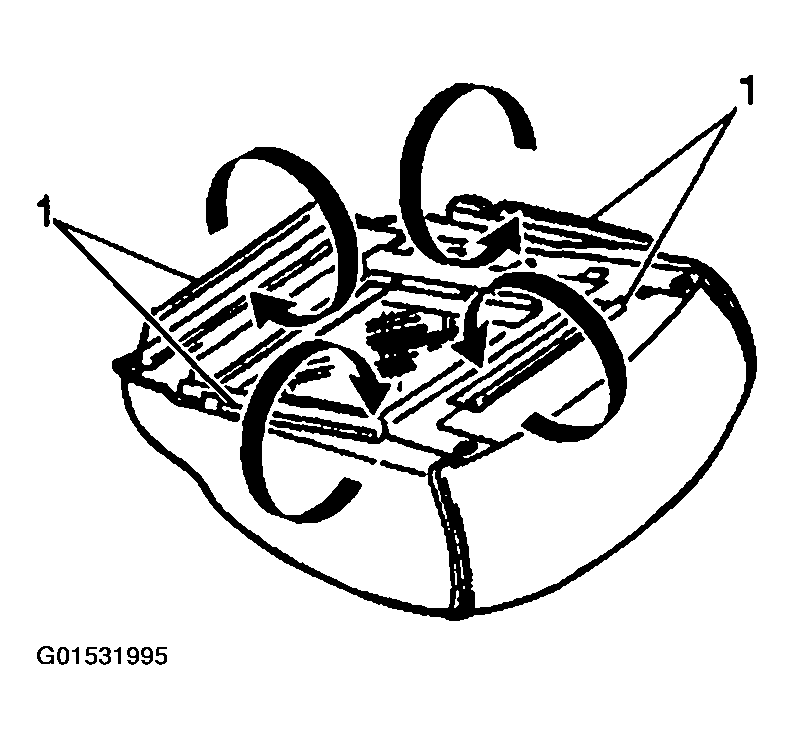

  7. Remove the seat cushion cover retainers (1) from the seat frame.
    Fig 2: Removing Rear Seat Cushion Cover Retainers From Seat Frame (AL4 - Rear Bucket)
    G01531995Courtesy of GENERAL MOTORS CORP.

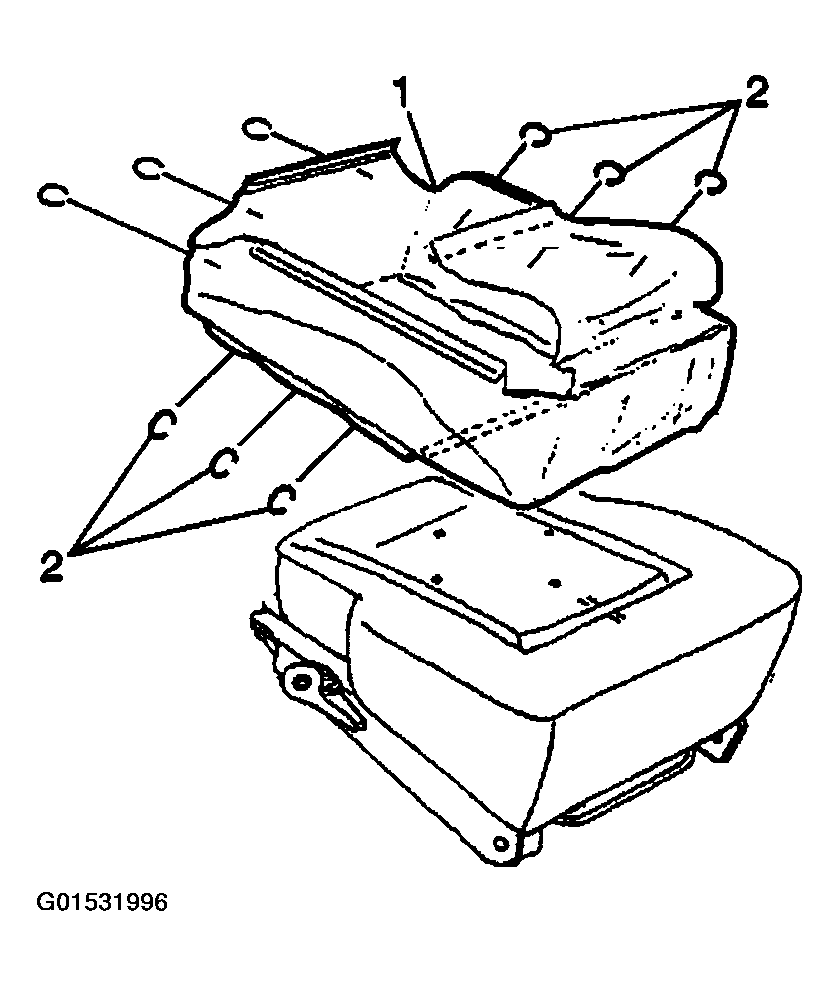

  8. Remove the rear seat cushion cover retainer rings (2).
  9. Separate the rear seat cushion cover away from the foam pad while separating the hook and loop retainers.
  10. Remove the rear seat cushion cover (1) from the foam pad.
    Fig 3: Separating Rear Seat Cushion Cover From Foam Pad (AL4 - Rear Bucket)
    G01531996Courtesy of GENERAL MOTORS CORP.
