Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear set cushion cover (1) to the foam pad.
  2. Secure the rear seat cushion cover to the foam pad using retainer rings (2) and the hook and loop retainers.
    Fig 1: Securing Rear Seat Cushion Cover To Foam Pad (AL4 - Rear Bucket)
    G01531997Courtesy of GENERAL MOTORS CORP.
  3. Install the seat cushion cover retainers (1) to the seat frame.

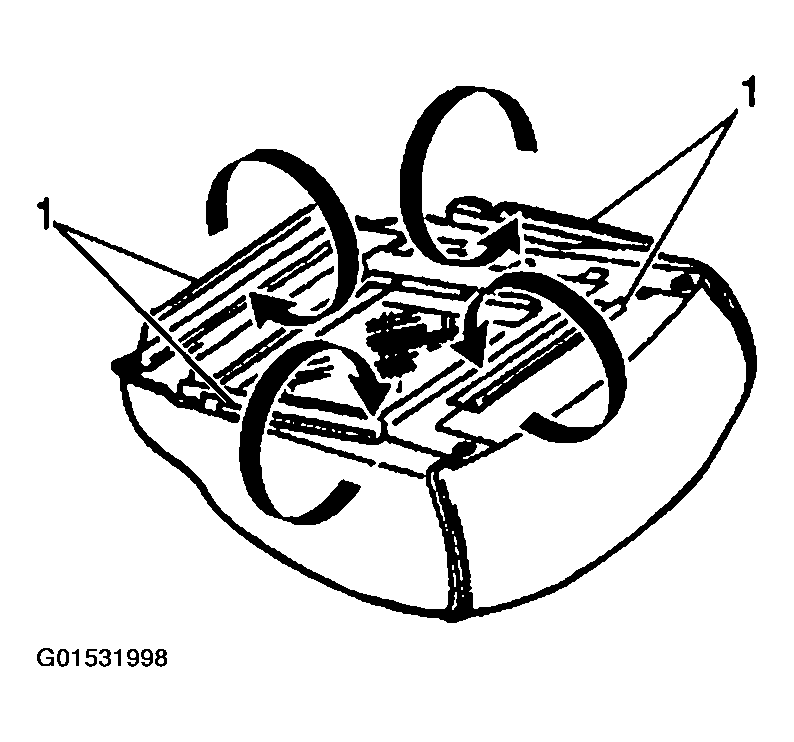

    Fig 2: Installing Rear Seat Cushion Cover Retainers To Seat Frame (AL4 - Rear Bucket)
    G01531998Courtesy of GENERAL MOTORS CORP.
  4. Install the rear seat cushion to the rear seat back.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the recliner bolts.

    Tighten

    Tighten the bolts to 32 N.m (24 lb ft).

  6. Install the rear seat adjuster. Refer to SEAT ADJUSTER REPLACEMENT - REAR   .
  7. Install the seat riser. Refer to SEAT RISER REPLACEMENT - REAR   .
  8. Install the finish covers. Refer to SEAT TRIM REPLACEMENT - SIDE   .
  9. Install the second row bucket seat. Refer to SEAT REPLACEMENT - REAR   .

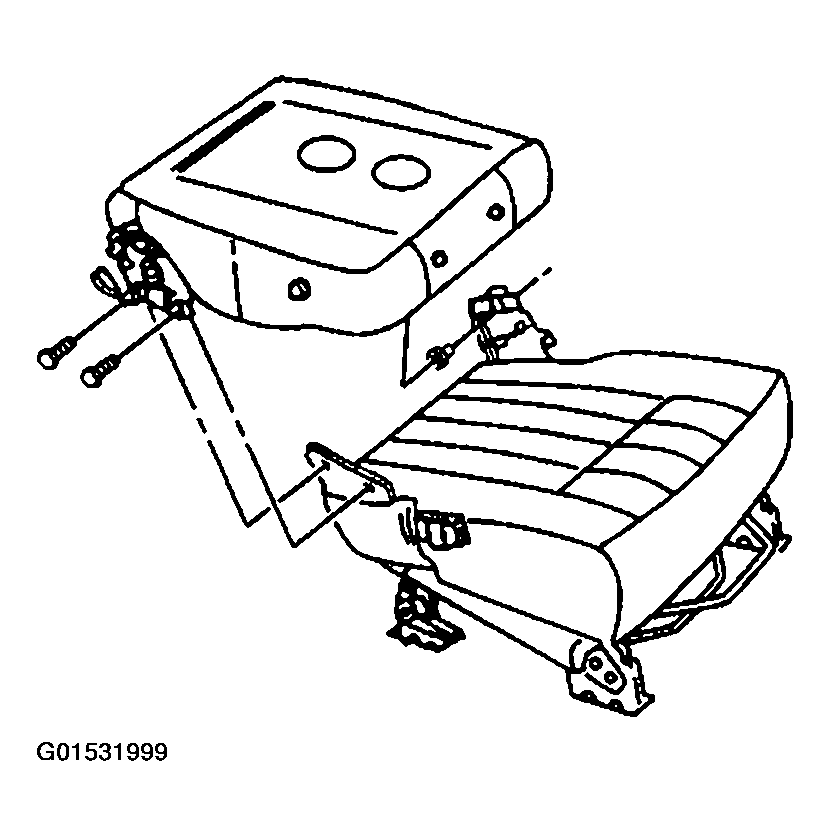

    Fig 3: Installing Rear Seat Cushion To Rear Seat Back (AL4 - Rear Bucket)
    G01531999Courtesy of GENERAL MOTORS CORP.
