Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat. Refer to SEAT REPLACEMENT - REAR   .
  2. Remove the recliner covers. Refer to SEAT BACK RECLINER COVER REPLACEMENT - REAR   .
  3. Remove the seat back cover retainer at the bottom edge of the rear seat back.

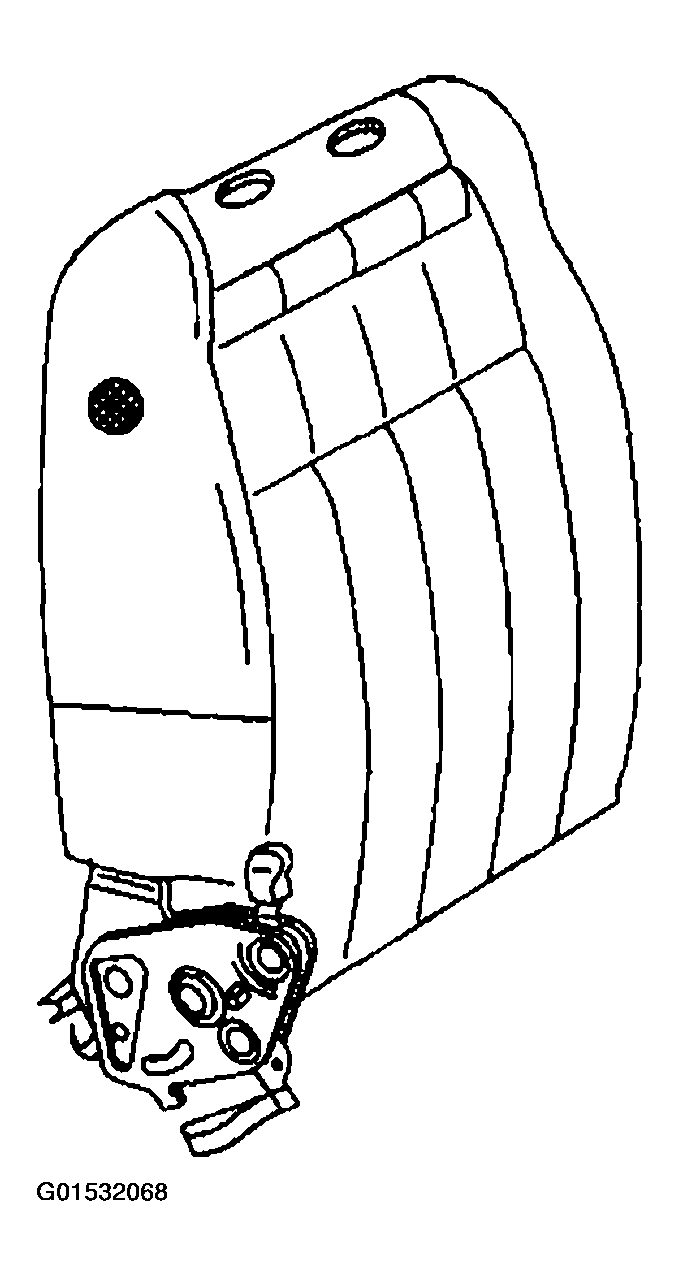

    Fig 1: Removing Seat Back Cover Retainer At Bottom Edge Of Rear Seat Back (AL4, AT5 & AM9)
    G01532068Courtesy of GENERAL MOTORS CORP.
  4. Remove the recliner bolts from the seat cushion.
  5. Remove the seat back cover and pad away in order to expose the recliner bolts.

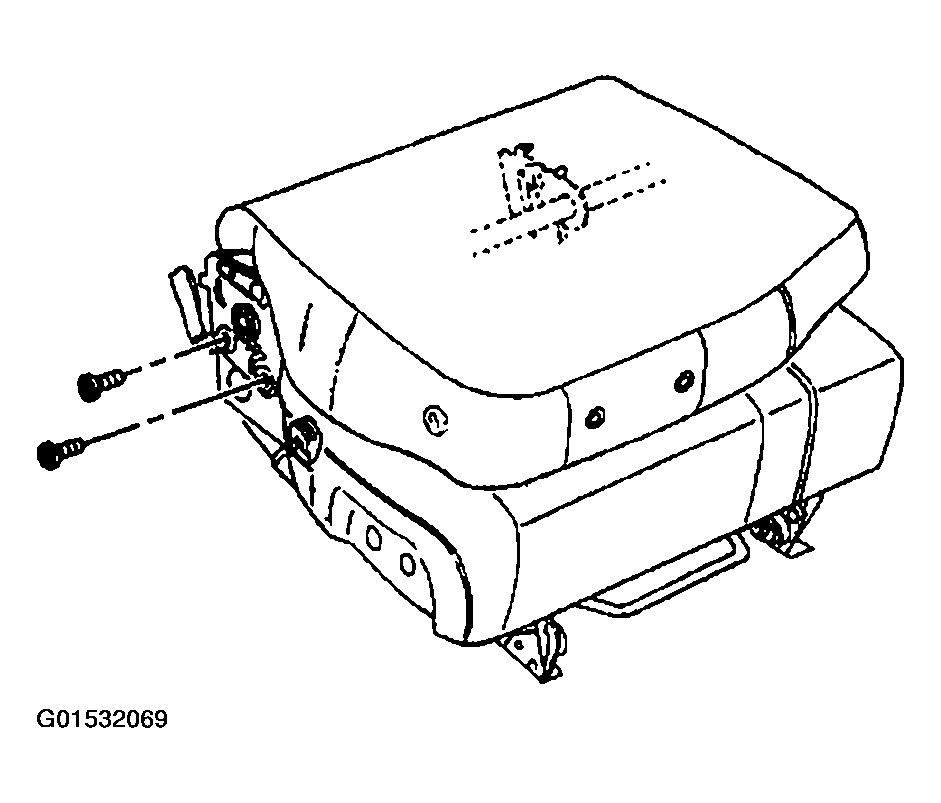

    Fig 2: Removing Recliner Bolts From Seat Cushion (AL4, AT5 & AM9)
    G01532069Courtesy of GENERAL MOTORS CORP.
  6. Remove the recliner bolts from the seat back.
  7. Remove the recliner from the seat.

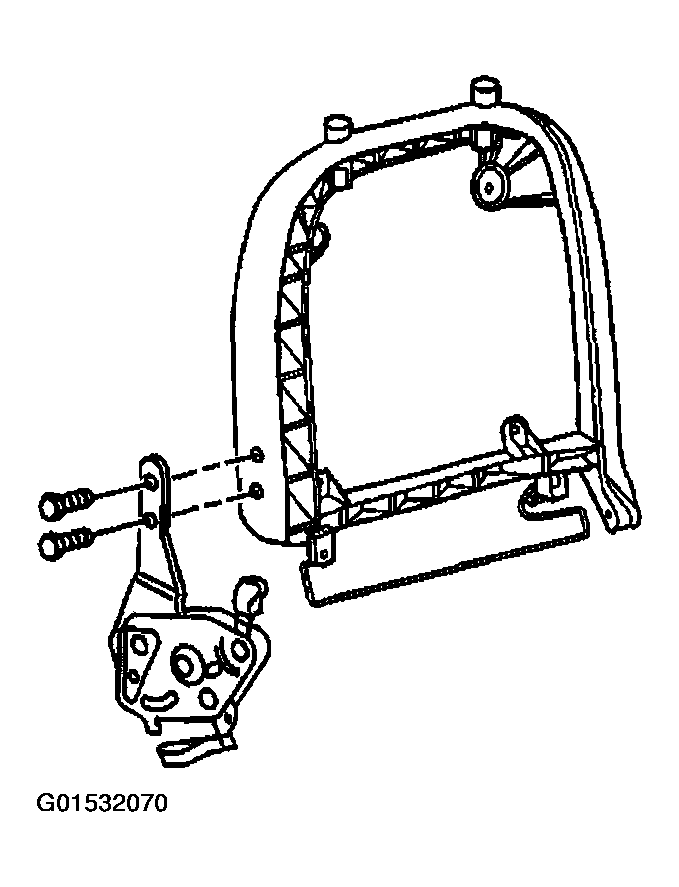

    Fig 3: Removing Recliner From Seat (AL4, AT5 & AM9)
    G01532070Courtesy of GENERAL MOTORS CORP.
