Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the recliner to the seat back.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the recliner to the seat back bolts.

    Tighten

    Tighten the recliner bolts to 32 N.m (24 lb ft).

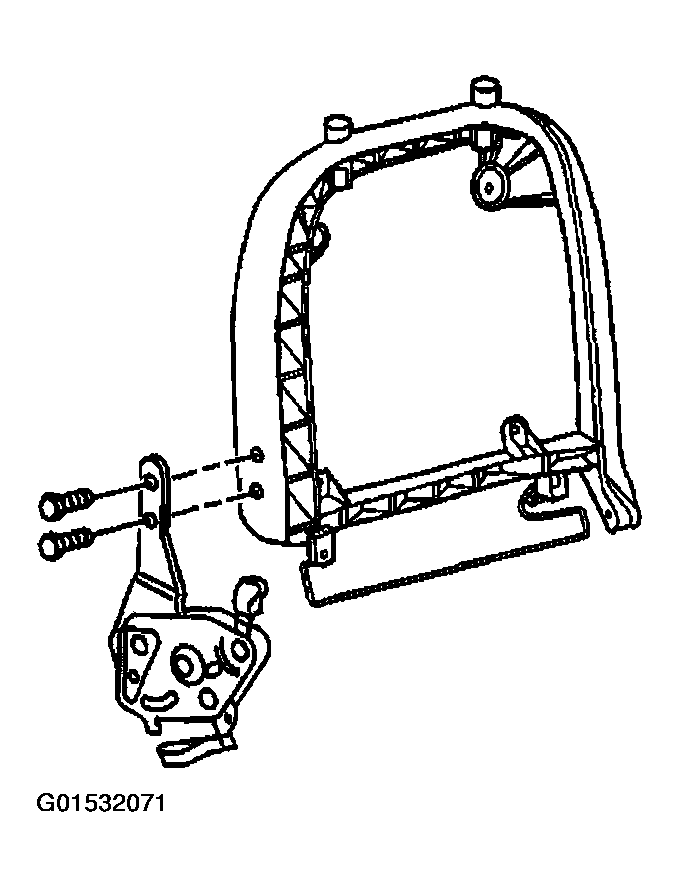

    Fig 1: Installing Recliner To Seat (AL4, AT5 & AM9)
    G01532071Courtesy of GENERAL MOTORS CORP.
  3. Install the recliner to the seat cushion bolts.

    Tighten

    Tighten the recliner bolts to 32 N.m (24 lb ft).

    Fig 2: Installing Recliner To Seat Cushion Bolts (AL4, AT5 & AM9)
    G01532072Courtesy of GENERAL MOTORS CORP.
  4. Install the seat back cover retainer at the bottom edge of the rear seat back cover.
  5. Install the recliner covers. Refer to SEAT BACK RECLINER COVER REPLACEMENT - REAR   .
  6. Install the seat. Refer to SEAT REPLACEMENT - REAR   .

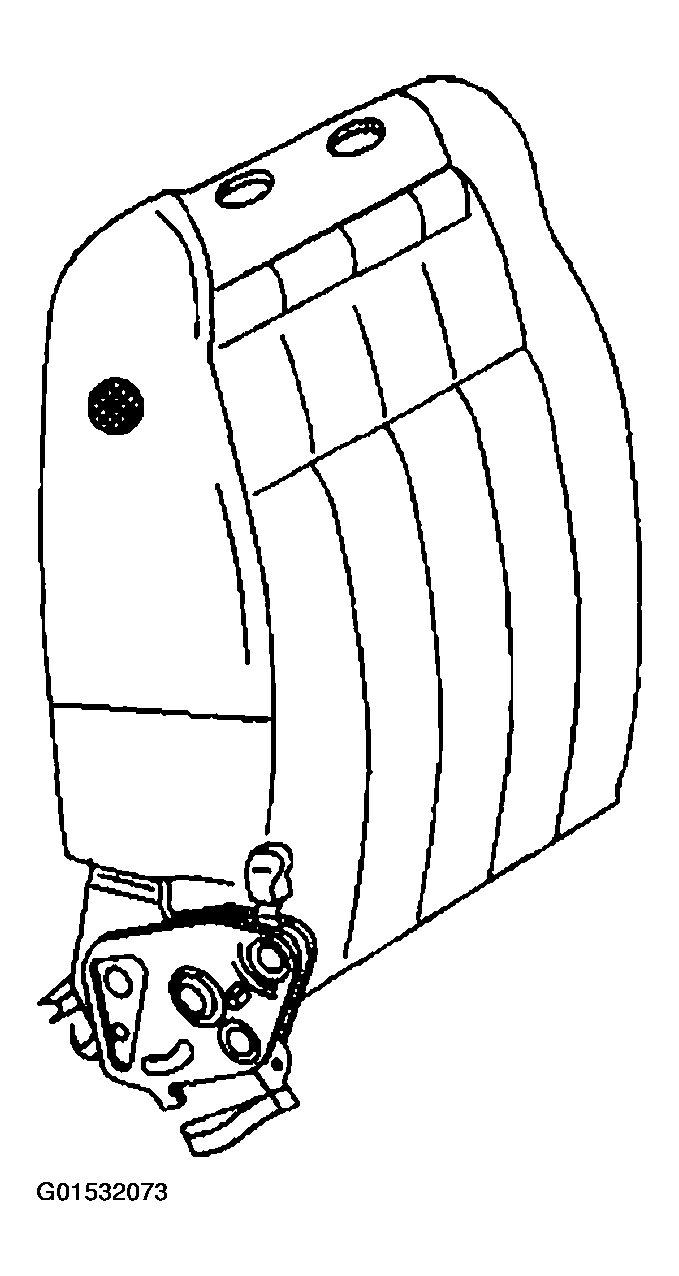

    Fig 3: Installing Seat Back Cover Retainer At Bottom Edge Of Rear Seat Back Cover (AL4, AT5 & AM9)
    G01532073Courtesy of GENERAL MOTORS CORP.
