Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Replace the entire seat back frame (1) and recliner assembly (4).
  2. Install the seat back cover. Refer to SEAT BACK COVER REPLACEMENT - FRONT   .
  3. Install the front seat. Refer to SEAT REPLACEMENT - BUCKET   .

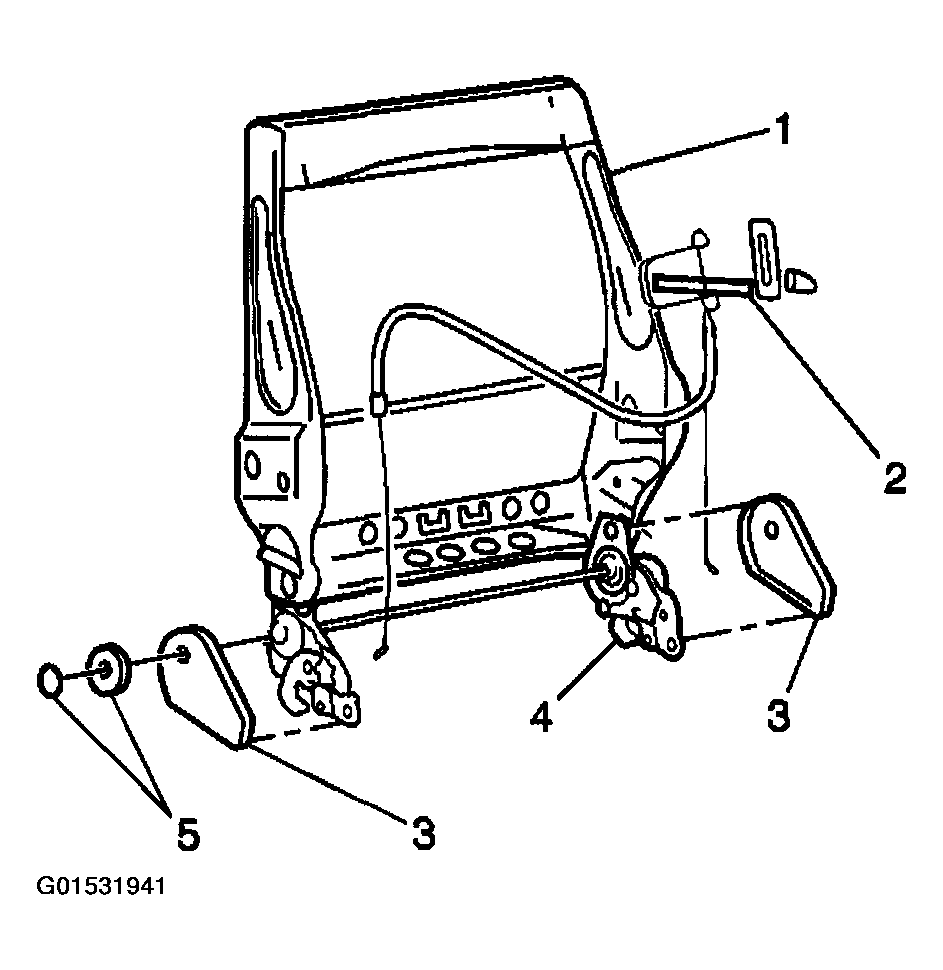

    Fig 1: Installing Front Seat Back Frame And Recliner Assembly
    G01531941Courtesy of GENERAL MOTORS CORP.
