Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the recliner handle on the recliner shaft.
  2. Push the recliner handle firmly onto the recliner shaft until fully seated.
  3. Install the plastic center cap into the center of the recliner handle.

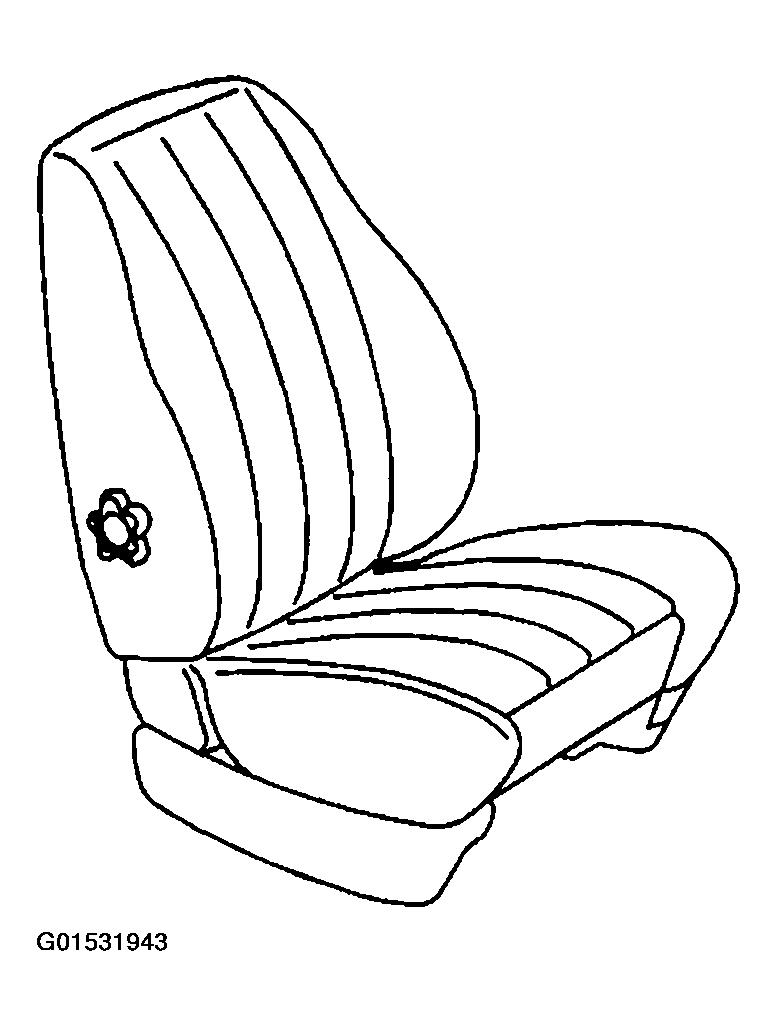

    Fig 1: Installing Front Seat Back Recliner Handle To Recliner Shaft
    G01531943Courtesy of GENERAL MOTORS CORP.
