Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the recliner cover screws.
  2. Separate the covers (4) from the recliner starting from the rear of the cover.

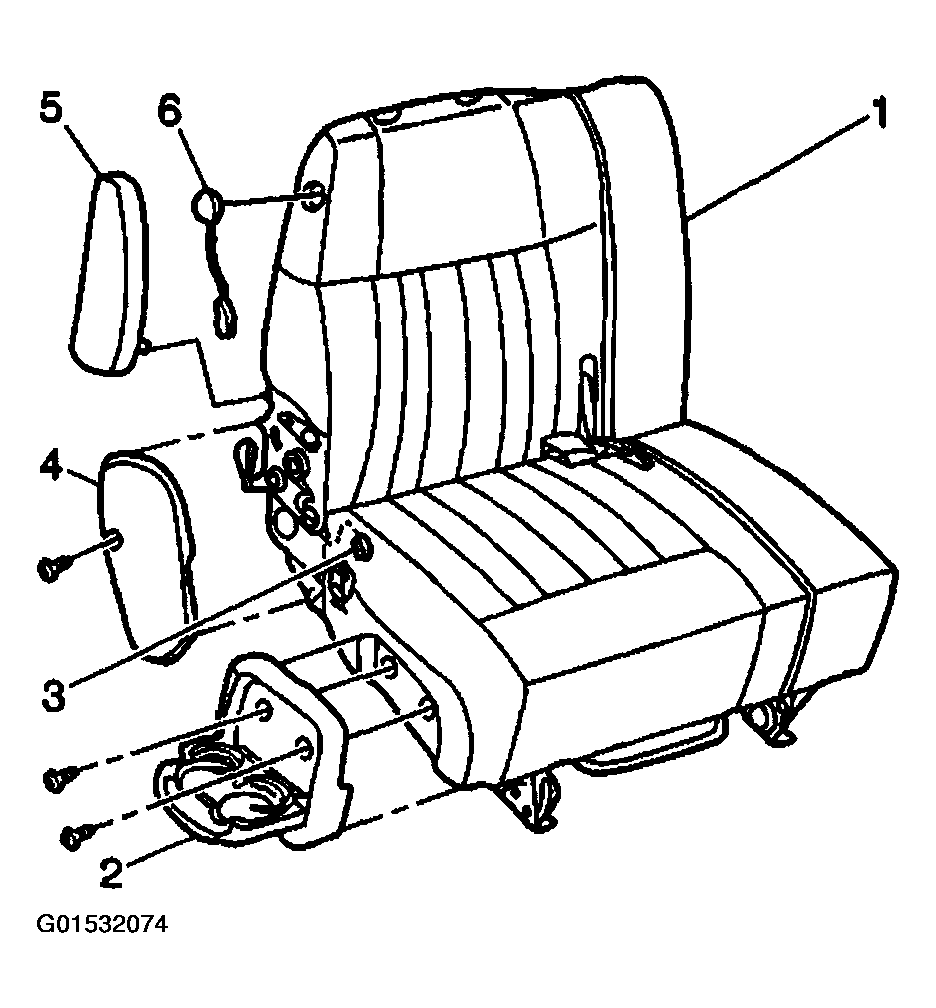

    Fig 1: Removing Rear Seat Back Recliner Cover
    G01532074Courtesy of GENERAL MOTORS CORP.
