Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cover (3) to the recliner starting from the front of the cover.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the recliner cover screws.

    Tighten

    Tighten the recliner cover screws to 2 N.m (18 lb in).

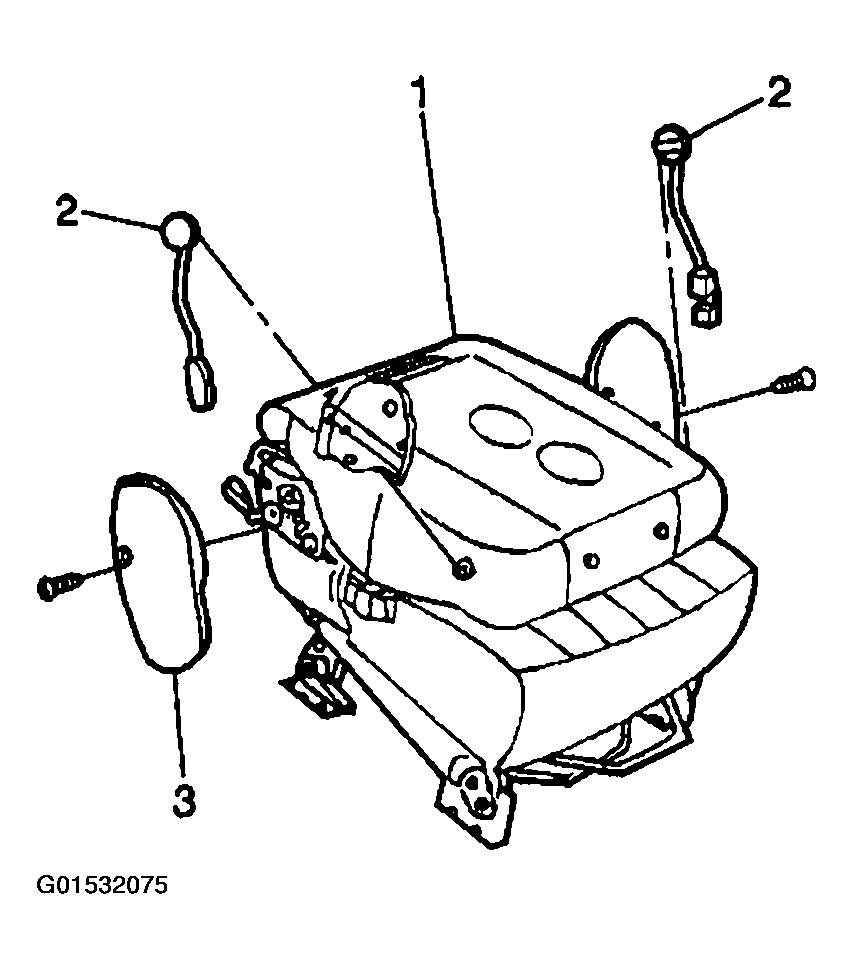

    Fig 1: Installing Rear Seat Back Recliner Cover
    G01532075Courtesy of GENERAL MOTORS CORP.
