Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat back cover. Refer to SEAT BACK COVER REPLACEMENT - FRONT   .
  2. Remove the seat back cushion pad from the frame.

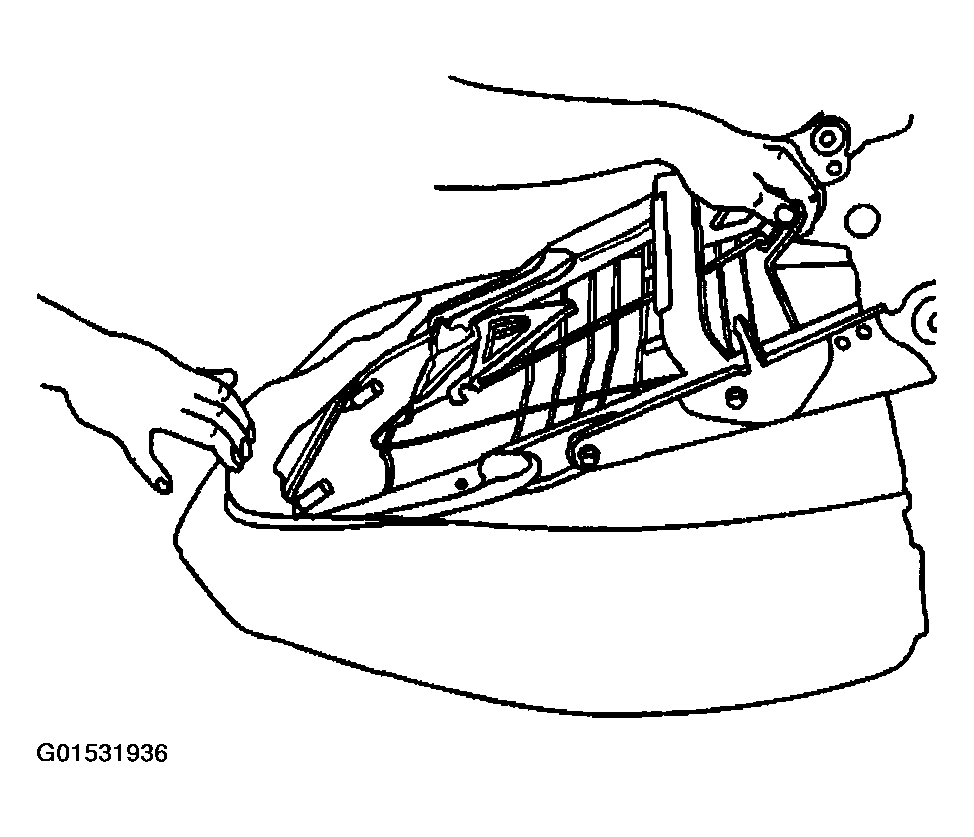

    Fig 1: Removing Front Seat Back Cushion Pad From Frame
    G01531936Courtesy of GENERAL MOTORS CORP.
