Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat back cushion pad to the frame.
  2. Install the seat back cover. Refer to SEAT BACK COVER REPLACEMENT - FRONT   .

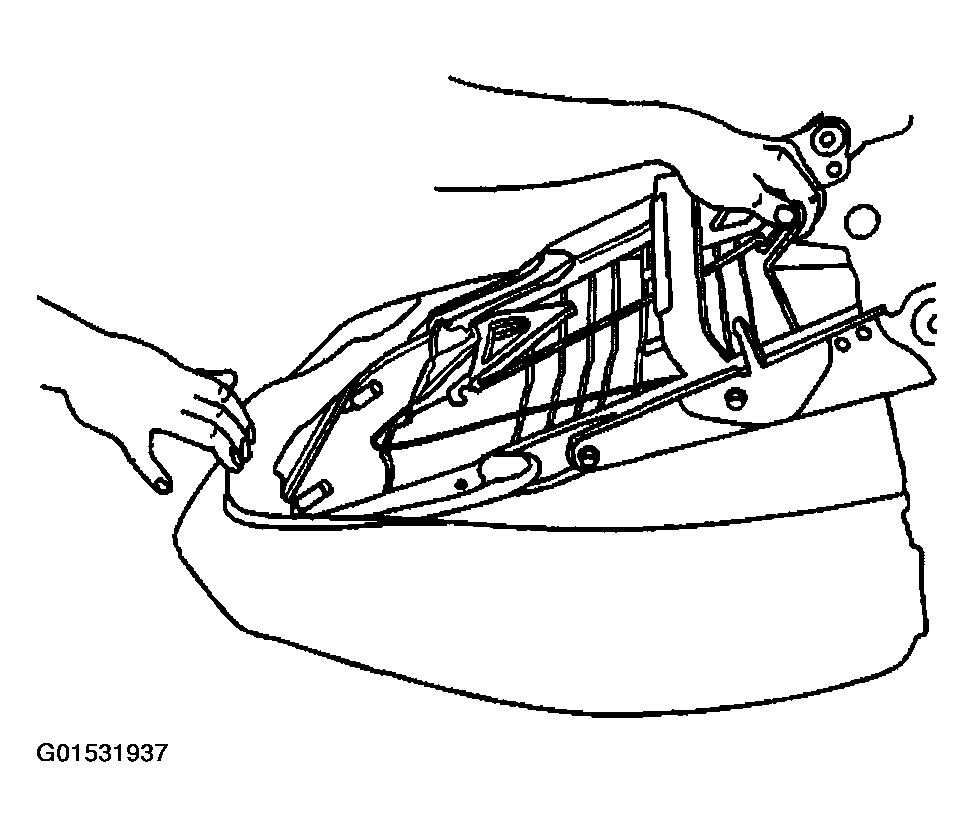

    Fig 1: Installing Front Seat Back Cushion Pad To Frame
    G01531937Courtesy of GENERAL MOTORS CORP.
