Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear seat back pad to the seat back frame.
  2. Install the rear seat back cover over the foam pad.

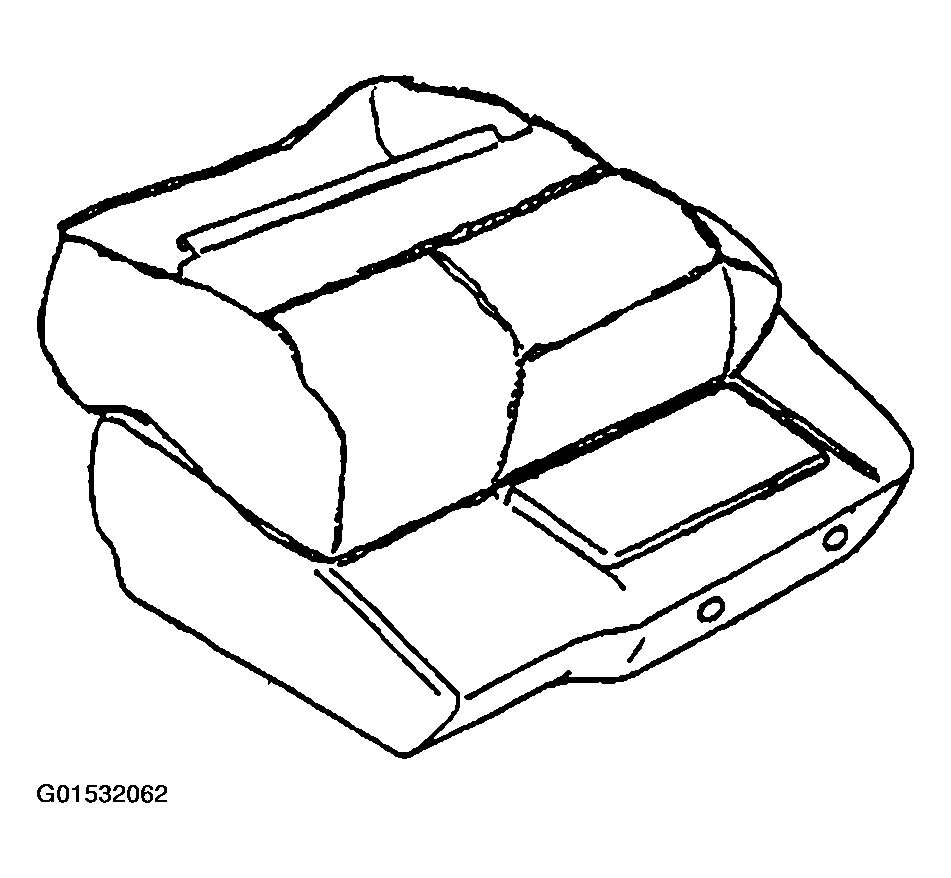

    Fig 1: Installing Rear Seat Back Pad To Seat Back Frame (AM9 - 50/50 Split Bench)
    G01532062Courtesy of GENERAL MOTORS CORP.
  3. Secure the rear seat back cover to the foam pad using retainer rings and the hook and loop retainers (1).

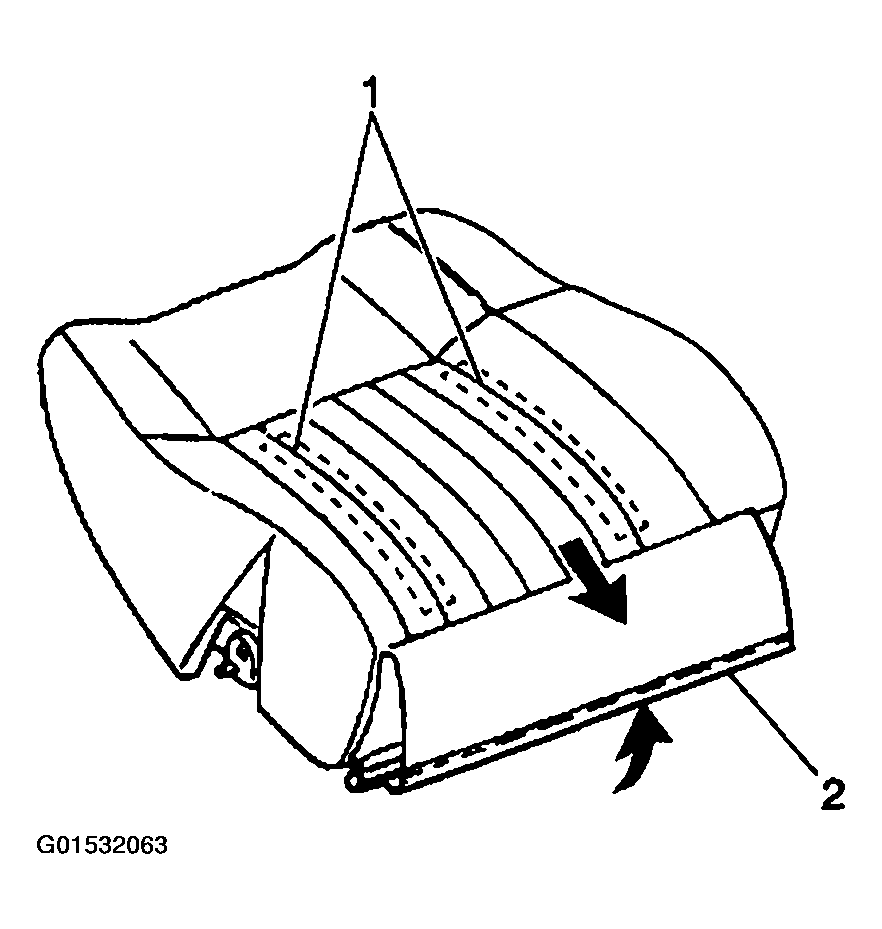

    Fig 2: Securing Rear Seat Back Cover To Foam Pad (AM9 - 50/50 Split Bench)
    G01532063Courtesy of GENERAL MOTORS CORP.
  4. Install the rear seat back to the rear seat cushion.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

    Install the recliner bolts.

    Tighten

    Tighten the recliner bolts to 32 N.m (24 lb ft).

  5. Install the rear seat back foam and cover over the recliner bolts.
  6. Install the rear seat back recliner cover. Refer to SEAT BACK RECLINER COVER REPLACEMENT - REAR   .

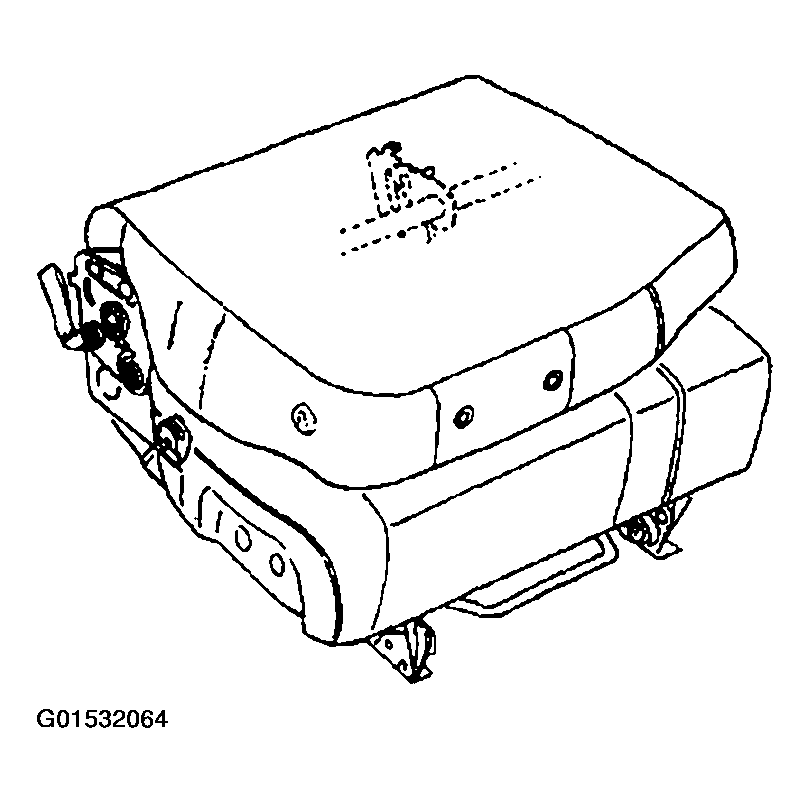

    Fig 3: Installing Rear Seat Back Foam And Cover Over Recliner Bolts (AM9 - 50/50 Split Bench)
    G01532064Courtesy of GENERAL MOTORS CORP.
  7. Install the seat back cover retainer (1) at the bottom of the rear seat back cover.
  8. Install the rear seat back finish panel. Refer to SEAT BACK FILLER PANEL REPLACEMENT - REAR   .
  9. Install the head restraint. Refer to HEAD RESTRAINT REPLACEMENT - REAR SEAT   .
  10. Install the third row 50/50 split bench seat. Refer to SEAT REPLACEMENT - REAR   .

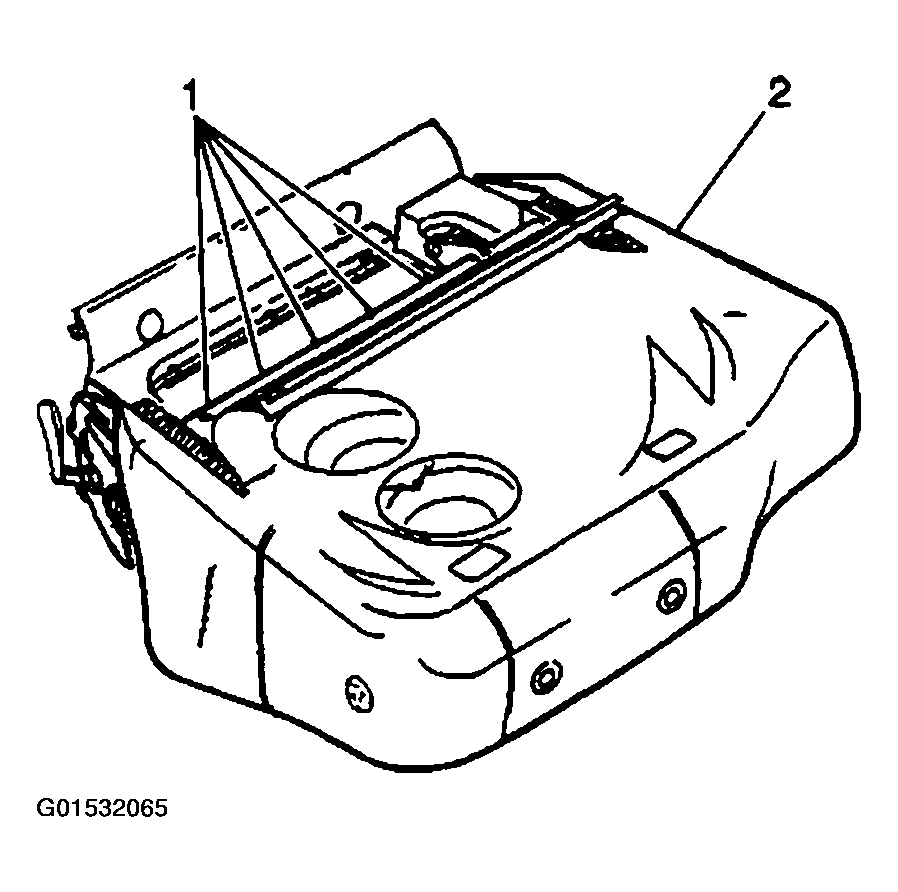

    Fig 4: Installing Seat Back Cover Retainer At Bottom Of Rear Seat Back Cover (AM9 - 50/50 Split Bench)
    G01532065Courtesy of GENERAL MOTORS CORP.
