Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear seat back pad (2) to the seat back frame (1).

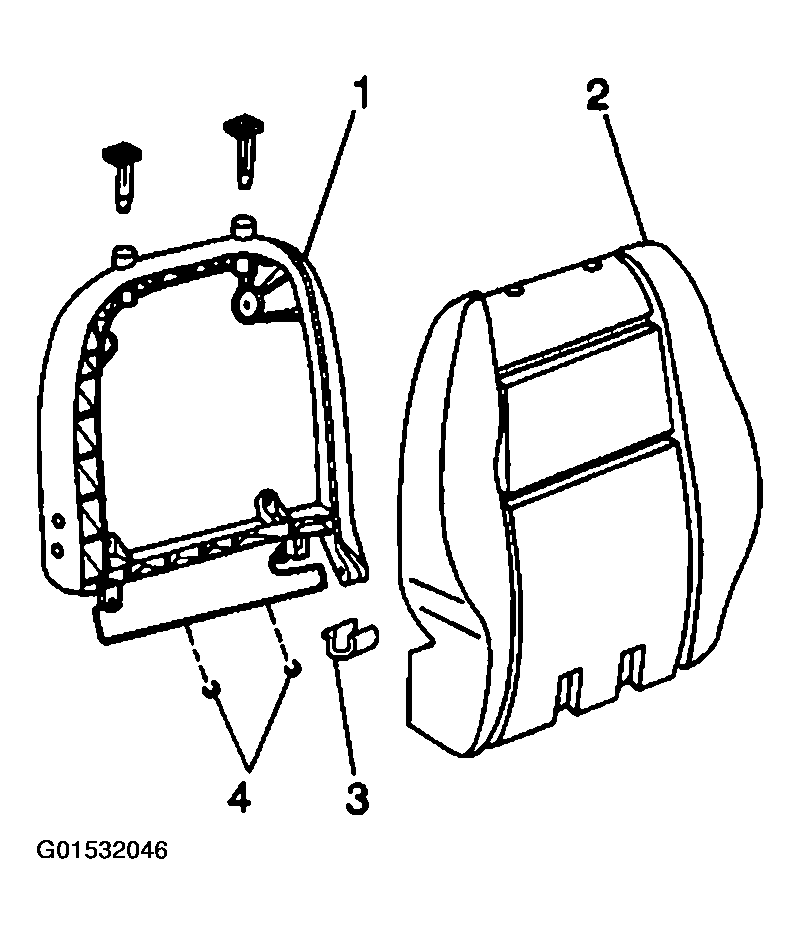

    Fig 1: Installing Rear Seat Back Pad To Seat Back Frame (AL4 - Bucket)
    G01532046Courtesy of GENERAL MOTORS CORP.
  2. Install the rear seat back cover over the foam pad.
  3. Secure the rear seat back cover to the foam pad using retainer rings and the hook and loop retainers.
  4. Install the rear seat back to the rear seat cushion.

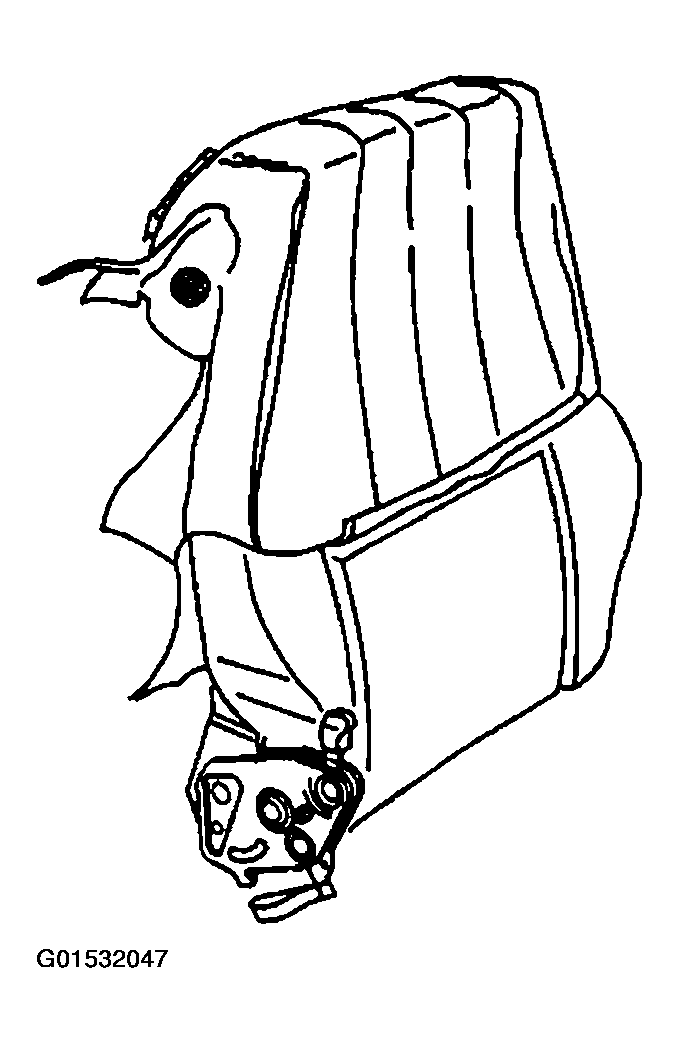

    Fig 2: Installing Rear Seat Back Cover Over Foam Pad (AL4 - Bucket)
    G01532047Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the recliner bolts.

    Tighten

    Tighten the recliner bolts to 32 N.m (24 lb ft).

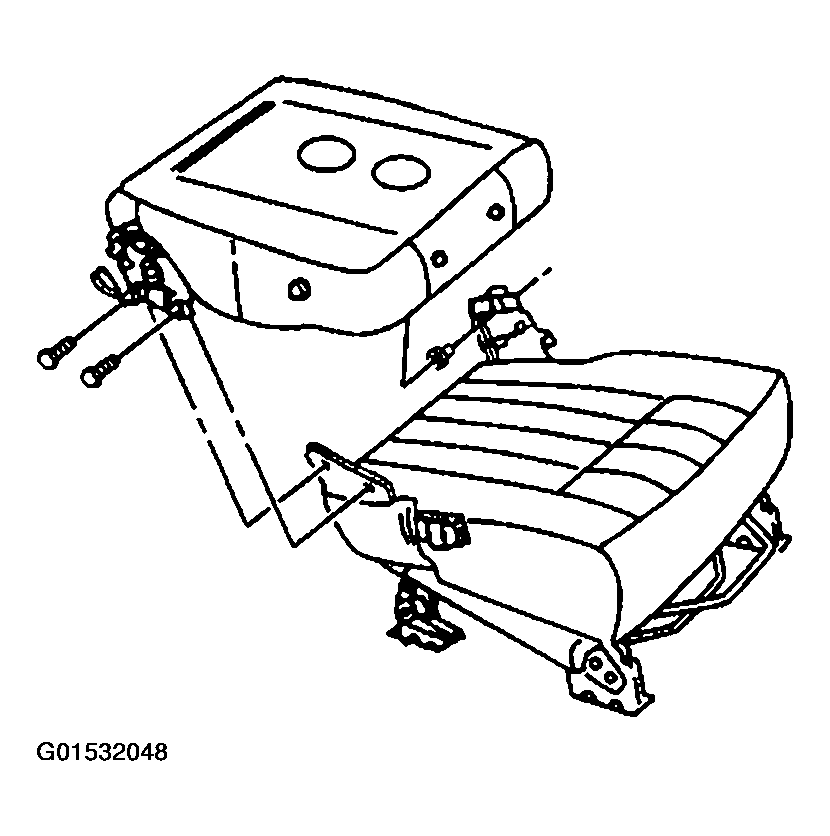

    Fig 3: Installing Rear Seat Back To Rear Seat Cushion (AL4 - Bucket)
    G01532048Courtesy of GENERAL MOTORS CORP.
  6. Install the rear seat back foam and cover over the recliner bolts.
  7. Install the rear seat back recliner cover. Refer to SEAT BACK RECLINER COVER REPLACEMENT - REAR   .
  8. Install the J retainer at the bottom edge of the rear seat back cover.
  9. Install the rear seat back finish panel. Refer to SEAT BACK FILLER PANEL REPLACEMENT - REAR   .
  10. Install the head restraint. Refer to HEAD RESTRAINT REPLACEMENT - REAR SEAT   .
  11. Install the second row bucket seat. Refer to SEAT REPLACEMENT - REAR   .

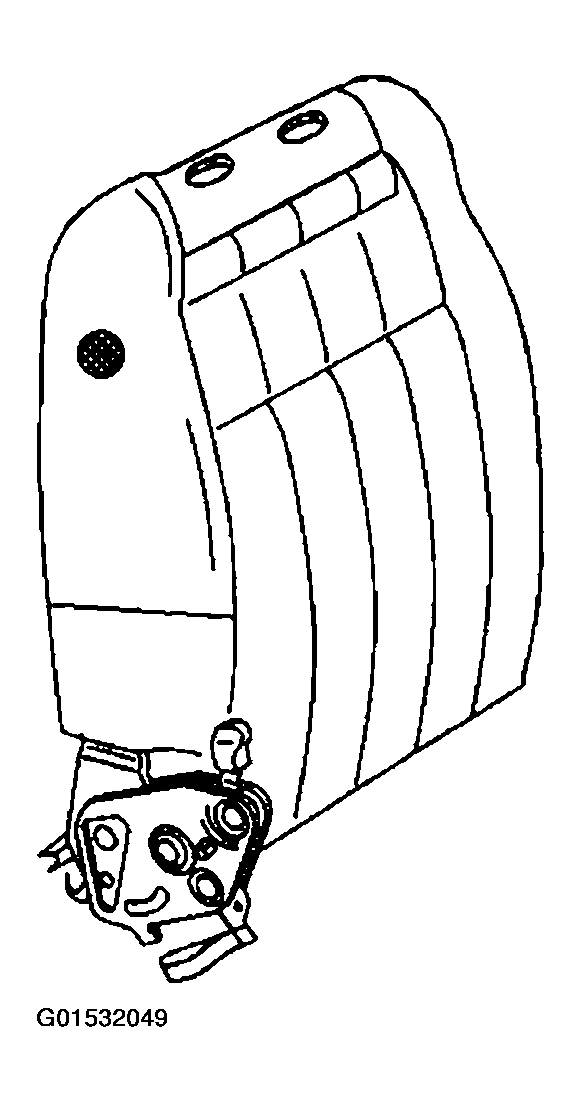

    Fig 4: Installing Recliner Bolts (AL4 - Bucket)
    G01532049Courtesy of GENERAL MOTORS CORP.
