Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat. Refer to SEAT REPLACEMENT - REAR   .
  2. Remove the seat riser. Refer to SEAT RISER REPLACEMENT - REAR   .
  3. Remove the seat adjuster bolts.
  4. Remove the seat adjuster from the seat.

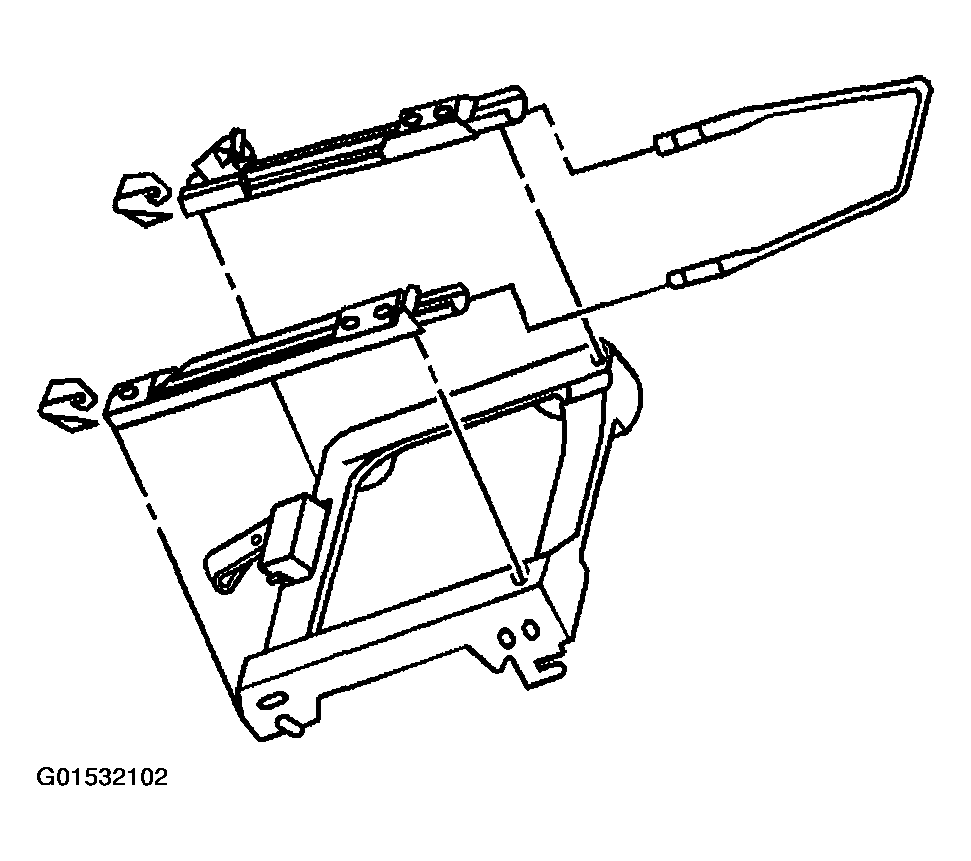

    Fig 1: Removing Rear Seat Adjuster From Rear Seat
    G01532102Courtesy of GENERAL MOTORS CORP.
