Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat adjuster to the seat.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the seat adjuster bolts.

    Tighten

    Tighten the bolts to 32 N.m (24 lb ft).

  3. Install the seat riser. Refer to SEAT RISER REPLACEMENT - REAR   .
  4. Install the seat. Refer to SEAT REPLACEMENT - REAR   .

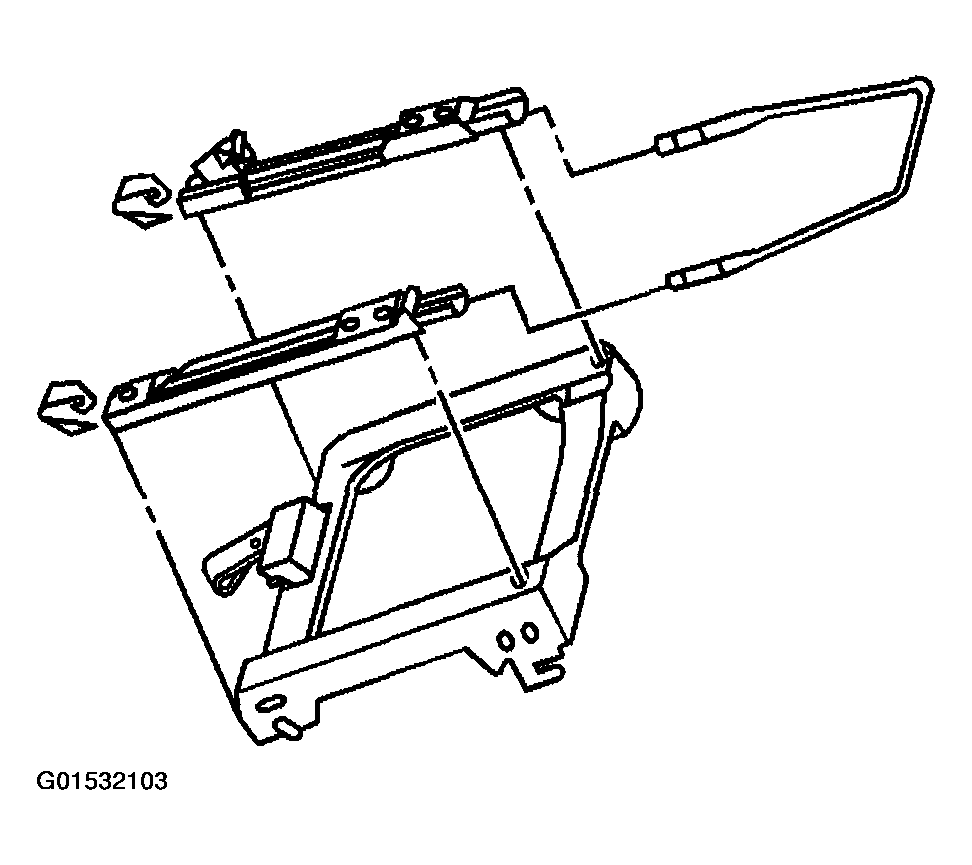

    Fig 1: Installing Rear Seat Adjuster To Rear Seat
    G01532103Courtesy of GENERAL MOTORS CORP.
