Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat. Refer to SEAT REPLACEMENT - BUCKET   .
  2. Remove the finish covers. Refer to SEAT ADJUSTER TRACK COVER REPLACEMENT - FRONT   .
  3. Remove the seat belt buckle with pretensioner. Refer to SEAT BELT PRETENSIONER in Airbag.
  4. Cut the cable strap that secures the seat belt warning lamp wire to the seat frame.
  5. Remove the seat adjuster bolts.
  6. Remove the seat adjuster (1) from the seat frame (4).

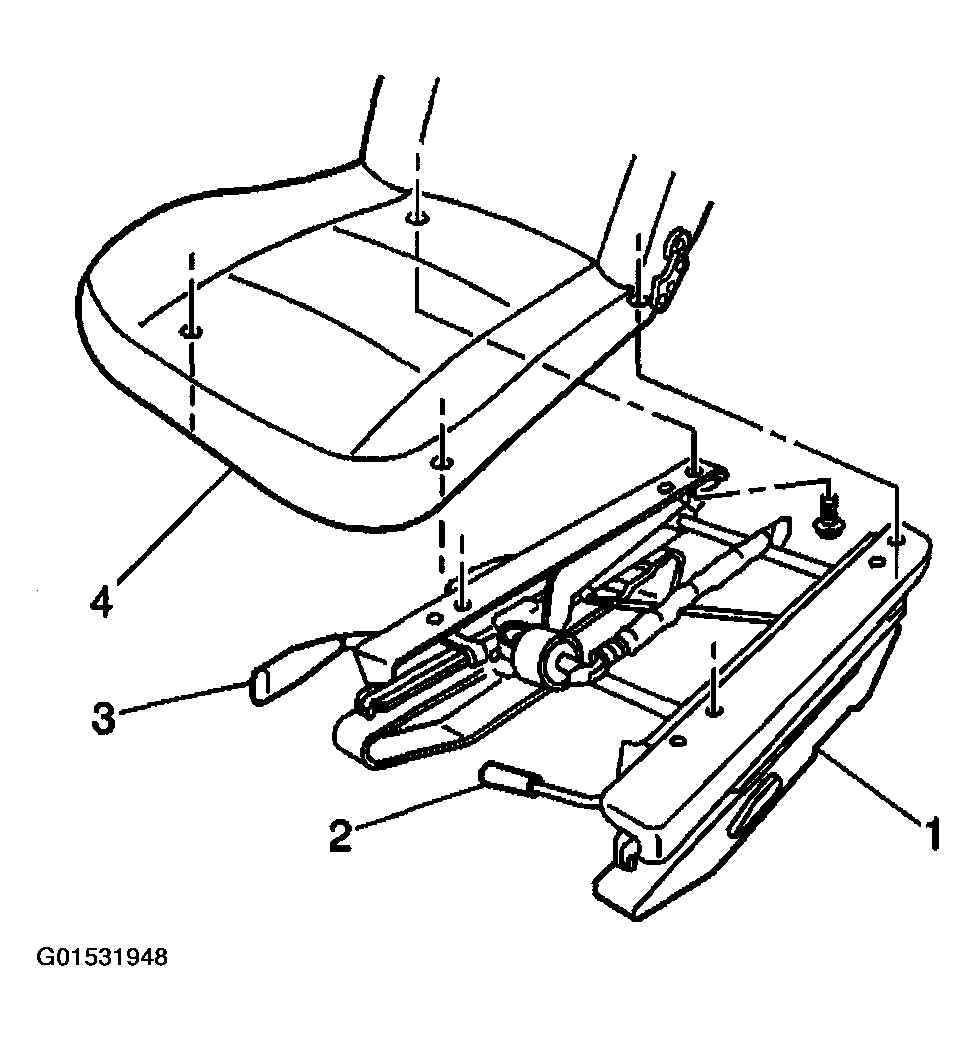

    Fig 1: Removing Four-Way Manual Seat Adjuster From Seat Frame
    G01531948Courtesy of GENERAL MOTORS CORP.
