Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the head restraint. Refer to HEAD RESTRAINT REPLACEMENT - REAR SEAT   .
  2. Fold the rear seat down.
  3. Remove the seat back cover retainer at the bottom edge of the seat back cover.
  4. Carefully reach inside the rear seat back and squeeze together the bottom of the head restraint guide.
  5. Remove the head restraint guide from the seat back frame.

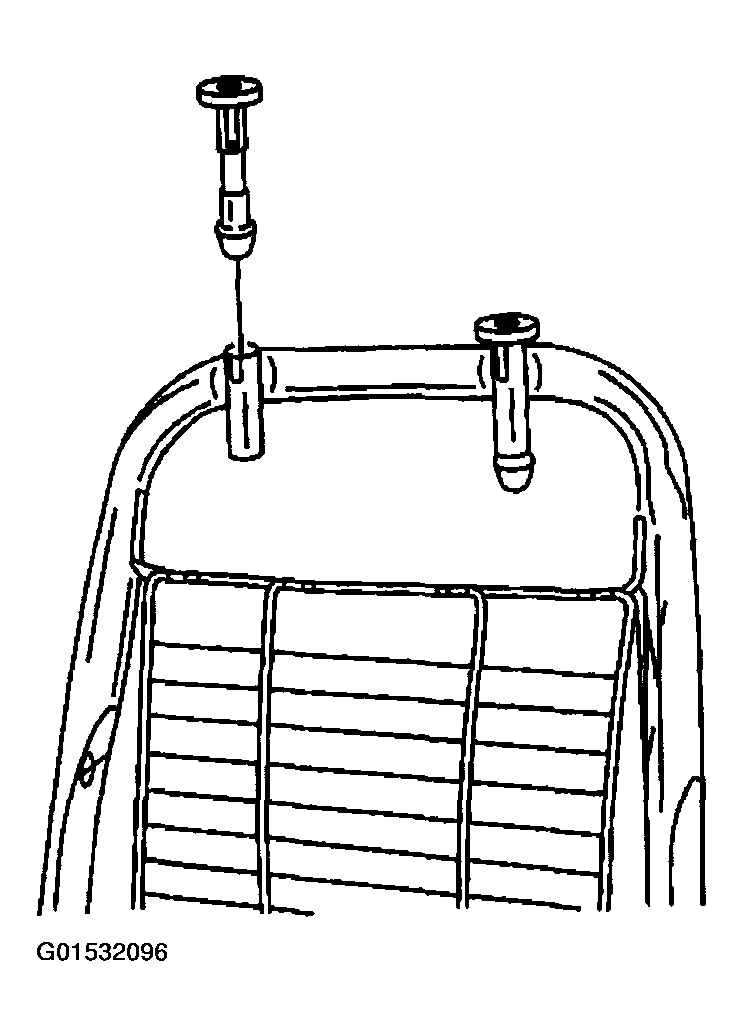

    Fig 1: Removing Head Restraint Guide From Rear Seat Back Frame
    G01532096Courtesy of GENERAL MOTORS CORP.
