Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the head restraint guide into the seat back frame. Make sure it locks into place.
  2. Install the seat back cover retainer at the bottom edge of the seat back cover.
  3. Return the seat back to the upright position.
  4. Install the head restraint. Refer to HEAD RESTRAINT REPLACEMENT - REAR SEAT   .

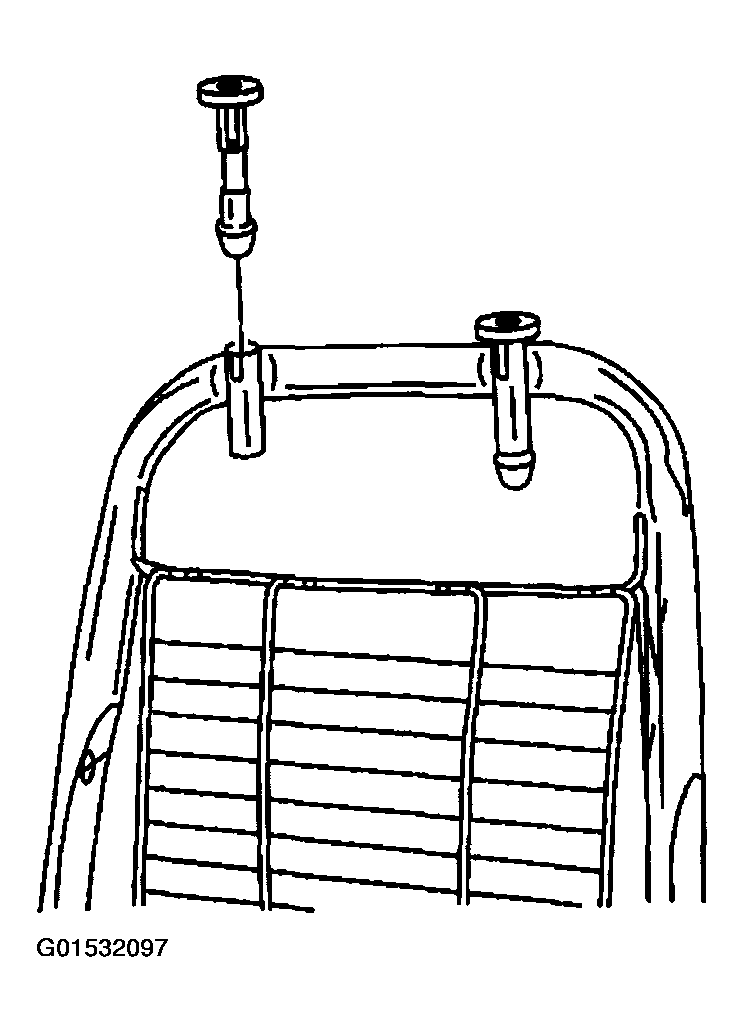

    Fig 1: Installing Head Restraint Guide To Rear Seat Back Frame
    G01532097Courtesy of GENERAL MOTORS CORP.
