Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the head restraint. Refer to HEAD RESTRAINT REPLACEMENT - FRONT SEAT   .
  2. Remove the seat back cover. Refer to SEAT BACK COVER REPLACEMENT - FRONT   .
  3. Remove the seat back pad. Refer to SEAT BACK PAD REPLACEMENT - FRONT   .
  4. Squeeze the bottom of the head restraint guide together and pull the head restraint guide from the seat back frame.

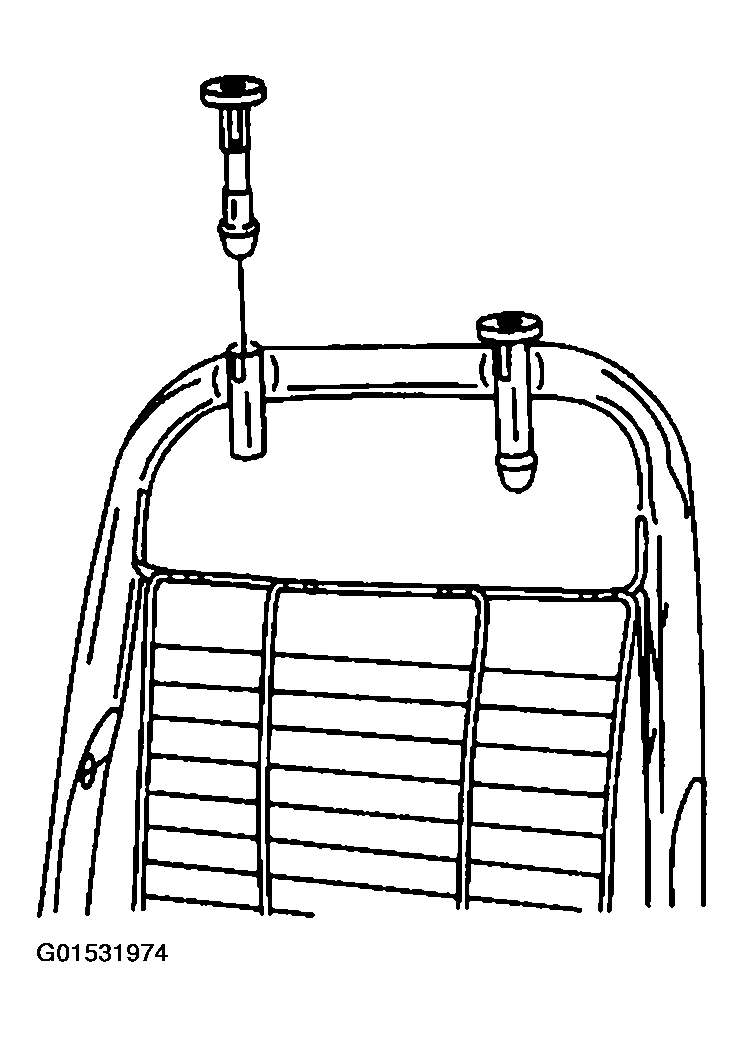

    Fig 1: Removing Head Restraint Guide From Seat Back Frame
    G01531974Courtesy of GENERAL MOTORS CORP.
