Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Push the head restraint guide into the seat back frame. Make sure it locks into place.
  2. Install the seat back pad. Refer to SEAT BACK PAD REPLACEMENT - FRONT   .
  3. Install the eat back cover. Refer to SEAT BACK COVER REPLACEMENT - FRONT   .
  4. Install the head restraint. Refer to HEAD RESTRAINT REPLACEMENT - FRONT SEAT   .

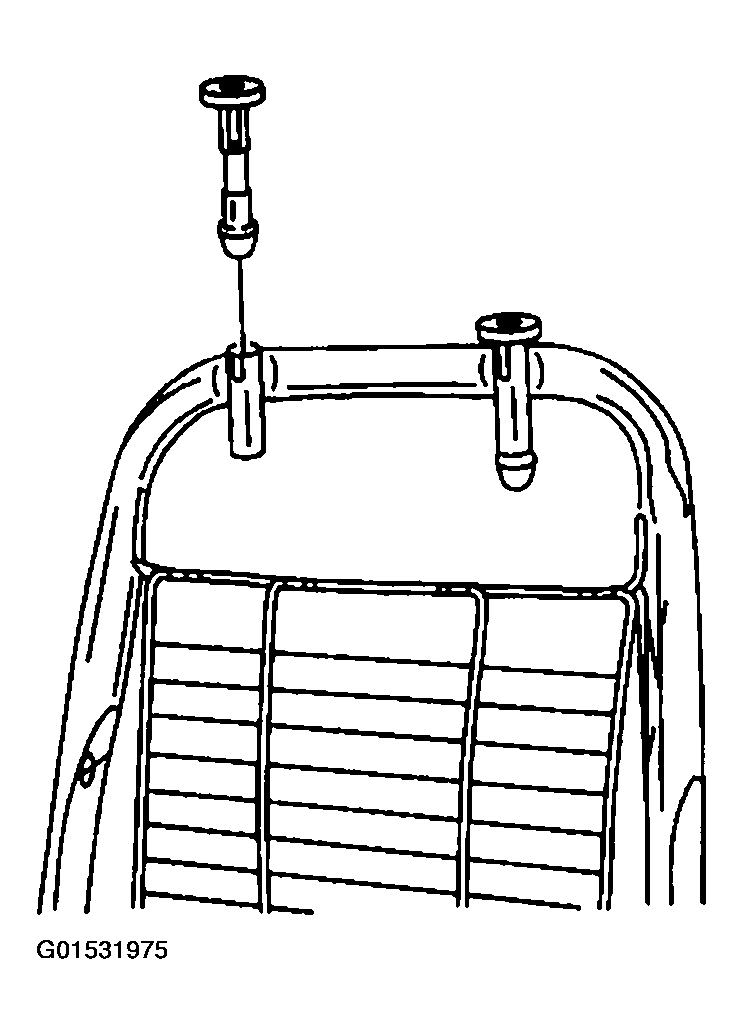

    Fig 1: Installing Head Restraint Guide To Seat Back Frame
    G01531975Courtesy of GENERAL MOTORS CORP.
