Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the head restraint posts (1) into the guides.
  2. Push the head restraint to a full down position.
  3. Raise the head restraint in order to ensure that the restraint stops at the detent (3).
  4. Return the head restraint to its original position.

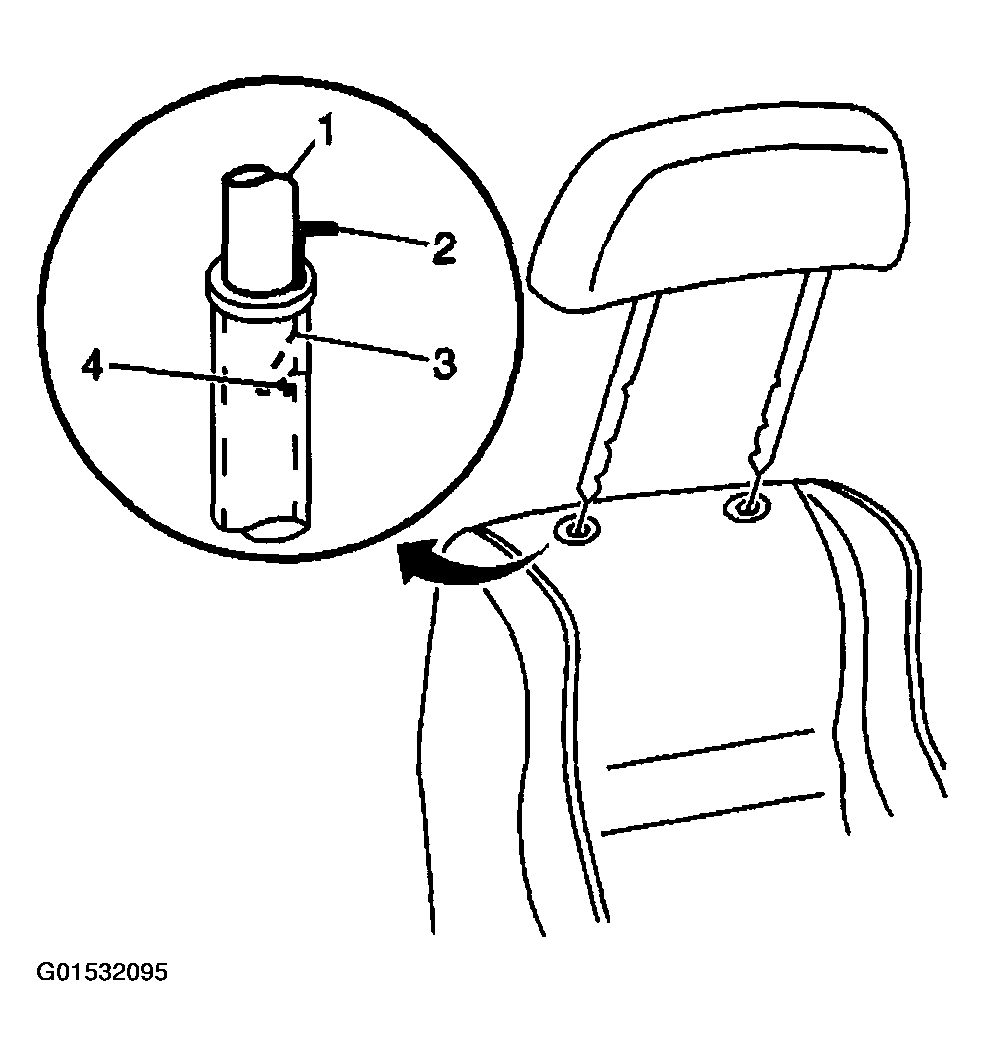

    Fig 1: Installing Rear Seat Head Restraint
    G01532095Courtesy of GENERAL MOTORS CORP.
