Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Push the head restraint to a full down position in order to install the head restraint posts (1) into the guides (4).
  2. Raise the head restraint in order to ensure that the restraint stops at the detent (3).
  3. Return the head restraint to its original position.

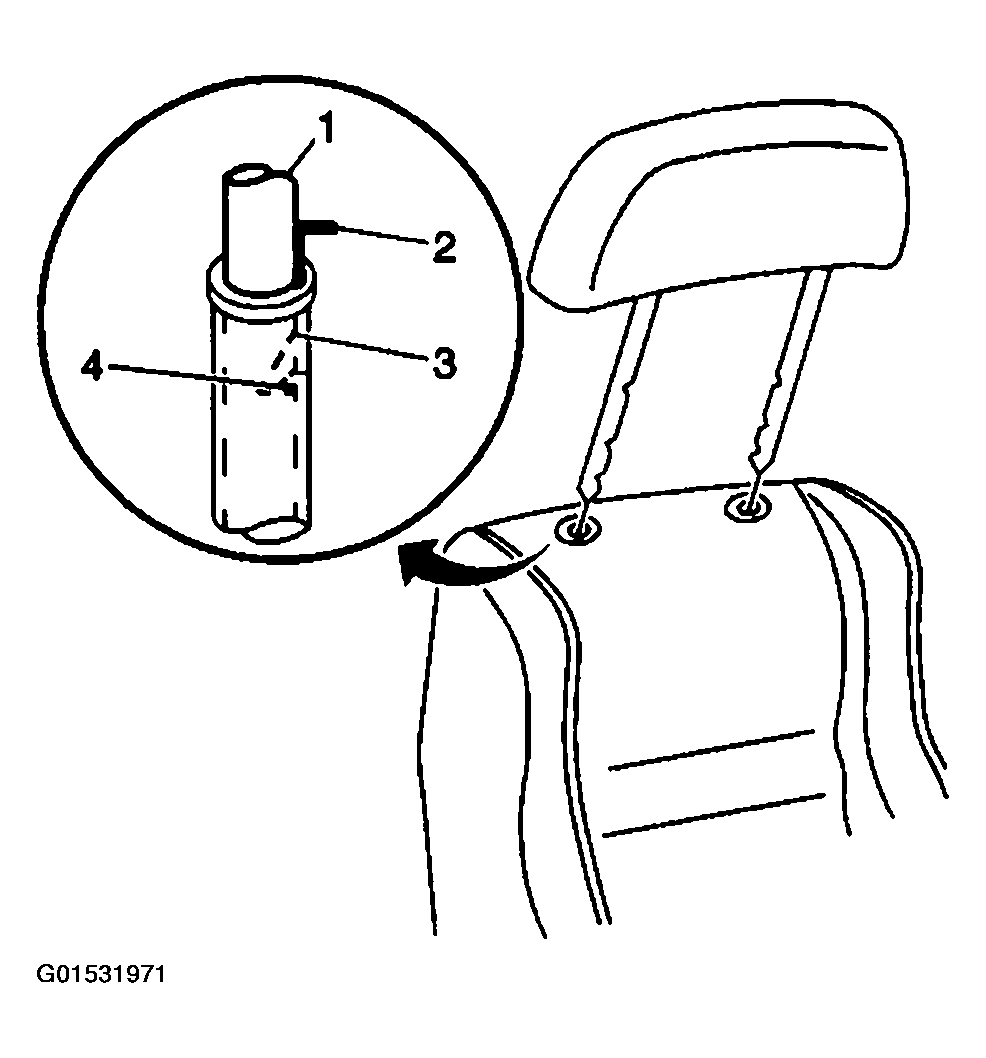

    Fig 1: Installing Front Seat Head Restraint
    G01531971Courtesy of GENERAL MOTORS CORP.
