The Description

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

2. Verify that the DTC is current or history by attempting to operate the seat adjuster motor for which the code is set.

3. Tests the adjuster motor control circuits for proper operation.

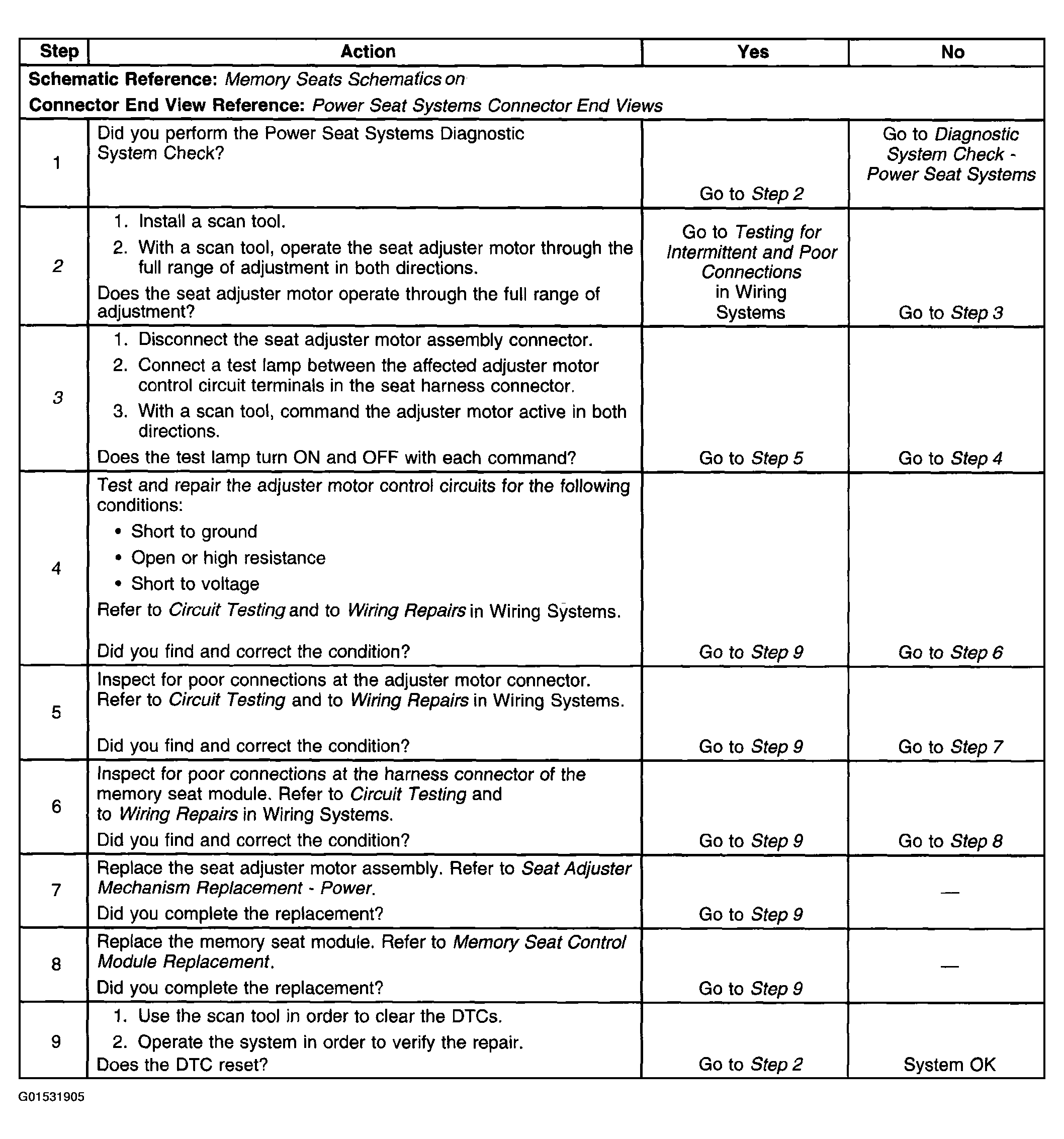

Fig 1: Diagnostic Check - DTC B1770, B1775, B1780, B1785, B1790, B1805 Or B2415
G01531905Courtesy of GENERAL MOTORS CORP.
