Test Description

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

3. This step tests the seat adjuster switch for an internal fault.

4. When the seat adjuster switch is disconnected the faulty switch signal circuit will be isolated.

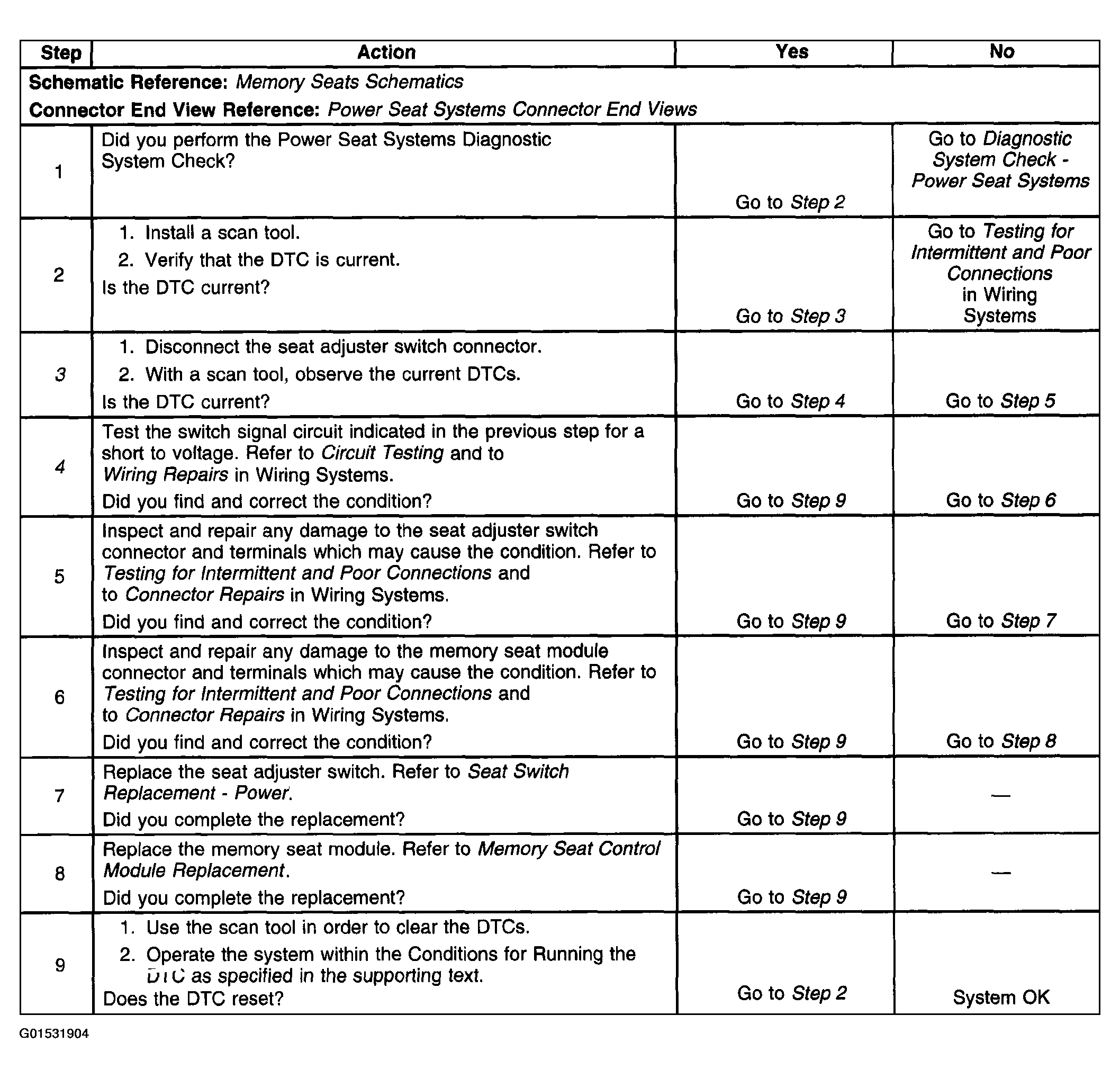

Fig 1: Diagnostic Check - DTC B1735, B1740, B1745, B1750, B1755, B1760, B1815 Or B1820
G01531904Courtesy of GENERAL MOTORS CORP.
