WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

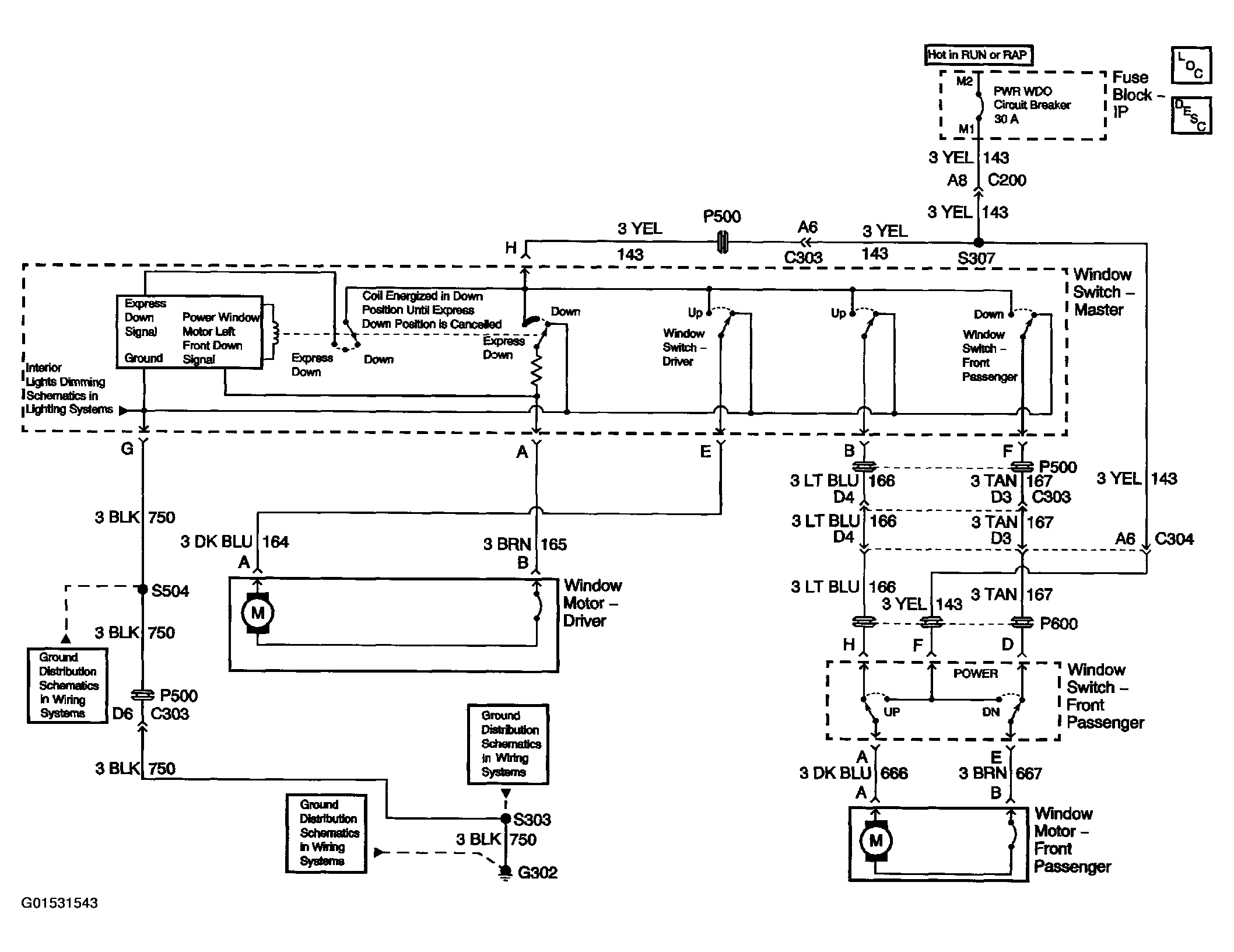

Fig 1: Power Window Schematics
Courtesy of GENERAL MOTORS CORP.

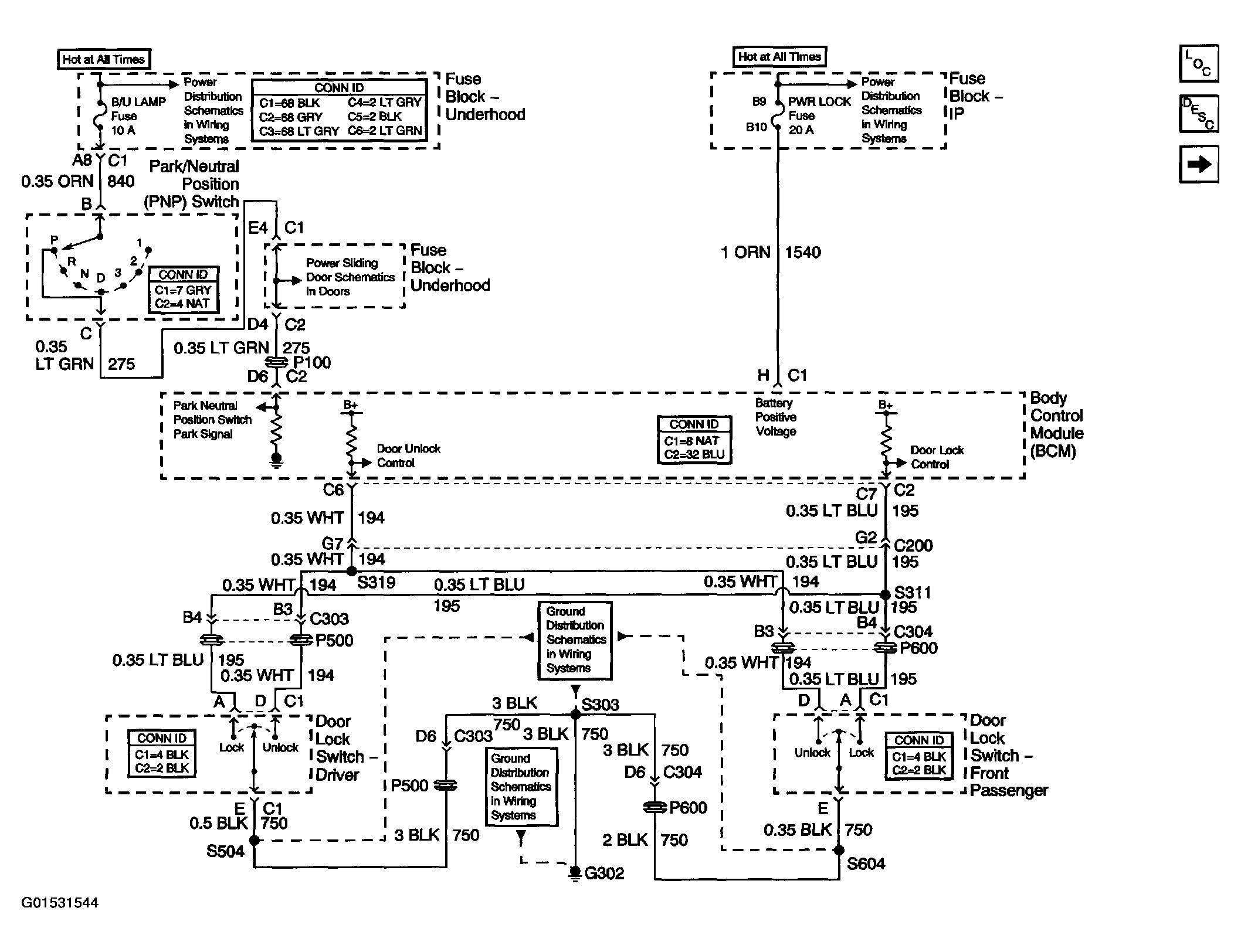

Fig 2: Door Lock/Indicator Schematic (Door Lock Switches)
Courtesy of GENERAL MOTORS CORP.

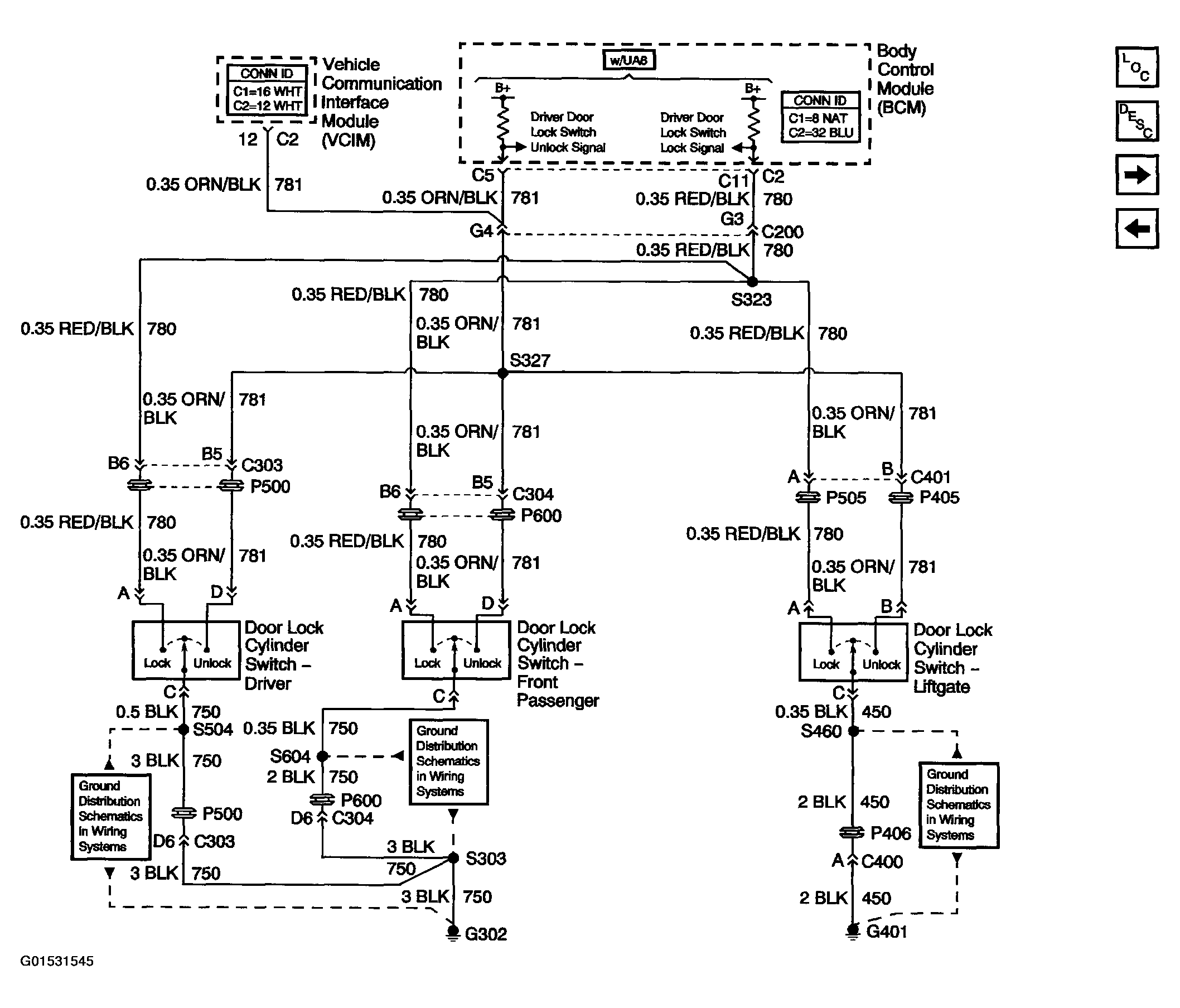

Fig 3: Door Lock/Indicator Schematics (Key Cylinder Switches)
Courtesy of GENERAL MOTORS CORP.

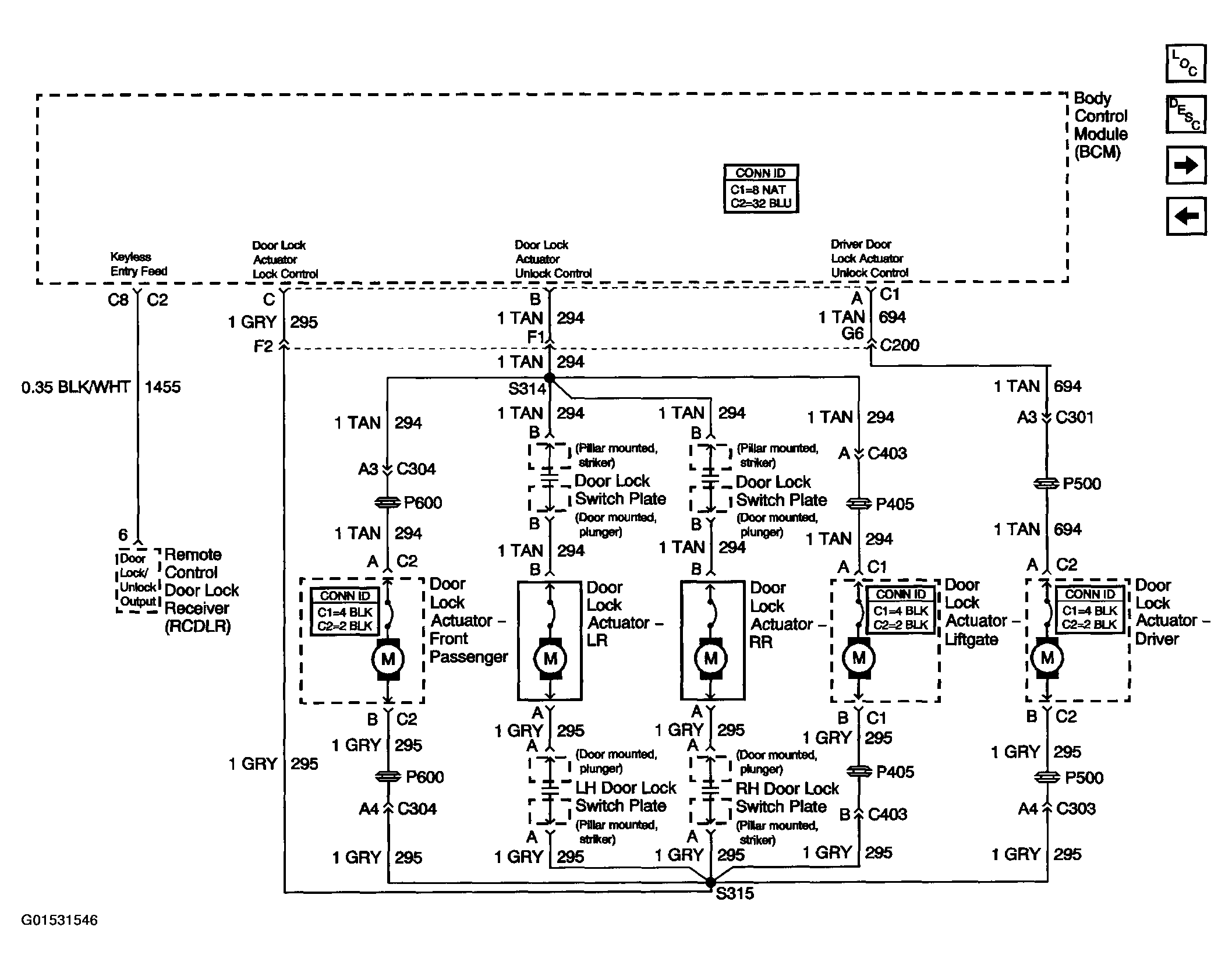

Fig 4: Door Lock/Indicator Schematics (Door Lock Actuators)
Courtesy of GENERAL MOTORS CORP.

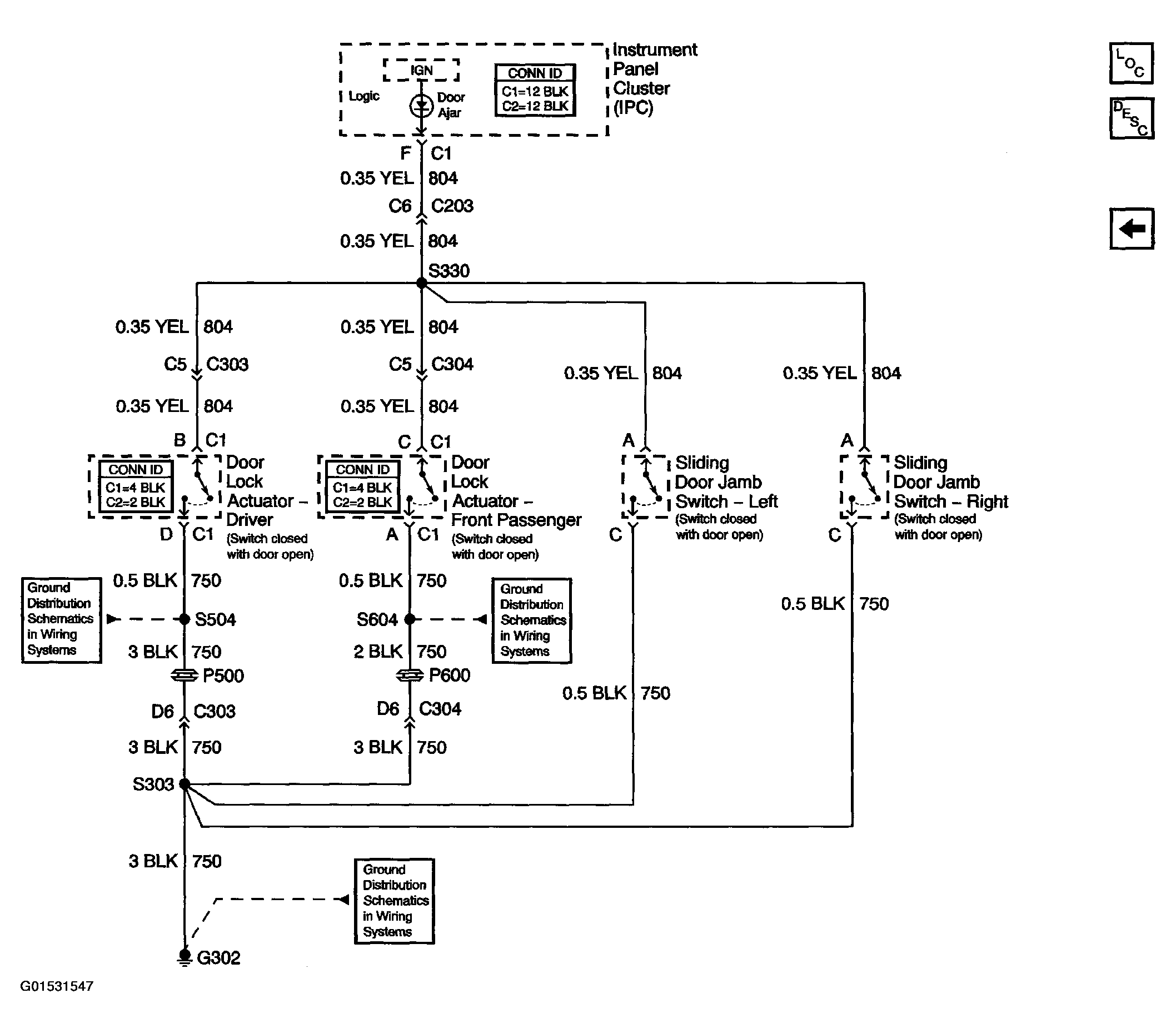

Fig 5: Door Lock/Indicator Schematics (PC DOOR AJAR Telltale)
Courtesy of GENERAL MOTORS CORP.

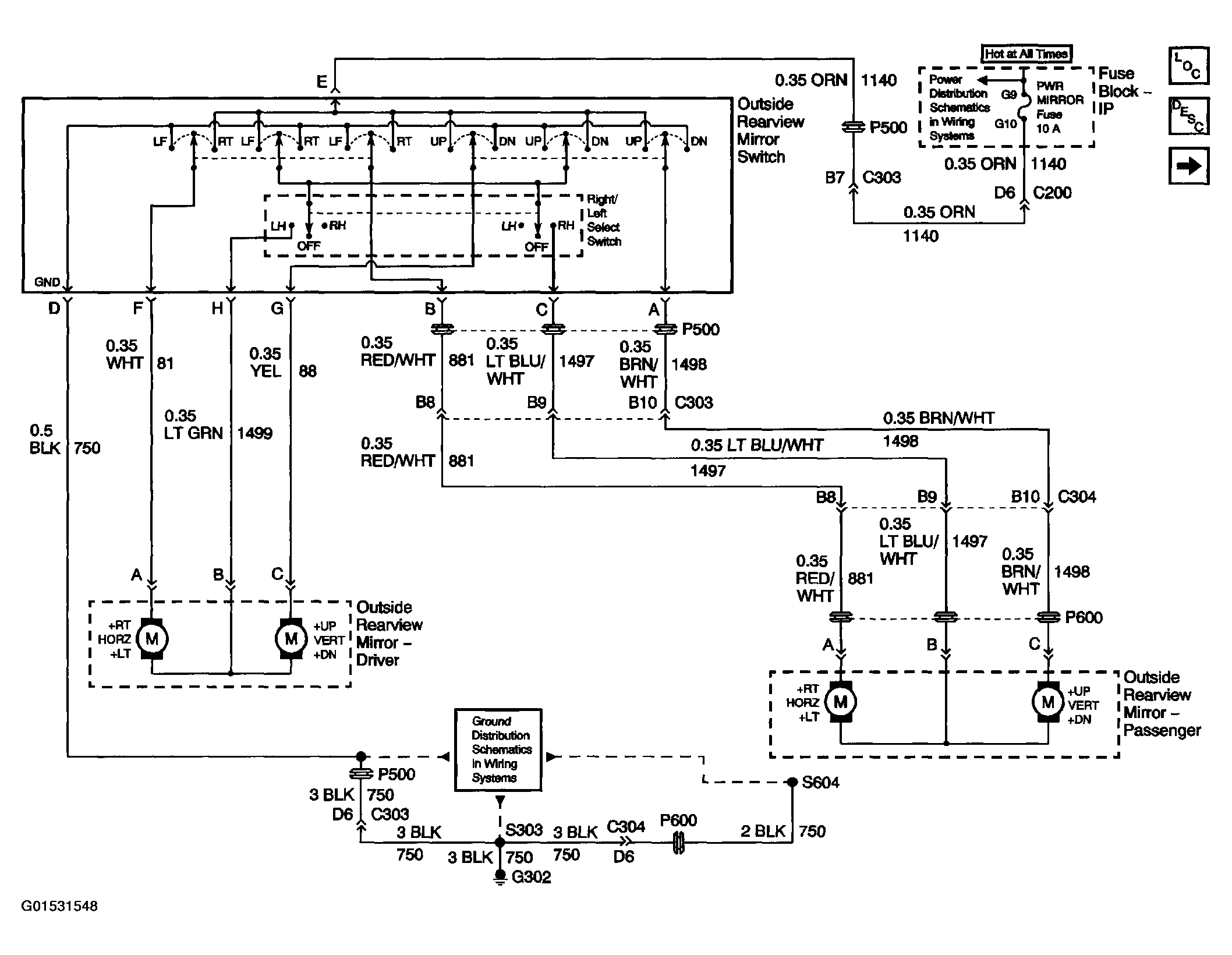

Fig 6: Outside Mirror Schematics (Power Mirrors)
Courtesy of GENERAL MOTORS CORP.

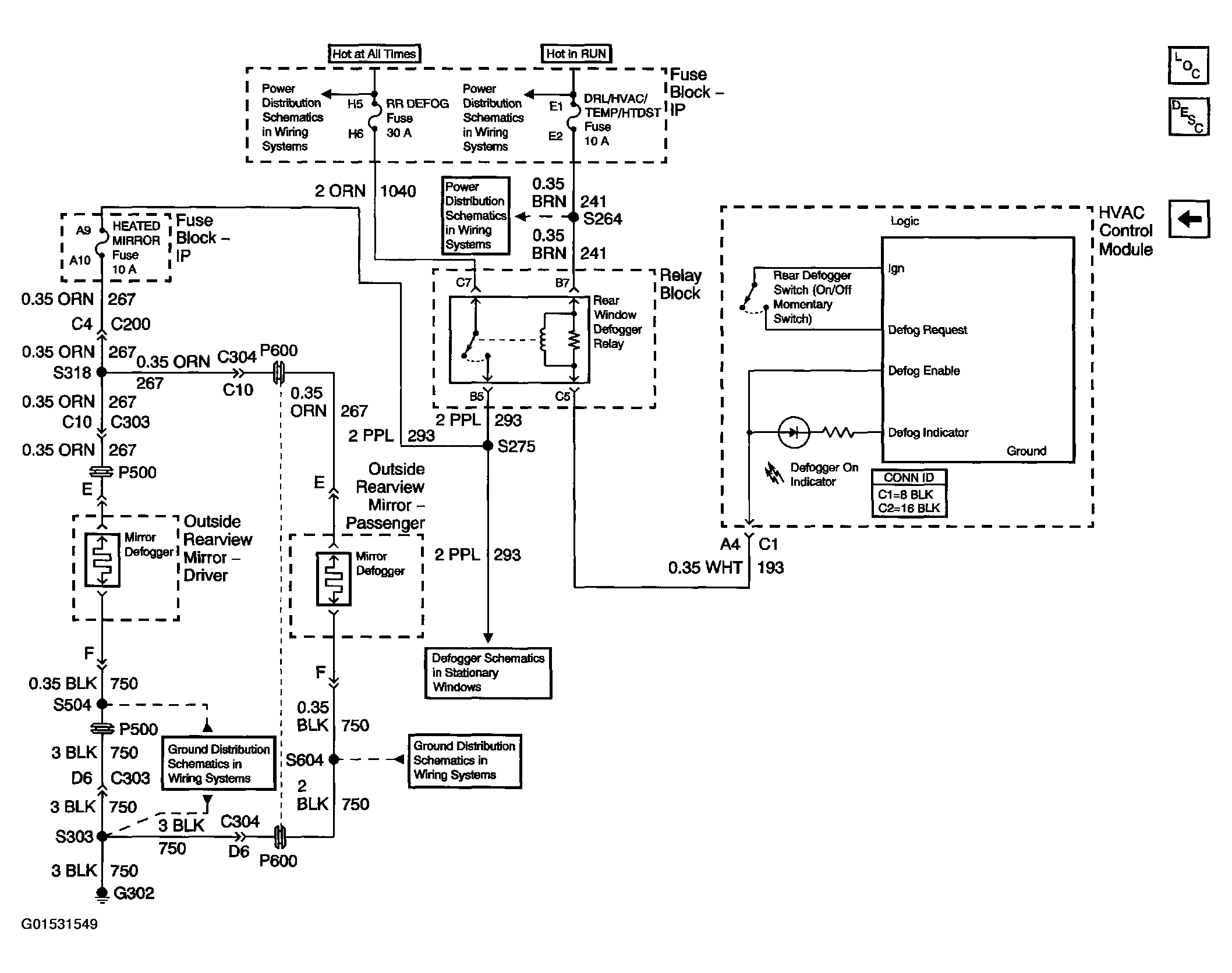

Fig 7: Outside Mirror Schematics (Heated Mirrors)
Courtesy of GENERAL MOTORS CORP.

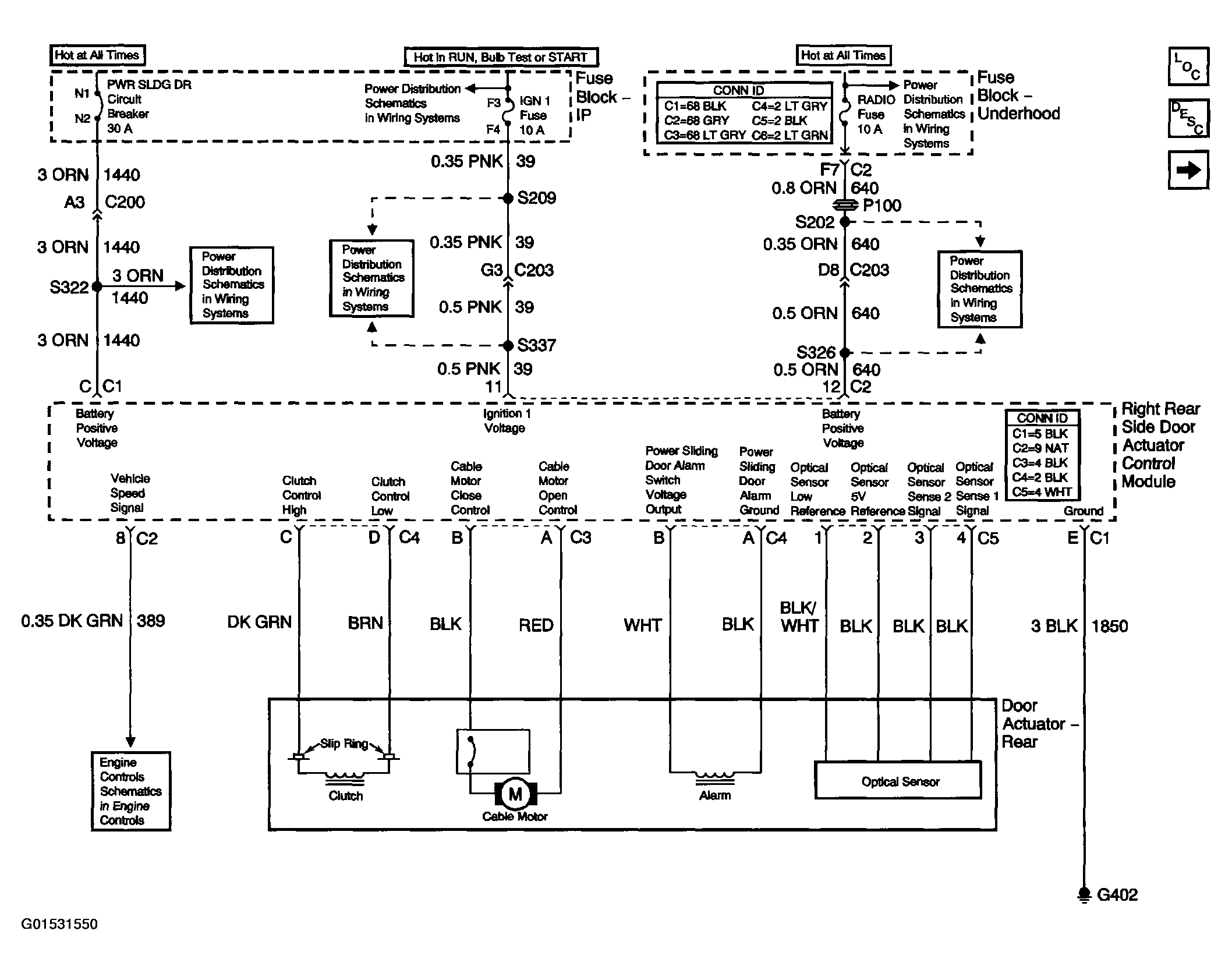

Fig 8: Power Sliding Door (PSD) Schematics (Right Door Power, Ground and PSD Motor)
Courtesy of GENERAL MOTORS CORP.

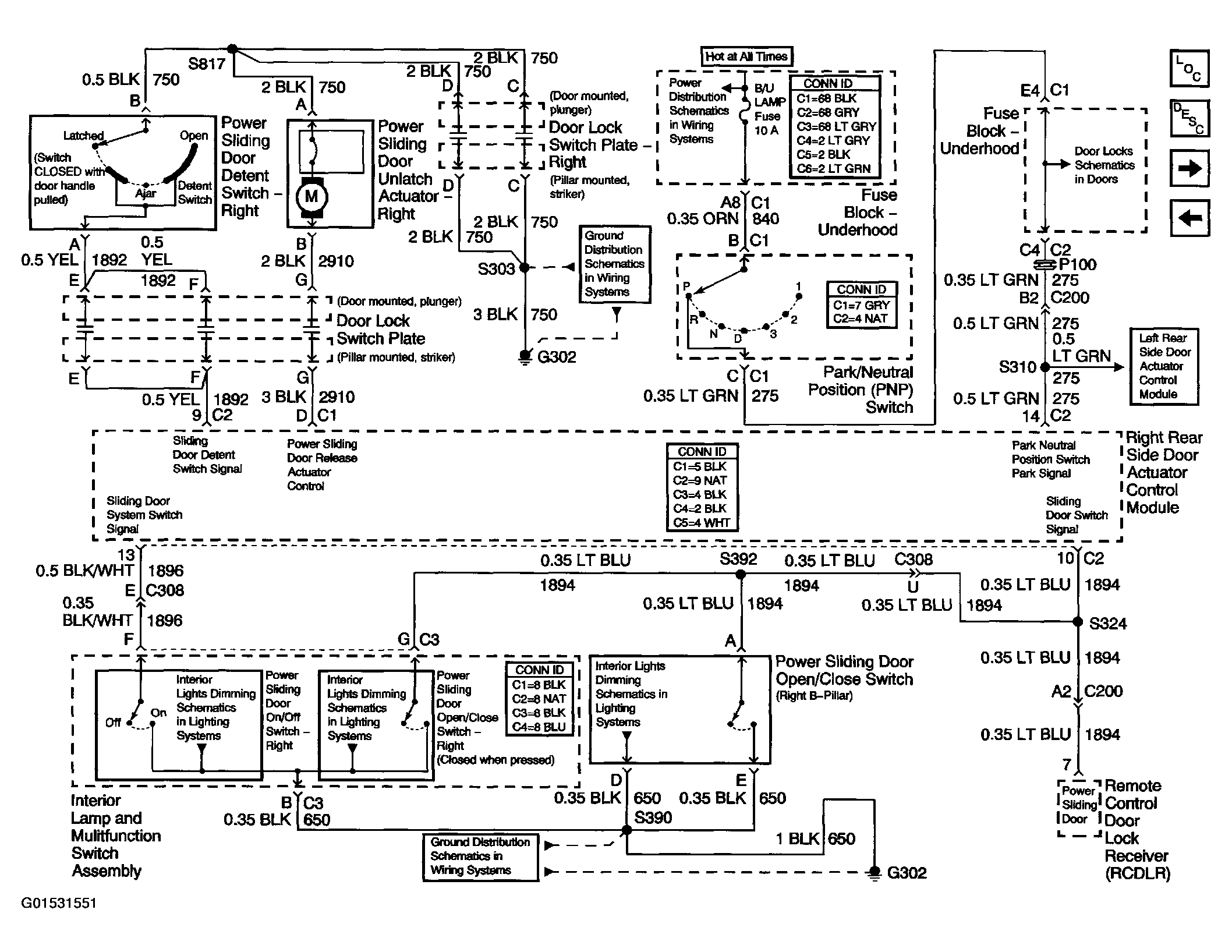

Fig 9: Power Sliding Door (PSD) Schematics (Right Door PSD Switches, Park/Neutral Switch and RCDLR)
Courtesy of GENERAL MOTORS CORP.

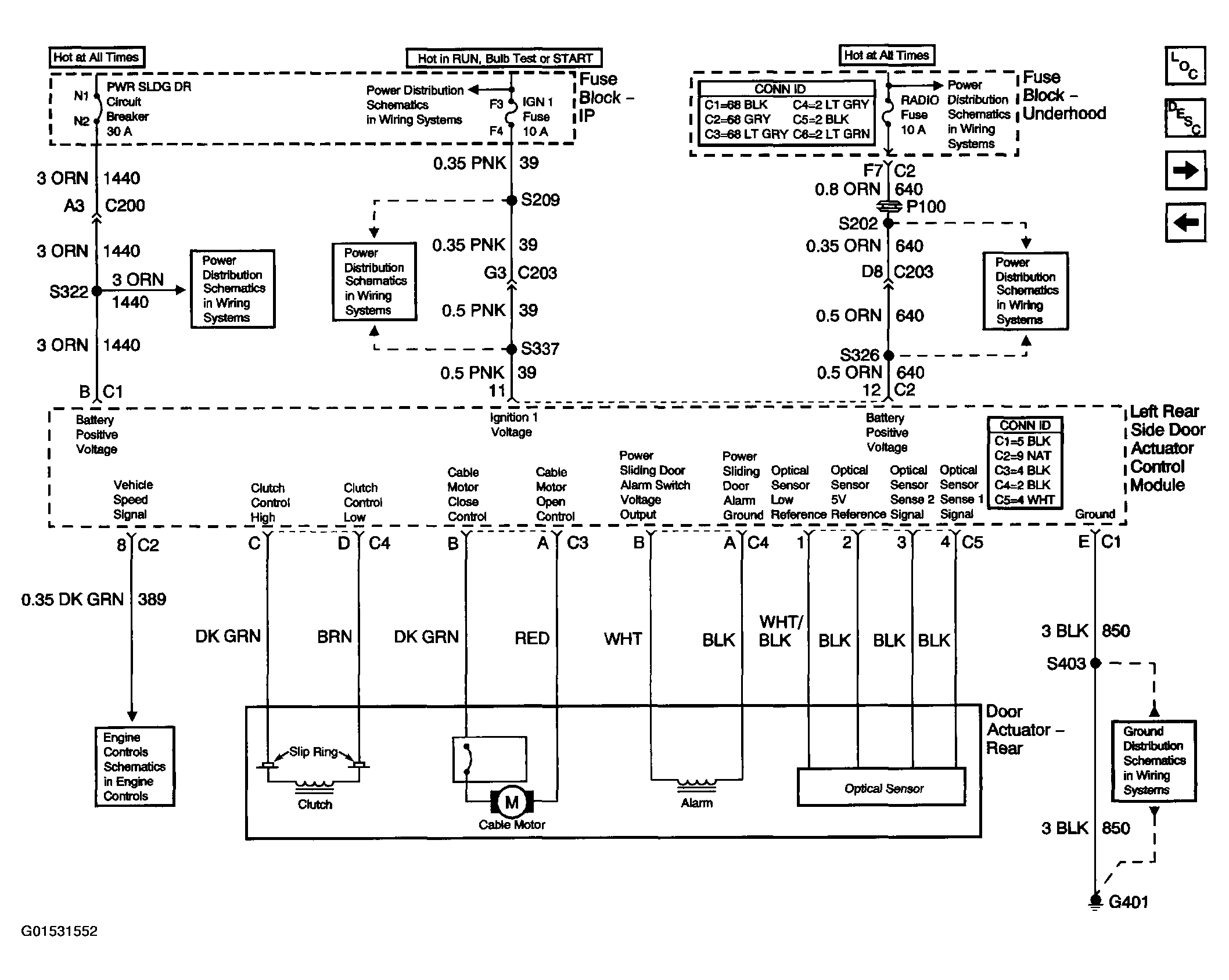

Fig 10: Power Sliding Door (PSD) Schematics (Left Door Power, Ground and PSD Motor)
Courtesy of GENERAL MOTORS CORP.

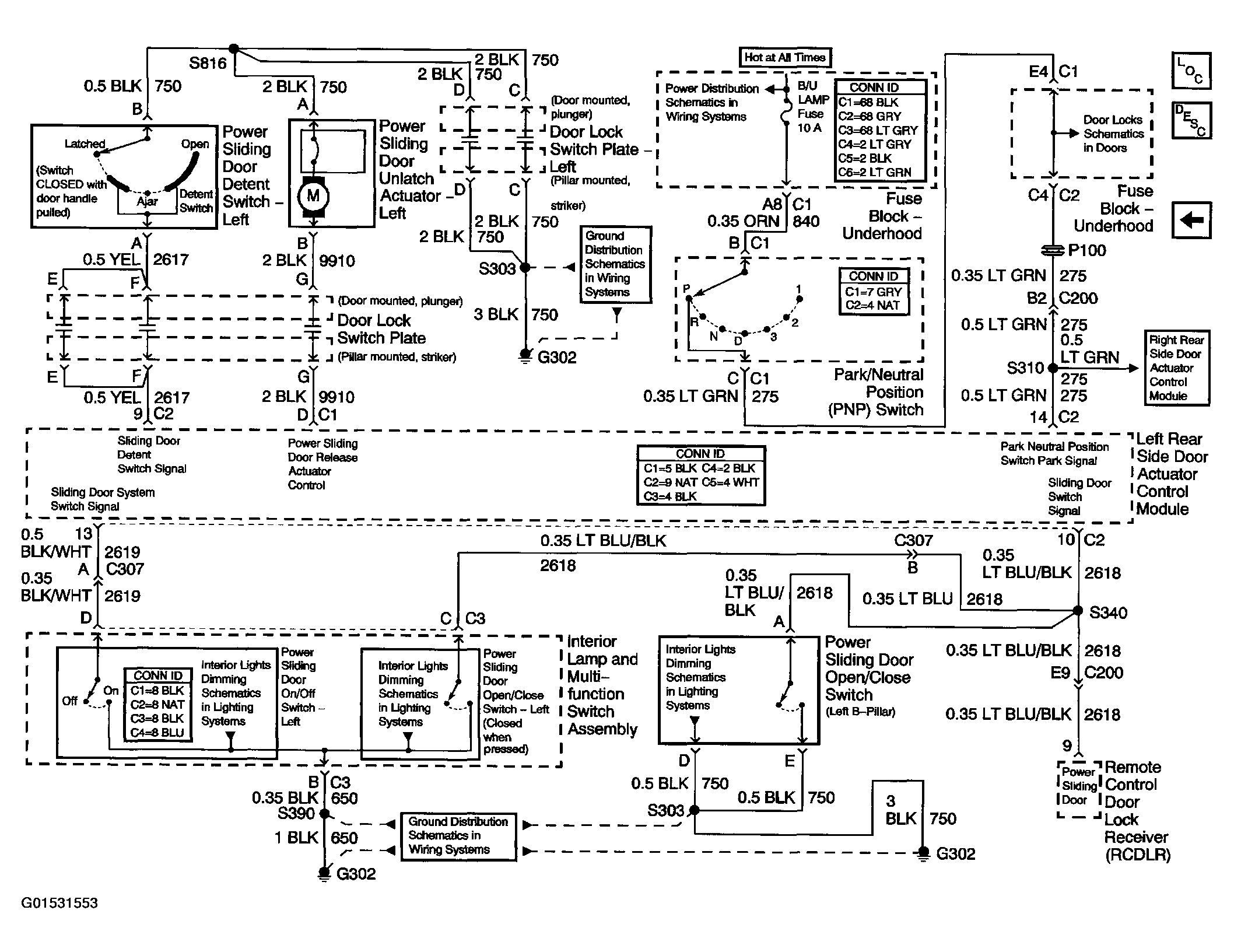

Fig 11: Power Sliding Door (PSD) Schematics (Left Door PSD Switches, Park/Neutral Switch and RCDLR)
