Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the weatherstrip to the door frame.
  2. Install the front door window. Refer to WINDOW REPLACEMENT - FRONT DOOR  .
  3. Install the front door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  4. Install the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .

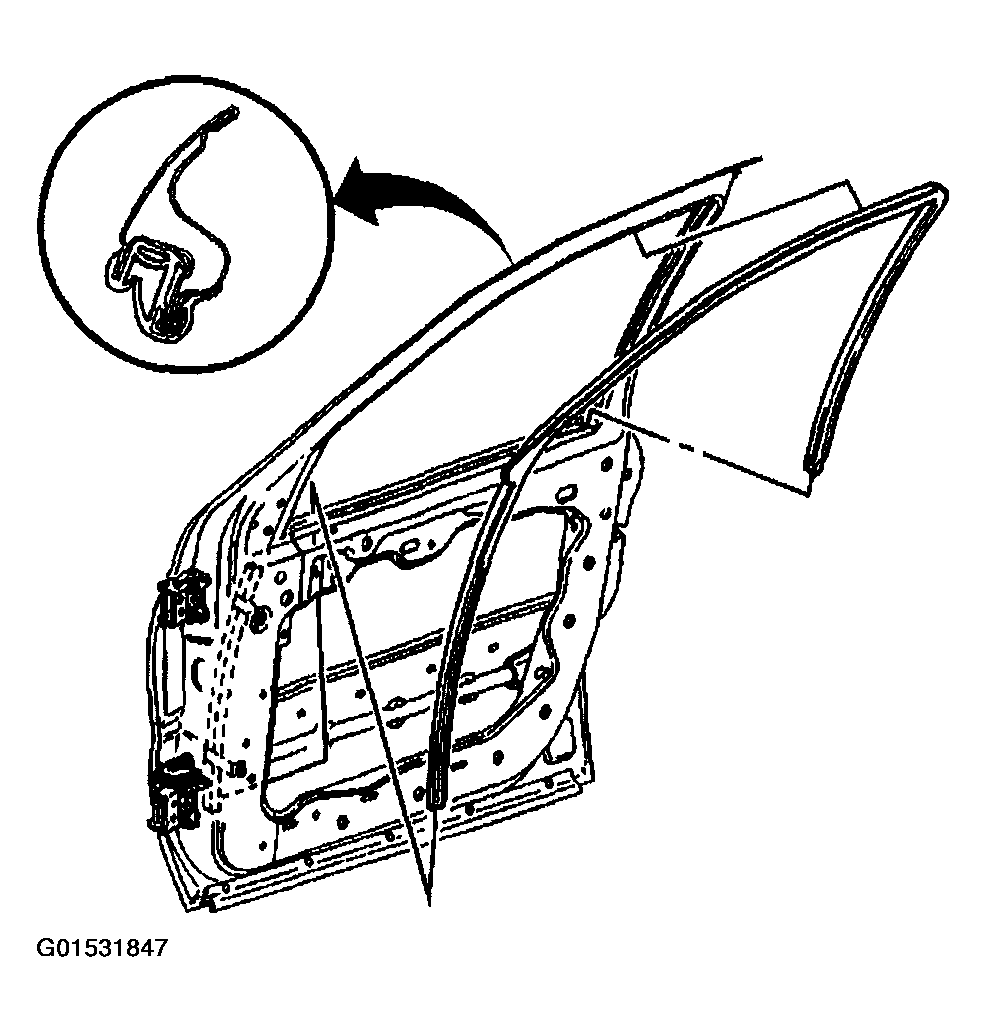

    Fig 1: Installing Weatherstrip To Door Frame
    G01531847Courtesy of GENERAL MOTORS CORP.
