Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sliding door opening weatherstrip from the sliding door pinch-weld flange.
  2. Clean all adhesive from the pinch-weld flange.

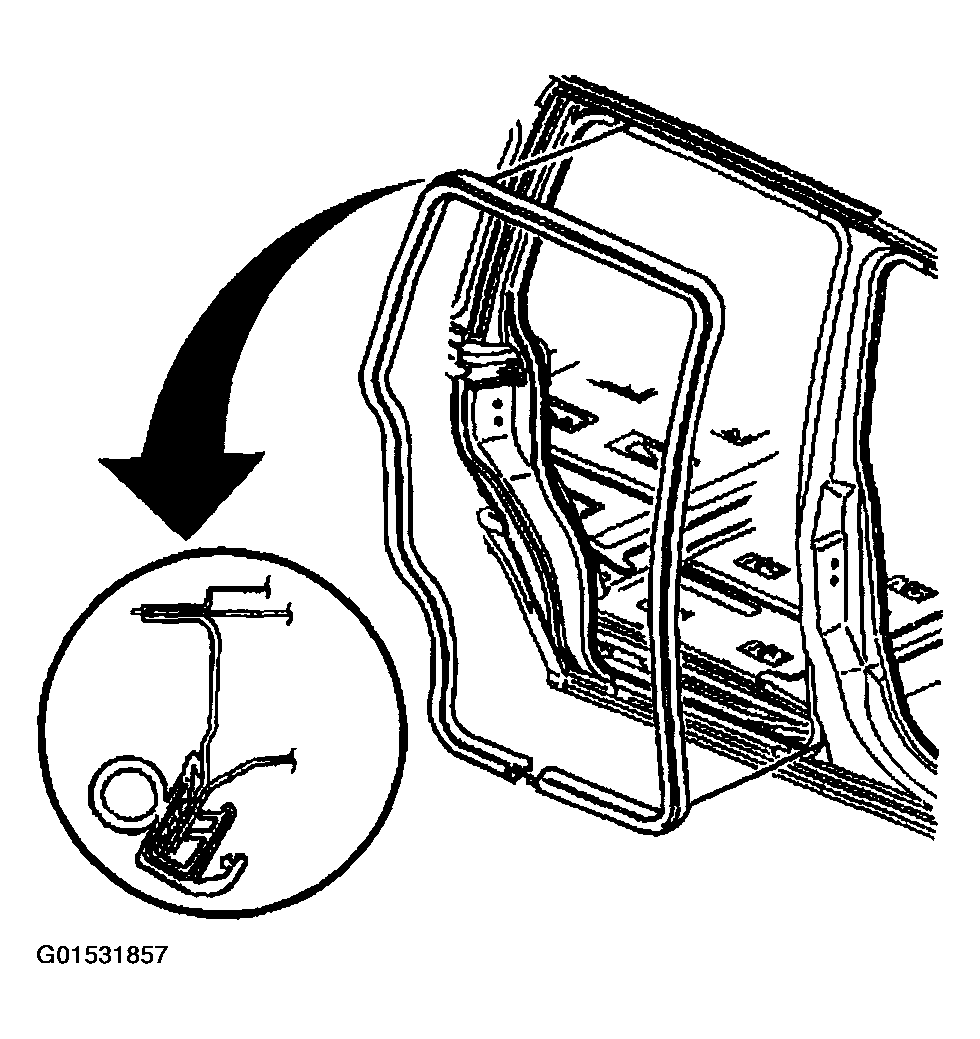

    Fig 1: Removing Sliding Door Opening Weatherstrip From Sliding Door Pinch-Weld Flange
    G01531857Courtesy of GENERAL MOTORS CORP.
