Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sliding door swing out window. Refer to SEALING STRIP REPLACEMENT - FRONT DOOR WINDOW BELT INNER  .
  2. Pull the sliding door window weatherstrip from the pinch-weld flange.
  3. Remove the sliding door window weatherstrip from the sliding door.

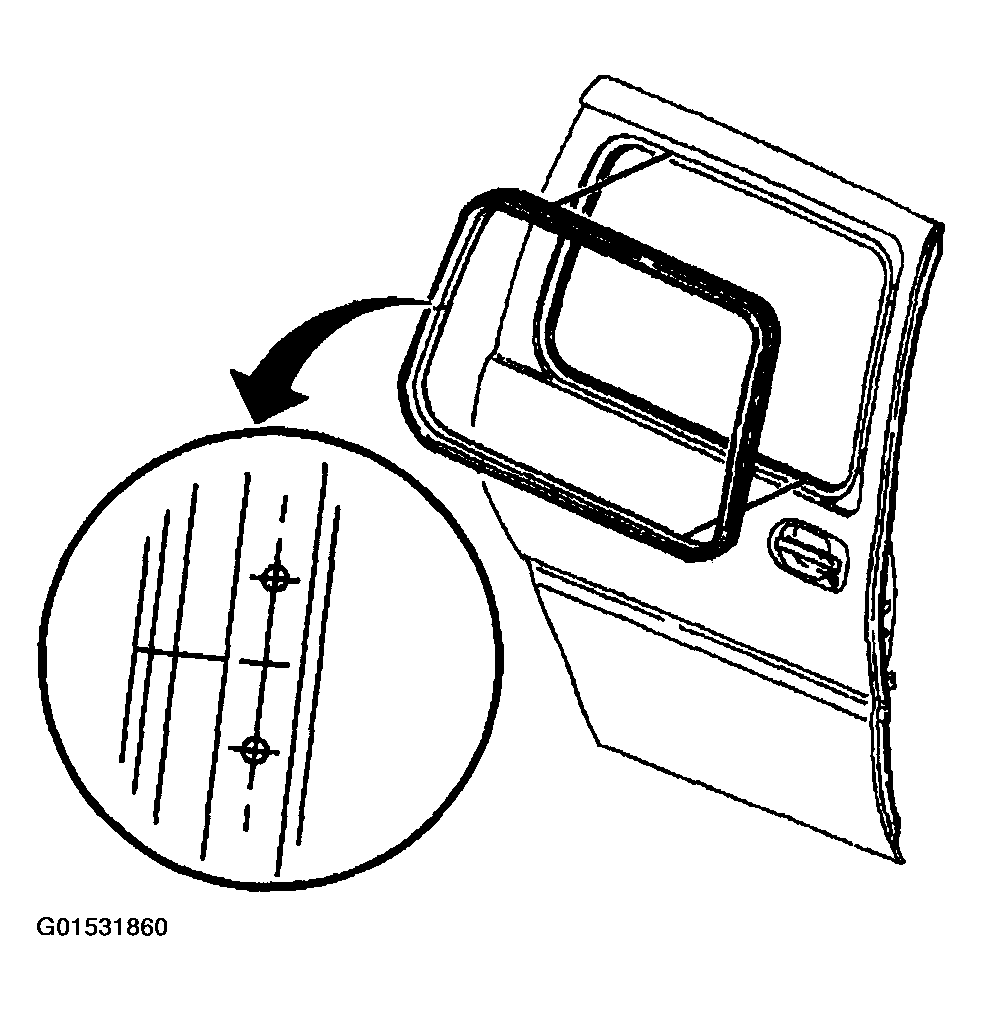

    Fig 1: Removing Sliding Door Window Weatherstrip
    G01531860Courtesy of GENERAL MOTORS CORP.
