Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  2. Remove the front door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  3. Remove the front door window. Refer to WINDOW REPLACEMENT - FRONT DOOR  .
  4. Remove the weatherstrip from the door frame.

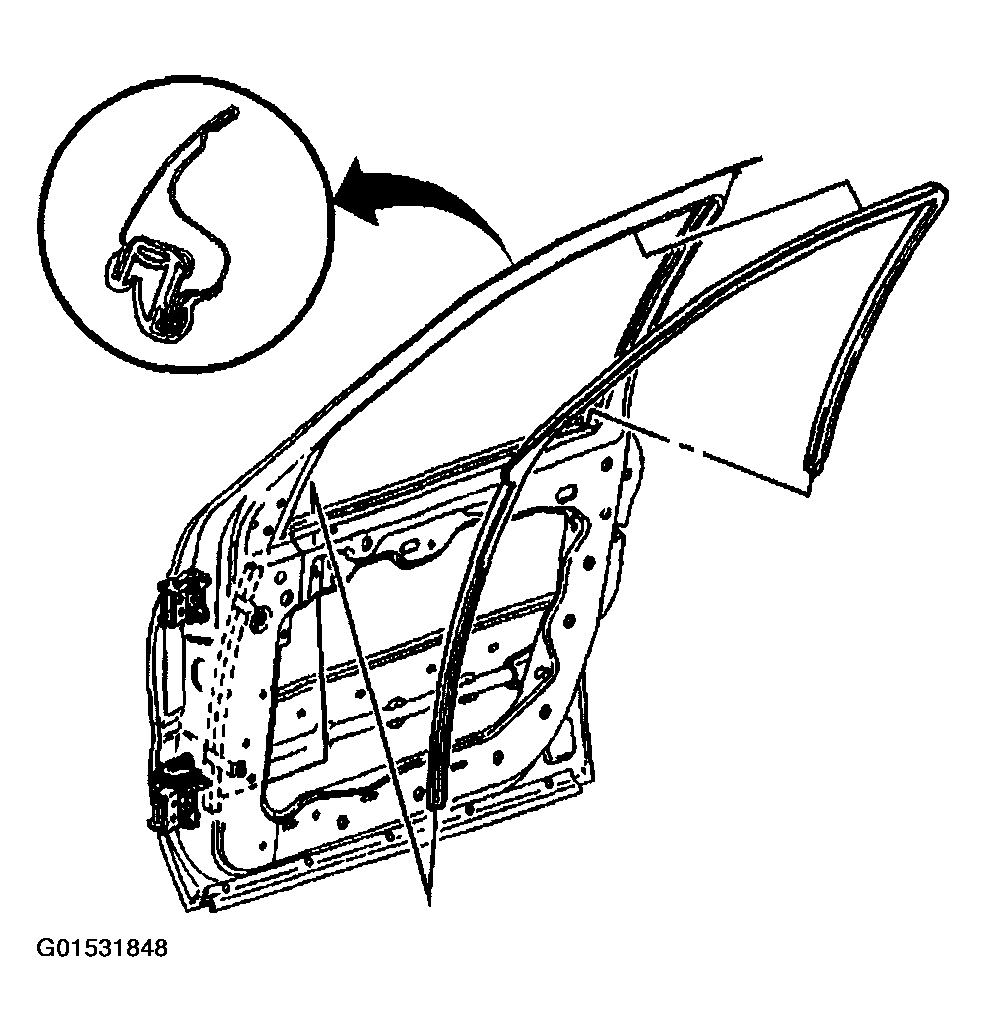

    Fig 1: Removing Weatherstrip From Door Frame
    G01531848Courtesy of GENERAL MOTORS CORP.
